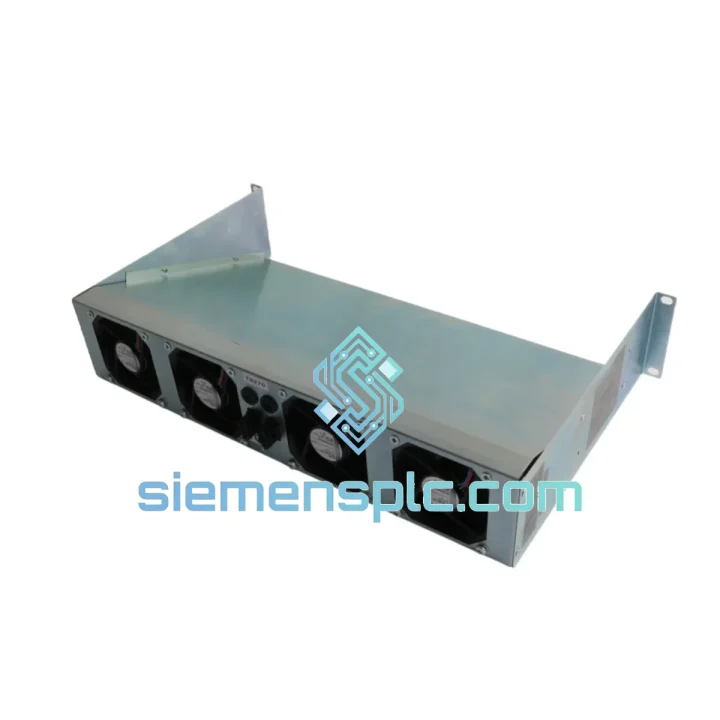

ICS Triplex T8271 TMR Fan Bracket — Stop the Clock on Your Downtime

Every minute a Trusted TMR enclosure runs without proper thermal management is a minute your process safety system is at risk. Overheating in a Triple Modular Redundant controller doesn’t just degrade performance — it triggers diagnostic faults, forces module voting discrepancies, and in worst cases initiates a full system shutdown. The T8271 fan bracket is the mechanical backbone of your enclosure’s cooling stack, and when it fails or goes missing during a cabinet rebuild, you need a replacement on-site before the next shift starts.

We stock the ICS Triplex T8271 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and arrive at your facility within 3–5 business days. No waiting on OEM lead times. No back-and-forth with regional distributors who don’t carry legacy Trusted TMR hardware.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The T8271 is a passive mechanical component, but its failure modes are more consequential than most engineers expect. Here’s what to watch for and how to execute a clean swap:

Common Failure Indicators:

• Fan fault alarms on the TMR controller HMI — If the system logs a cooling fault but the fan motor tests good, the bracket may have cracked mounting points causing fan misalignment and reduced airflow across the heat sink stack.
• Intermittent thermal shutdowns during peak load — A warped or improperly seated T8271 creates micro-gaps between the fan and the chassis duct, reducing effective CFM by 15–30%. This shows up as thermal margin warnings before a hard shutdown.
• Physical inspection during PM cycles — Look for stress fractures at the four corner mounting bosses, corrosion on the steel inserts, and any deformation of the bracket arms that would prevent flush fan seating.

Replacement Procedure (Field-Verified Steps):

• Step 1 — Confirm enclosure revision: Pull the cabinet nameplate. T8271 fits T8100 and T8200 series enclosures. If you’re working on a post-Rockwell acquisition chassis, verify the bracket sub-revision (T8271 vs T8271A) against your enclosure BOM before pulling the old unit.
• Step 2 — De-energize the fan circuit: The Trusted TMR architecture allows hot-standby operation, but fan replacement should be done with the local fan circuit isolated. Confirm with your site safety plan — some facilities require a full enclosure power-down.
• Step 3 — Document fan wiring before disconnection: Photograph the fan connector orientation. The T8271 bracket positions the fan connector at a specific angle; incorrect reinstallation can stress the cable and cause intermittent fan faults post-repair.
• Step 4 — Remove the four M4 mounting screws: Use a calibrated torque screwdriver. The bracket mounting bosses are prone to stripping if over-torqued during reinstallation. Target torque: 1.2–1.5 Nm.
• Step 5 — Seat the new T8271 and verify fan clearance: Before final torque, manually spin the fan blade to confirm zero contact with the bracket arms. Any contact indicates a sub-revision mismatch — do not proceed without resolving.
• Step 6 — Re-energize and monitor: After reinstallation, monitor the TMR diagnostic screen for 15 minutes. Fan fault alarms should clear within 2 minutes of startup. If the alarm persists, check the fan motor connector seating at the bracket-mounted terminal block.

Configuration Notes: The T8271 has no DIP switches, firmware, or addressing requirements — it is a purely mechanical component. However, if your enclosure uses a fan monitoring module (common in T8200 series), verify that the fan speed feedback signal is correctly routed through the bracket’s integrated cable management clips after reinstallation.

Reliability in Harsh Conditions

ICS Triplex designed the Trusted TMR platform for the most demanding process environments on the planet — offshore oil platforms in the North Sea, petrochemical complexes in the Middle East, and LNG terminals in Southeast Asia. The T8271 bracket reflects that design philosophy.

The bracket is manufactured from high-grade steel with a corrosion-resistant coating rated for continuous operation in environments with relative humidity up to 95% non-condensing. The mounting boss geometry is engineered to maintain dimensional stability across a temperature range of -20°C to +70°C, ensuring consistent fan alignment even in enclosures subject to significant thermal cycling during process startups and shutdowns.

Vibration resistance is a particular strength of the T8271 design. The bracket’s mass distribution and mounting geometry are tuned to avoid resonance with the fan motor’s operating frequency range (typically 2,800–3,200 RPM for standard TMR enclosure fans). In field installations on offshore platforms subject to wave-induced structural vibration, the T8271 has demonstrated service lives exceeding 10 years without bracket fatigue failures.

For installations in high-particulate environments — cement plants, mining operations, grain processing — the bracket’s open-frame design allows for periodic cleaning without removal. A compressed air purge every 6 months is sufficient to maintain airflow performance in most industrial environments.

Global Express Logistics

Our Xiamen warehouse operates on a 24-hour dispatch cycle. Here’s exactly how your T8271 gets from our shelf to your site:

• Order Confirmation (Hour 0): You send your PO or WhatsApp confirmation. We pull the T8271 from bonded stock, photograph the part and packaging for your records, and generate the commercial invoice and packing list.
• Export Clearance (Hours 1–4): Our customs broker files the export declaration with Xiamen Customs. HS Code 8538.90 applies to most bracket components — we handle all documentation to ensure clean clearance without delays.
• DHL / FedEx Pickup (Same Day or Next Morning): Parts ship via DHL Express Worldwide or FedEx International Priority depending on destination and urgency. Both services offer door-to-door tracking from Xiamen to your facility.
• Transit Times (Typical): Southeast Asia: 2–3 business days. Middle East / Europe: 3–5 business days. Americas: 4–6 business days. Remote offshore locations: add 1–2 days for final-mile logistics.
• Import Clearance Support: We provide all required documentation — commercial invoice, packing list, Certificate of Conformance, and country of origin declaration — to support smooth import clearance at your end. For destinations with specific import requirements (e.g., Saudi Arabia, India), contact us in advance and we’ll prepare the additional documentation set.
• Tracking & Updates: You receive the AWB number within 2 hours of dispatch. Our team monitors shipment status and proactively contacts you if any customs hold or routing delay occurs.
