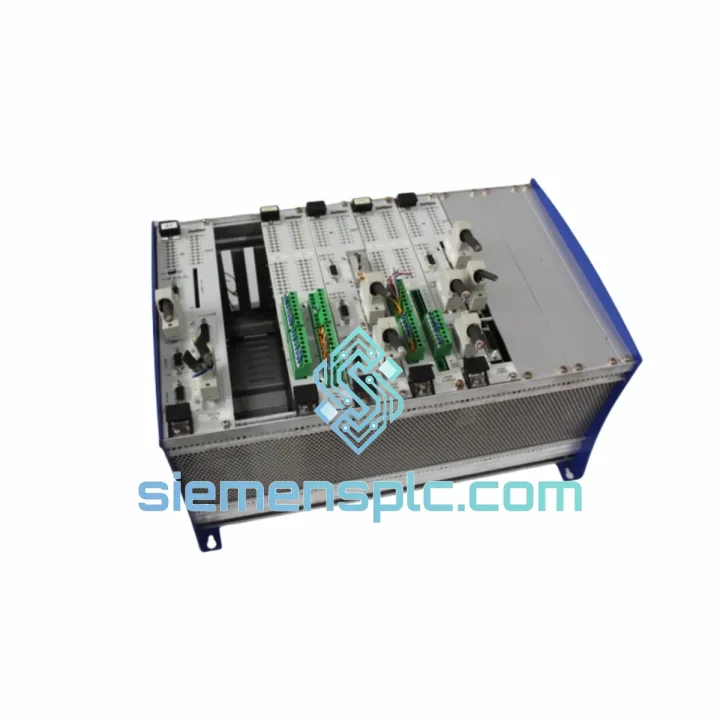

JETTER JX6-BASIS-8 PLC Backplane – JX6 Series

JETTER JX6-BASIS-8: 8-Slot Backplane Rack — Structural Foundation of the JX6 Modular Control Architecture

The JX6-BASIS-8 is the 8-slot card rack (backplane) for the JETTER JX6 modular programmable controller platform. Within any JX6 control station, the backplane is not a passive mechanical carrier — it is the active electrical and logical substrate through which all module-to-module communication, power distribution, and address arbitration occur. Without a correctly specified backplane, the deterministic behavior of the entire control loop is compromised. The JX6-BASIS-8 provides eight fully addressable module slots, each connected via the JX6 internal system bus, enabling the CPU module to poll I/O data, manage interrupt-driven events, and execute cyclic scan tasks with consistent timing integrity.

In a typical JX6 station, the CPU module occupies slot 0 (leftmost position), while slots 1 through 7 are available for digital I/O, analog I/O, communication interface, and specialty function modules. The backplane’s internal bus handles both power rail distribution (24 VDC logic supply and 5 VDC backplane bus) and the parallel data/address bus used for module register access. This architecture eliminates the need for external inter-module wiring, reducing installation labor and eliminating a significant source of field-induced noise coupling.

The JX6-BASIS-8 is designed for DIN-rail or panel mounting, with a robust aluminum and engineering-grade thermoplastic housing rated for continuous operation in industrial environments. The mechanical slot guides incorporate positive-locking module retention, preventing vibration-induced partial ejection — a failure mode that causes intermittent faults in high-vibration applications such as press lines, compressor rooms, and mobile machinery enclosures.

From a system architecture perspective, the 8-slot configuration represents the maximum single-rack I/O density for the JX6 platform. Engineers designing systems that require more than seven I/O or communication modules must implement multi-rack expansion via JETTER’s rack expansion interface, using the JX6-BASIS-8 as both the master rack and the expansion rack. The backplane’s bus termination is handled internally, requiring no external termination resistors — a detail that simplifies commissioning and eliminates a common source of bus reflection errors in field installations.

For applications where control system availability is critical, the JX6-BASIS-8 supports hot-swap module replacement when used with compatible JX6 CPU firmware versions that enable online module substitution. This capability allows maintenance personnel to replace a failed I/O module without de-energizing the rack, maintaining process continuity during corrective maintenance windows.

The unit weighs 1,600 g, reflecting the substantial aluminum extrusion used for the chassis — a deliberate thermal mass design choice that passively absorbs and dissipates heat generated by densely populated module configurations, reducing reliance on forced-air cooling in moderate ambient temperature environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The JX6-BASIS-8 backplane implements a shared parallel bus topology with slot-addressed module selection. Each of the eight slots is assigned a fixed hardware address decoded by the backplane’s address multiplexer logic. When the CPU module initiates a read or write cycle, it places the target slot address on the address bus lines, the backplane’s address decoder asserts the chip-select line for the corresponding slot, and the data transfer proceeds over the shared 8-bit or 16-bit data bus (depending on module type). This deterministic address-decode mechanism ensures that bus access latency is fixed and predictable — a property that is essential for maintaining consistent I/O scan cycle times in time-critical control loops.

The backplane’s power distribution architecture separates the 24 VDC field-side supply from the 5 VDC logic bus. This galvanic separation at the power rail level means that transients on the 24 VDC supply — common in environments with inductive loads such as solenoid valves and motor contactors — do not propagate onto the 5 VDC logic rail. Individual module slots include local decoupling capacitors on both supply rails, providing high-frequency noise suppression at the point of consumption rather than relying solely on centralized filtering.

The mechanical slot guides are machined to tight tolerances, ensuring that module edge connectors engage fully and symmetrically with the backplane’s female connectors. Partial engagement — a failure mode caused by loose tolerances or vibration — results in intermittent contact resistance on signal lines, which manifests as sporadic I/O read errors that are notoriously difficult to diagnose in the field. The JX6-BASIS-8’s positive-locking retention clips address this by applying a constant normal force to the module face, maintaining connector engagement under sustained vibration loads up to the IEC 60068-2-6 specification.

The backplane’s ground plane is a continuous copper pour connected to the DIN rail mounting points, providing a low-impedance reference for all module ground connections. This star-ground topology minimizes ground loop currents between modules — a common source of common-mode noise on analog input channels in mixed digital/analog rack configurations.

System Integration Benefits

• Fixed-latency bus access: Hardware address decoding ensures that CPU-to-module data transfers complete in a deterministic number of bus cycles, supporting consistent PLC scan times regardless of module population.
• Separated power rails: Independent 24 VDC and 5 VDC distribution prevents field-side transients from corrupting logic-level signals, reducing nuisance faults in electrically noisy environments.
• Integrated bus termination: No external termination components required; eliminates a commissioning step and removes a potential source of bus reflection errors.
• Hot-swap module support: Compatible CPU firmware versions allow online module replacement without rack power-down, supporting high-availability process control applications.
• Positive-locking module retention: Mechanical clips maintain connector engagement under IEC 60068-2-6 vibration loads, preventing intermittent contact faults in mobile or high-vibration installations.
• Continuous ground plane: Low-impedance star-ground topology minimizes inter-module ground loop currents, preserving analog input accuracy in mixed-signal rack configurations.
• Passive thermal management: Aluminum extrusion chassis provides thermal mass that absorbs module heat loads, reducing peak junction temperatures and extending module service life in moderate ambient conditions.
• Full JX6 module compatibility: Accepts all JX6 series CPU, digital I/O, analog I/O, PROFIBUS, CANopen, and Ethernet communication modules without hardware modification.
• Scalable expansion: Serves as both master rack and expansion rack in multi-rack JX6 configurations, providing a consistent mechanical and electrical interface across all rack positions.
• Reduced field wiring: Backplane bus eliminates inter-module signal wiring, reducing installation labor, cable tray fill, and potential wiring error points.

Quality Assurance & Global Logistics

Every JX6-BASIS-8 unit supplied by siemensplc.com is sourced directly from verified JETTER AG distribution channels. Each unit undergoes a structured incoming inspection protocol: housing integrity check, connector pin count and alignment verification, label and serial number authentication against JETTER factory records, and a bench-level power-on test confirming backplane bus continuity across all eight slots. Units that do not pass all inspection criteria are quarantined and returned — no exceptions.

All units are shipped from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, UPS Worldwide Express, and EMS international postal services. In-stock orders are typically dispatched within 1–2 business days of payment confirmation. For time-critical project requirements, same-day dispatch is available on request for orders confirmed before 14:00 CST.

Export documentation — including commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is prepared for every shipment. Customs clearance support and export licensing assistance are available for destinations with specific import control requirements. Anti-static packaging with foam-lined outer cartons is standard for all backplane shipments, protecting connector pins and housing surfaces during transit.

A 12-month warranty covers all units against manufacturing defects from the date of shipment. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from stock where available to minimize customer downtime.
