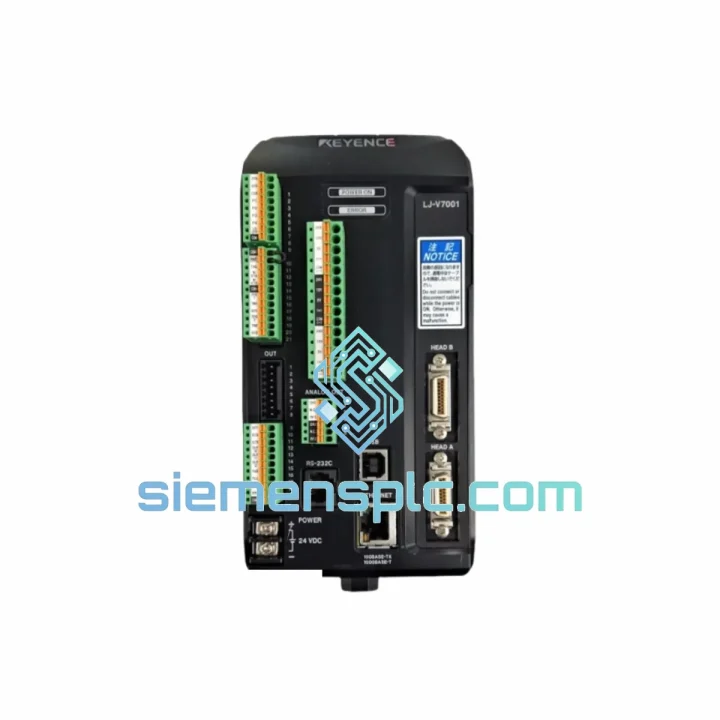

Keyence LJ-V7001 Laser Profiler Controller – LJ-V7000 Series

Keyence LJ-V7001: High-Speed 2D Laser Profiler Controller for Deterministic Inline Measurement

The Keyence LJ-V7001 is the dedicated controller unit of the LJ-V7000 Series 2D/3D laser displacement profiler platform. Within a closed-loop measurement architecture, this controller functions as the central processing node: it receives raw laser stripe data from paired LJ-V7000 series sensor heads via a proprietary high-bandwidth interface, executes real-time profile extraction at up to 64,000 profiles per second, applies configurable measurement algorithms, and outputs structured dimensional data to upstream PLCs or SCADA systems through multiple industrial fieldbus protocols. Its role is not peripheral — without the LJ-V7001, the sensor head produces no usable output. The controller governs sampling cadence, trigger synchronization, measurement program storage, and all communication handshaking with the host control system.

In high-throughput production lines — automotive body assembly, semiconductor wafer handling, battery electrode coating — the LJ-V7001 provides the deterministic timing backbone that allows profile data to be correlated with encoder position signals, enabling accurate 3D surface reconstruction from sequential 2D cross-sections. Its internal FPGA-based processing pipeline ensures that measurement latency remains fixed regardless of profile complexity, a critical requirement for real-time reject decisions at line speeds exceeding 1,000 mm/s.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The LJ-V7001’s internal architecture separates three distinct processing stages: optical data acquisition, profile computation, and communication arbitration. The sensor head interface operates over a dedicated coaxial link that transfers raw CMOS line-scan data at rates consistent with the 64,000 profiles/sec ceiling. This link is electrically isolated from the fieldbus circuitry, preventing ground loop interference from propagating into the measurement data path — a design decision that directly addresses the EMC challenges common in servo-drive-dense environments.

Profile extraction is handled by an onboard FPGA rather than a general-purpose DSP. The FPGA implements a fixed-latency peak-detection algorithm on the laser stripe intensity distribution, computing the centroid position of the reflected beam with sub-pixel resolution. Because the computation pipeline is implemented in hardware logic rather than software, processing time per profile is deterministic: it does not vary with measurement program complexity or the number of active measurement items. This is a fundamental advantage over PC-based vision systems where OS scheduling jitter can introduce variable latency.

The controller’s trigger input circuit accepts encoder pulse trains directly, with a maximum input frequency of 500 kHz. This allows the LJ-V7001 to synchronize profile acquisition to conveyor encoder signals without an intermediate PLC trigger relay, reducing system-level timing uncertainty to under 10 µs. The trigger circuit is optically isolated at the input stage, rated for common-mode voltage transients up to 500 V peak, consistent with IEC 61000-4-4 Level 3 EFT immunity requirements.

For multi-head configurations, the LJ-V7001 supports synchronous operation with up to four sensor heads through a dedicated sync cable, ensuring that all heads capture profiles at identical time instants. This eliminates inter-head timing skew that would otherwise corrupt 3D reconstruction in wide-field applications such as rail surface inspection or large panel flatness measurement.

The communication stack implements three fieldbus protocols simultaneously without requiring a separate gateway module. EtherCAT operation uses the LJ-V7001 as an EtherCAT slave device with a fixed cycle time as low as 1 ms, making it compatible with Beckhoff TwinCAT and Siemens S7-1500 TM NPU motion controllers. PROFINET IRT (Isochronous Real-Time) mode is supported for applications requiring sub-millisecond cycle synchronization with Siemens S7-1500 CPUs.

System Integration Benefits

• Native multi-protocol fieldbus: EtherNet/IP, PROFINET, and EtherCAT are all resident in the controller firmware — no external gateway hardware is required, reducing panel space and eliminating an additional failure point in the communication chain.
• Encoder-synchronized acquisition: Direct encoder input at up to 500 kHz allows profile triggering to be locked to conveyor position, enabling accurate 3D surface reconstruction without PLC-mediated trigger relay logic.
• Fixed-latency FPGA processing: Deterministic profile computation time (independent of measurement program complexity) allows the host PLC to implement fixed-cycle reject logic without accommodating variable measurement delays.
• Multi-head synchronization: Hardware sync across up to four sensor heads eliminates inter-head timing skew, enabling coherent wide-field 3D measurement without post-processing alignment correction.
• Built-in 3.5-inch LCD: On-controller display provides live profile visualization and measurement value readout without requiring a connected PC, reducing commissioning time and enabling field diagnostics without a laptop.
• Onboard measurement program storage: Up to 128 measurement programs can be stored internally and switched via digital input or fieldbus command, supporting multi-product lines without controller replacement or re-parameterization downtime.
• Comprehensive diagnostic transparency: The controller exposes alarm codes, signal quality indices, and communication status registers over all fieldbus interfaces, allowing the host SCADA to log measurement system health alongside process data without additional instrumentation.
• LJ-Navigator2 software integration: The free Windows-based configuration tool provides offline program development, live waveform capture, and batch parameter upload/download, reducing on-line configuration time during changeovers.
• Analog output for legacy PLC integration: A 4–20 mA or 0–10 V analog output channel allows the LJ-V7001 to interface with older PLC analog input modules that lack Ethernet fieldbus capability, protecting existing control system investments.
• IEC 61000-4 EMC compliance: Optical isolation on trigger inputs and fieldbus ports, combined with shielded sensor head cables, ensures measurement integrity in environments with variable-frequency drives and high-current switching equipment operating in proximity.

Quality Assurance & Global Logistics

Every LJ-V7001 unit supplied through siemensplc.com is sourced as genuine Keyence original hardware. Units are procured through verified supply channels with full traceability documentation, including manufacturer date codes and serial number records. Pre-shipment inspection covers visual integrity, label authenticity, and where stock condition permits, a functional power-on verification to confirm display initialization and communication port response.

Shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to international express carriers including DHL, FedEx, and UPS. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for all international shipments. For orders requiring expedited customs clearance, HS code 9031.49 (optical measuring instruments) is applied with accurate declared values to minimize clearance delays. Typical transit times: 3–5 business days to Southeast Asia, 5–7 business days to Europe and North America, 2–3 business days to Japan and South Korea.

A 12-month warranty is provided from the date of shipment. Warranty coverage addresses manufacturing defects and functional failures under normal operating conditions as defined in the Keyence LJ-V7001 user manual. Warranty claims are processed with advance replacement where stock availability permits, minimizing production downtime for customers with critical measurement applications.
