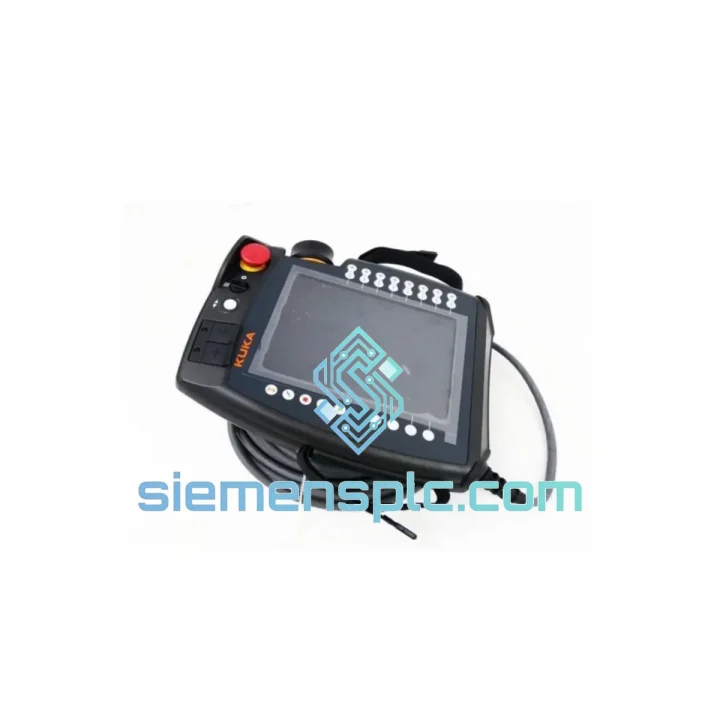

KUKA 00-291-556 Teach Pendant

KUKA 00-291-556 KCP Teach Pendant — Stop the Clock on Your Downtime

A failed teach pendant doesn’t just pause a robot — it shuts down an entire production cell. Every hour your KRC2 or KRC4 controller sits dark, you’re bleeding money: idle labor, missed delivery windows, penalty clauses. The KUKA 00-291-556 KCP (KUKA Control Panel) is the exact OEM pendant your system needs, and we ship it from Xiamen within 24 hours of order confirmation. No waiting on factory lead times. No substitutes. No excuses.

We’ve handled enough emergency callouts to know that when a plant manager is standing over your shoulder, you don’t have time for “estimated 4–6 weeks.” That’s why we stock this unit. That’s why we answer the phone at midnight. Get your line back up — fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, these are the failure patterns I see most often with the KCP on KRC2/KRC4 systems — and what to watch for when you swap in a 00-291-556:

1. Fault Code 1008 / 1009 — KCP Communication Loss
This is the most common reason a pendant gets condemned. Before you write off the pendant, check the KCP cable connector at the controller cabinet first. Pins 7 and 8 (CAN-H / CAN-L) corrode in humid environments. Clean with contact spray, reseat, and retest. If the fault persists after cable swap, the pendant’s internal CAN transceiver has failed — the 00-291-556 is your direct replacement.

2. Fault Code 2056 — Enabling Switch Fault
The 3-position enabling switch degrades after high-cycle use (typically 500,000+ actuations in high-throughput cells). The KRC controller logs this as a safety channel discrepancy. There is no field repair for this — replace the pendant. When installing the 00-291-556, verify the enabling switch test passes in the KUKA startup sequence before releasing the robot to AUTO mode.

3. Touchscreen Unresponsive / Erratic Input
Usually caused by a failed digitizer layer, not the LCD itself. Common in foundry and press environments where vibration is constant. On KRC4 systems, check the smartHMI software version after pendant swap — if the replacement unit ships with a different KSS (KUKA System Software) version than your controller, you may see a version mismatch warning. Do not dismiss this. Navigate to: Main Menu → Help → Info and confirm KSS version compatibility. Mismatched versions can cause restricted functionality in T1/T2 modes.

4. Replacement Procedure — Key Steps

• Power down the KRC controller fully (main switch OFF, wait 30 seconds for capacitors to discharge).
• Disconnect the KCP cable at the controller-side connector — twist counterclockwise to unlock.
• Connect the 00-291-556 and secure the locking ring finger-tight plus 1/4 turn.
• Power up the controller. The KCP will perform a self-test sequence — allow 60–90 seconds for full boot.
• Confirm E-stop function: press E-stop on the new pendant, verify fault 1 appears on the controller display, then release and acknowledge.
• Confirm enabling switch function in T1 mode before any motion command.
• If KSS prompts a pendant configuration update, accept and allow the controller to write pendant parameters — this is normal and takes 2–3 minutes.

5. KRC2-Specific Note: On older KRC2 cabinets (pre-2008), verify the KCP interface board firmware is at minimum revision 3.x. A 00-291-556 installed on a KRC2 with firmware below 2.8 may exhibit intermittent display corruption. Firmware update requires KUKA WorkVisual or direct KRC2 service access.

Reliability in Harsh Conditions

Industrial robots don’t live in clean rooms. The KUKA 00-291-556 is engineered for the environments where production actually happens — and we’ve seen it hold up in conditions that destroy lesser equipment.

The pendant housing is rated IP54, meaning it handles dust ingress and water splashing from any direction. In automotive body shops, where weld spatter and coolant mist are constant, this rating is the minimum acceptable threshold. The polycarbonate housing resists impact from drops up to 1 meter — relevant when a pendant gets knocked off a hook during a shift change.

Vibration tolerance is validated to IEC 60068-2-6: 10–150 Hz, 1g continuous. In press-tending and stamping applications, where the floor vibrates at 8–12 Hz from tonnage presses, pendants with inferior PCB mounting fail within months. The 00-291-556’s internal board is conformal-coated and mechanically isolated from the housing to absorb this.

Operating temperature range is 0°C to +45°C ambient, with storage down to -25°C. In foundry environments where furnace radiant heat pushes ambient temperatures above 40°C, we recommend shading the pendant storage hook — the LCD backlight degrades faster above 42°C sustained. This is a thermal management issue, not a product defect.

Humidity tolerance: 10–95% RH non-condensing. In coastal manufacturing facilities (common in Southeast Asia and southern China), condensation on cold mornings is a real failure driver. If your facility has this issue, specify a desiccant pack in the pendant storage enclosure — a $2 fix that extends pendant life by years.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), one of China’s primary cargo hubs with direct freighter connections to Frankfurt, Los Angeles, Dubai, and Singapore. This geography is not accidental — it’s why we can promise what other suppliers can’t.

Standard Express (DHL / FedEx Priority): Order confirmed before 14:00 CST → same-day dispatch → delivery in 3–5 business days to Europe, North America, and the Middle East. 2–3 days to Southeast Asia. Full tracking from our warehouse door to your receiving dock.

Economy Express (FedEx International Economy / DHL Express Worldwide): 5–8 business days. Suitable for planned maintenance stock replenishment where urgency is lower.

Customs Documentation: Every shipment includes a commercial invoice with correct HS code (8537.10 for control panels/pendants), packing list, and country of origin declaration. For EU importers, we provide EUR.1 movement certificates on request. For US importers, we flag HTS classification and can provide a binding ruling reference if your customs broker requires it.

Dangerous Goods: The 00-291-556 contains a lithium coin cell (CR2032, <1g lithium content). This classifies as UN3091 / PI970 — exempt quantity. All our shipping staff are IATA DG-trained and documentation is pre-prepared. No delays at origin customs.

Emergency Freight: For genuine production-down situations, contact us via WhatsApp for same-day courier booking. We have standing accounts with DHL On-Demand Delivery and FedEx SameDay City for intra-China legs when needed.
