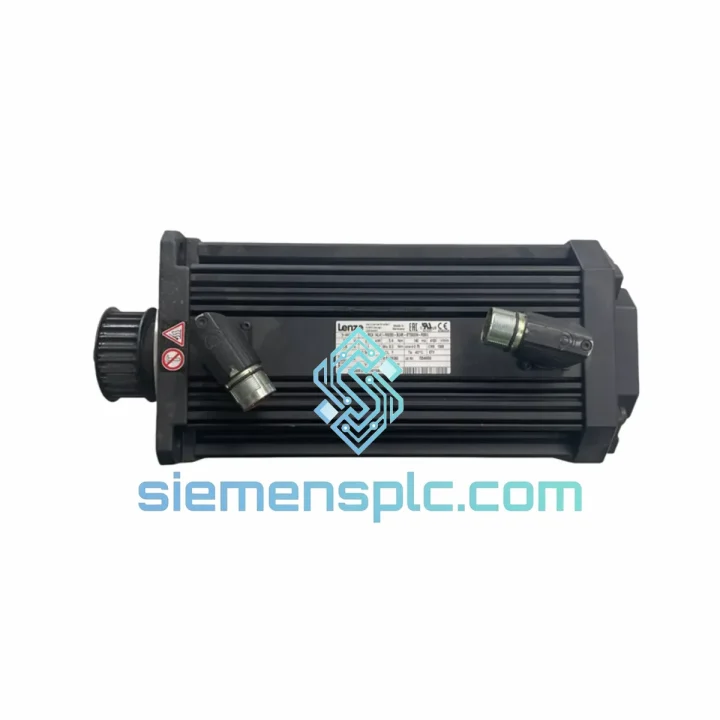

LENZE 14L41-RS0B0-B24R-ST5S00N-R0SU Servo Motor

LENZE 14L41-RS0B0-B24R-ST5S00N-R0SU — Every Hour of Downtime Costs You Money. We Ship Today.

Your servo axis is down. The line is stopped. Maintenance is standing by. You’ve already pulled the motor and confirmed the fault — it’s the LENZE 14L41-RS0B0-B24R-ST5S00N-R0SU. You don’t need a sales pitch. You need the part on a plane tonight.

We stock this unit in Xiamen. It ships same day on DHL Express or FedEx International Priority. Transit to most of Asia-Pacific is 24–48 hours. Europe and North America: 48–72 hours. We’ve done this hundreds of times. We know what’s at stake.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor teaches you that most 14L servo failures fall into three categories. Know which one you’re dealing with before you swap the motor — otherwise you’ll burn the replacement too.

1. Encoder Fault (most common) — Drive Error Codes: 0x2350 / Err 52 / F0052
The ST5S00N encoder on this motor uses SinCos analog tracks plus EnDat 2.1 digital protocol. If you’re seeing oscillating position errors or the drive throws an encoder amplitude fault immediately on enable, the issue is almost always the feedback cable — not the motor itself. Check the cable shield termination at both ends before condemning the motor. A broken shield on a 10-meter cable will mimic a dead encoder perfectly. If the motor is genuinely failed, the replacement unit must be paired with the drive using the LENZE Engineer software: navigate to Drive > Motor > Identification and run the motor identification routine (takes ~90 seconds). Skip this step and your current loop will be miscalibrated.

2. Brake Release Failure — Drive Error: F0028 / Brake Monitoring Fault
The B24R brake requires a clean 24 VDC supply with less than 5% ripple. Measure directly at the brake connector on the motor — not at the panel. Voltage drop across a long cable run or a failing 24V PSU will cause intermittent brake release faults that look like a motor fault. After fitting the replacement, verify brake release current draw: nominal is approximately 0.35–0.45 A. Significantly higher suggests a shorted brake coil; significantly lower suggests an open circuit or connector issue.

3. Winding Insulation Breakdown — Drive Error: F0011 / Overcurrent on Enable
Typically caused by coolant ingress at the shaft seal (IP54 rated — not fully immersion-proof) or sustained operation above 40 °C ambient without adequate cabinet cooling. Before fitting the replacement, megger-test the motor cable for insulation resistance to ground. A failed cable will destroy the new motor within minutes of first enable. Minimum acceptable insulation resistance: 1 MΩ at 500 VDC.

Replacement Checklist:

• Confirm drive firmware is compatible with ST5S00N encoder type — check LENZE firmware release notes for your 9400 / i700 version
• Torque motor mounting bolts to LENZE specification (refer to 14L installation manual, section 4.3)
• Re-run motor identification in LENZE Engineer after mechanical installation
• Verify brake function: command brake release via drive I/O test mode before coupling the load
• Check shaft coupling alignment — angular misalignment above 0.05 mm will accelerate bearing wear on the new unit
• Log the replacement in your CMMS with the new motor serial number for warranty tracking

Reliability in Harsh Conditions

The 14L41 frame is built for environments that would kill a standard motor in weeks. The IP65-rated housing keeps out pressurized water jets and fine particulate — relevant if you’re running this in a food processing line, a wet machining cell, or a dusty press shop. The shaft seal is rated IP54, which handles splash and condensation but is not designed for direct coolant immersion; if your application involves submerged or heavily flooded conditions, fit a shaft seal protector.

Insulation Class F means the winding can sustain 155 °C continuous winding temperature. In practice, with a properly sized drive and adequate ambient cooling, you’ll run well below that limit. The real-world killer is thermal cycling — repeated heat-up and cool-down cycles that stress the winding insulation over years of operation. LENZE’s vacuum-impregnated winding process significantly reduces moisture absorption during these cycles, which is why 14L motors in well-maintained installations routinely exceed 50,000 operating hours before first failure.

Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random). If your machine has a resonance issue — common in long-reach gantry axes or poorly damped conveyor frames — address the mechanical resonance through drive notch filter tuning rather than expecting the motor to absorb it indefinitely. The bearings will tell you when they’ve had enough, usually with a characteristic high-frequency whine at specific speeds.

Global Express Logistics

Our dispatch process is built around one assumption: your production cannot wait. Here’s exactly what happens after you confirm your order:

• Order confirmed before 14:00 CST: Unit is picked, inspected, and packed the same afternoon. DHL or FedEx airway bill generated by 17:00 CST. Tracking number sent to your email within 30 minutes of handover to carrier.
• Packaging: Anti-static foam insert, moisture-barrier bag with desiccant, double-wall export carton. The motor arrives in the same condition it left our warehouse — we’ve shipped to oil rigs in the South China Sea and semiconductor fabs in Taiwan. The packaging holds.
• Customs documentation: Commercial invoice, packing list, and HS code declaration prepared as standard. Certificate of Origin (Form E for ASEAN, EUR.1 for Europe) available on request. We handle the paperwork so your customs broker doesn’t have to chase us.
• Typical transit times from Xiamen: Southeast Asia 1–2 days | Northeast Asia 1–2 days | Europe 2–3 days | North America 2–3 days | Middle East 2–4 days | South America 3–5 days
• Shipment tracking: Live DHL/FedEx tracking link provided. For critical shipments, we monitor the consignment and proactively notify you of any customs holds or delays.

Volume orders (5+ units) qualify for dedicated freight consolidation and preferential pricing. Contact us before placing a large order — we can often improve both lead time and unit cost for bulk requirements.
