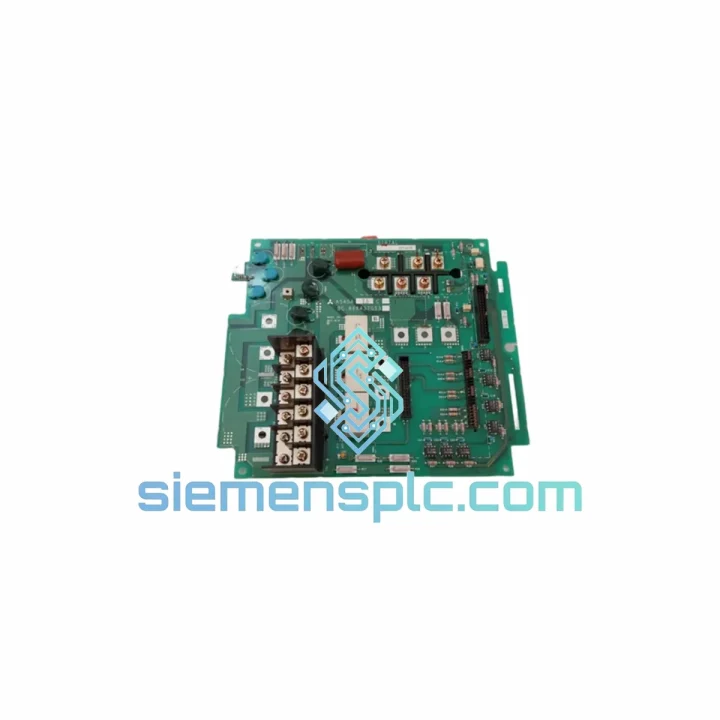

Mitsubishi BC186A166H03 Servo Drive PCB

BC186A166H03 Down? Every Minute of Servo Fault Costs You Money — Ship Today from Xiamen

Your MELSERVO drive just threw an AL.32 or AL.50 alarm. The axis is locked. The line is cold. You’ve already swapped the motor, checked the encoder cable, and cleared the parameter — and the fault keeps coming back. Nine times out of ten, that points straight to the BC186A166H03 control circuit board. This is the board that handles current feedback, PWM gate drive logic, and the internal DC bus monitoring on the MR-J2S/MR-J3 family. When it fails, no amount of parameter reset will bring the drive back online.

We stock the BC186A166H03 in Xiamen. Same-day dispatch on confirmed orders before 15:00 CST. DHL Express to most destinations in 3–5 business days. While your procurement team is still raising a PO, we’re already pulling the unit off the shelf.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault codes that point to BC186A166H03 failure:

• AL.32 (Overcurrent) — Persistent overcurrent alarm that survives motor swap and cable inspection. The current detection circuit on the PCB is reading phantom spikes. Replace the board before condemning the IPM module.
• AL.50 (Overload 1) / AL.51 (Overload 2) — If thermal history is clean and the motor is correctly sized, the load calculation logic on the control board may be corrupted.
• AL.16 (Encoder Error) — The encoder signal conditioning path runs through this board. A cracked solder joint near the encoder connector header is a known failure mode on units with high vibration exposure.
• AL.37 (Parameter Error) — After a board swap, the drive will lose its parameter set. Have your MR Configurator backup ready before you pull the old board.

Step-by-step replacement procedure:

1. Power down and isolate. Confirm DC bus voltage is below 30 V before touching any internal component. The bus capacitors on MR-J2S/J3 drives hold charge for up to 15 minutes after mains disconnect. Use a multimeter — not your instincts.
2. Document the parameter set. Connect MR Configurator and export all parameters to file. The BC186A166H03 does not store parameters — they live in the drive’s EEPROM on the main control board — but a full backup before any board swap is non-negotiable.
3. Note the rotary switch position. On MR-J3-□B (SSCNET III) drives, the station address rotary switch is mounted on the front panel, not on this PCB. However, confirm the axis address in MR Configurator before disassembly so you can verify it post-swap.
4. Remove the drive from the panel. Disconnect the CN1 (command), CN2 (encoder), CN3 (I/O), and power terminals. Label every connector. The MR-J2S/J3 series uses keyed connectors, but mislabeling CN1 and CN3 during a rushed field repair is a common mistake.
5. Extract the BC186A166H03. The board is secured by four M3 screws and a multi-pin edge connector to the power board. Release the connector latch before attempting to lift the board — forcing it will damage the connector housing.
6. Inspect before installing the replacement. Check the replacement board for transit damage, particularly around the gate drive optocoupler area and the current sensor headers. Compare revision markings with the removed board — H03 suffix indicates hardware revision 3; do not substitute H01 or H02 without confirming compatibility with Mitsubishi’s revision matrix.
7. Reinstall and restore parameters. Seat the board, reconnect all terminals, power up, and immediately restore the parameter backup via MR Configurator. Run a JOG test at low speed before returning the axis to auto mode.
8. Verify encoder feedback. Check the encoder pulse count in the drive’s diagnostic display during manual rotation. Any discrepancy indicates a wiring issue or a mismatched encoder resolution setting — correct before running under load.

Firmware note: The BC186A166H03 is a hardware PCB and carries no user-flashable firmware. However, if the main control board firmware version is below the minimum required for your motor series, you may see spurious faults after the swap. Confirm firmware compatibility in the MR-J2S/J3 release notes before closing the panel.

Reliability in Harsh Conditions

Mitsubishi Electric designs the MELSERVO control PCB to operate continuously in environments that would destroy consumer-grade electronics. The BC186A166H03 is rated for ambient operating temperatures of 0–55 °C with up to 90% relative humidity (non-condensing). The board’s conformal coating protects the copper traces and component leads against moisture ingress, conductive dust, and mild chemical exposure — conditions common in food processing, foundry, and coastal manufacturing facilities.

Vibration resistance is validated to IEC 60068-2-6 standards. The through-hole mounting of critical power components — rather than surface-mount — gives the board superior mechanical integrity under the sustained vibration loads typical of press lines and compressor rooms. The gate drive optocouplers are selected for long-term isolation stability, maintaining creepage distances that comply with IEC 60664-1 even after years of thermal cycling.

Every unit we ship from Xiamen is stored in a climate-controlled warehouse at 18–25 °C with humidity control. Boards are kept in sealed anti-static bags with desiccant packs until the moment of dispatch. We do not store boards on open shelves or in uncontrolled environments — a practice that causes latent moisture damage that only shows up six months after installation.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s how a typical urgent order moves:

• Order confirmed before 15:00 CST: Unit is pulled, inspected, ESD-packed, and handed to DHL/FedEx the same afternoon.
• Day 1–2: Clears Xiamen customs and enters the international express network. Tracking number issued to buyer within 4 hours of pickup.
• Day 3–5: Delivery to most destinations in Southeast Asia, Europe, Middle East, and North America. Australia and South America typically 5–7 days.
• Documentation included: Commercial invoice, packing list, and certificate of origin. HS Code 8537.10 declared. We can provide a proforma invoice for advance customs clearance on request.
• Freight options: DHL Express (default for urgent orders), FedEx International Priority, or sea freight LCL for bulk quantities. We do not use untracked postal services for industrial components.

If your plant is in a country with specific import restrictions on electronic components, contact us before ordering. We have experience navigating customs requirements in India, Brazil, Turkey, and the EU and can advise on documentation requirements to prevent clearance delays.
