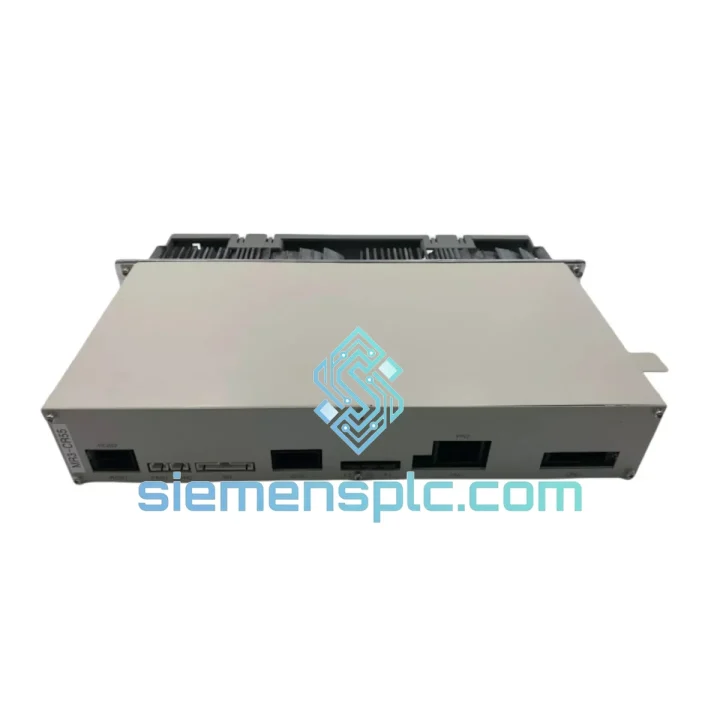

Mitsubishi Electric MR3-CR55 Robot Controller

MR3-CR55 Down? Every Minute of Stoppage Costs You — Get Back Online Fast

A failed Mitsubishi Electric MR3-CR55 robot controller doesn’t just halt one arm — it can freeze an entire cell, cascade into upstream buffer overflows, and trigger line-wide emergency stops. At siemensplc.com, we stock the MR3-CR55 specifically because we know what a 4-hour unplanned outage costs a tier-1 automotive or electronics plant. Our Xiamen warehouse ships same-day on confirmed orders, with DHL Express and FedEx International Priority as standard carriers. While your maintenance team is still pulling the fault log, we can already have a verified unit in transit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field calls on MELFA lines, these are the failure modes and swap pitfalls that catch engineers off guard:

Common Fault Codes on MR3-CR55 Failure:

• H0771 / H0772 – Controller CPU communication timeout. Often misdiagnosed as a teach pendant cable fault. If swapping the pendant cable doesn’t clear it within two power cycles, the controller board itself is the culprit.
• H0500-series – Servo amplifier communication errors. Before condemning the amplifier, verify the controller’s internal servo bus connector (CN2) is fully seated. Vibration-induced micro-disconnects are common in press-room environments.
• H0100 / H0101 – Emergency stop circuit open. After controller replacement, always re-verify the external E-stop wiring harness pinout against your site’s electrical drawings — the MR3-CR55 uses a dual-channel safety relay input that must be re-commissioned.
• Blank teach pendant display post-swap – 90% of the time this is a firmware version mismatch. The replacement controller must run the same MELFA-BASIC firmware revision as the original, or the pendant will refuse to initialize. Pull the firmware label from the old unit before disposal.

Replacement Checklist (Field-Proven):

• ✔ Power down the entire robot cell and lock out / tag out (LOTO) before removing the controller.
• ✔ Export the current robot program via RT ToolBox3 or the teach pendant backup function before disconnecting anything. The MR3-CR55 stores programs in battery-backed SRAM — if the backup battery is dead, programs are already lost.
• ✔ Note the DIP switch settings on the existing controller (typically SW1–SW4 on the main PCB). These set the robot axis configuration and must be replicated exactly on the replacement unit.
• ✔ Check the battery voltage on the new unit before installation. Shelf-stored controllers can have depleted backup batteries. Replace with a CR2032 or equivalent per the service manual before powering on.
• ✔ After installation, perform a full origin-point calibration (zero-point return) before resuming production. Do not skip this step — axis offset errors will cause immediate collision faults.
• ✔ Re-commission the safety circuit: test E-stop, door interlock, and speed-limit zones before releasing the cell to production.

Reliability in Harsh Conditions

The MR3-CR55 was designed for the factory floor, not a server room. Mitsubishi Electric’s MELFA controllers are validated against IEC 61131-2 environmental stress profiles, which means the unit you receive has been engineered to handle conditions that would kill consumer-grade electronics within weeks.

In automotive stamping plants, the controller routinely operates in ambient temperatures that swing from 5 °C at line startup to 38 °C during peak production, with coolant mist and metalworking fluid aerosols in the air. The sealed backplane design and conformal-coated PCBs resist moisture ingress that would corrode unprotected boards. Vibration isolation mounts on the controller chassis attenuate the 10–55 Hz mechanical shock spectrum generated by nearby presses and conveyors — a frequency range that is particularly destructive to solder joints on high-density PCBs.

In electronics assembly environments, electrostatic discharge (ESD) is the silent killer. The MR3-CR55’s internal power supply and I/O boards are designed to IEC 61000-4-2 Level 3 ESD immunity, meaning a 6 kV contact discharge won’t latch up the CPU or corrupt program memory. For food and pharmaceutical lines where washdown is routine, the controller cabinet should be rated IP54 or higher — the MR3-CR55 itself is designed to be housed in such enclosures, with all external connectors rated for repeated mating cycles without contact degradation.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions (18–25 °C, RH <60%) and individually bagged with desiccant packs. Every unit is inspected for connector pin integrity and housing damage before dispatch. We do not ship units with bent pins, cracked housings, or missing labels — those go to the reject bin, not to your plant.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport (XMN), one of China’s key cargo hubs with direct freighter connections to Frankfurt, Dubai, Los Angeles, and Singapore. This geography is deliberate — it means your emergency order doesn’t sit in a domestic transit hub waiting for a connecting flight.

Standard Dispatch Process:

• Order confirmed before 15:00 CST: Same-day dispatch. DHL Express or FedEx International Priority airway bill generated within 2 hours of payment confirmation.
• Order confirmed after 15:00 CST: Next business day dispatch, with tracking number issued by 10:00 CST the following morning.
• Transit Times (estimated): Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 2–3 days.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared for every shipment. HS Code 8537.10 is pre-declared to minimize customs clearance delays.
• Customs Support: For destinations with complex import requirements (India, Brazil, Turkey), we provide pre-shipment documentation packages and can coordinate with your local customs broker on request.
• Tracking: Real-time tracking link sent via email and WhatsApp immediately upon dispatch. We monitor shipments proactively and alert you to any customs holds before they become delays.

For multi-unit orders or standing purchase agreements, contact us to discuss bonded stock arrangements — we can reserve dedicated inventory under your company name with guaranteed 24-hour dispatch SLA.
