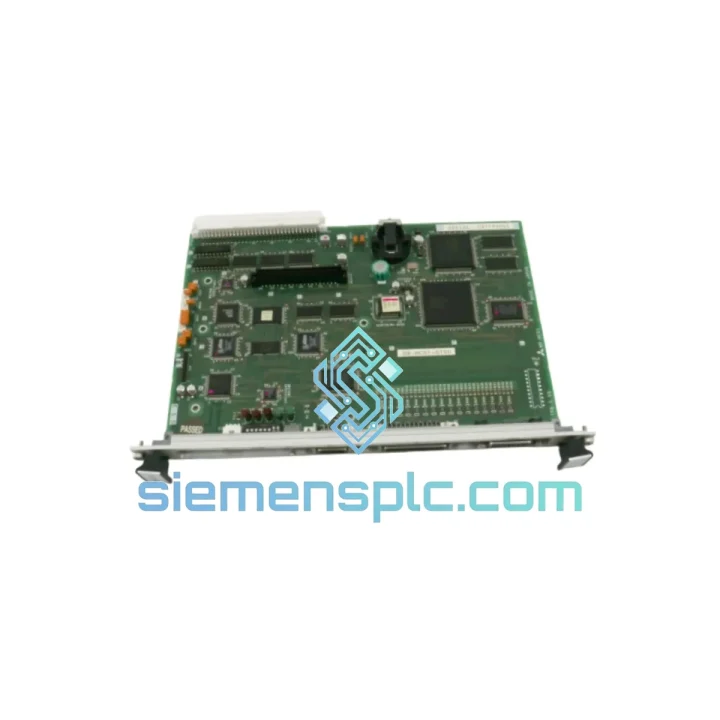

MITSUBISHI MR-MC01-S100 PCB Assembly

MR-MC01-S100 Motion Controller PCB: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your line is down. Every minute the MR-MC01-S100 board sits dead inside that servo rack, you’re bleeding money. Automotive stamping, semiconductor handling, high-speed packaging — it doesn’t matter the sector. A failed motion controller PCB is a full-stop event. We stock the MITSUBISHI MR-MC01-S100 PCB Assembly precisely for this moment. Verified OEM-spec boards, cleared for same-day dispatch from Xiamen, moving via DHL Express or FedEx International Priority to your facility — wherever that is.

This is not a catalog listing. This is a field-ready replacement sourced through traceable industrial supply channels, tested before it leaves our warehouse, and packed to survive the journey. If you’re reading this at 2 AM trying to get a line back up by morning shift, you’re in the right place.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The MR-MC01-S100 fails in predictable ways. After handling dozens of these in the field, here’s what you need to know before you pull the board and before you install the replacement.

Common Failure Signatures:

• Error A.1A / A.1B on MR-J4 amplifier: Encoder communication fault — often traced back to corrupted signal processing on the MC01 board, not the encoder itself. Swap the board before condemning the encoder cable.
• MELSEC-Q CPU stops at RUN with motion CPU error (error code 3100–3199): Motion CPU initialization failure. The Q172DCPU or Q173DCPU cannot handshake with the MR-MC01-S100. Board-level failure confirmed if the error persists after power cycle and parameter reset.
• Intermittent axis drop-out during multi-axis synchronization: High-speed pulse processing degradation. Typically worsens with ambient temperature rise. Classic sign of aging capacitors or trace damage on the MC01 board.
• F2-08TRS sub-reference fault: Transistor output section failure — check for blown output channels before assuming full board replacement is needed. If more than two channels are dead, full board swap is faster than component-level repair.

Pre-Installation Checklist:

• Power down the entire servo rack. Confirm zero voltage on the DC bus before touching the board — MR-J4 bus capacitors hold charge for up to 15 minutes after power-off.
• Record all current axis parameters from GX Works2 / MT Developer2 before removal. The replacement board does not retain your motion program or axis settings.
• Check the DIP switch configuration on the existing board (SW1 on the MR-MC01-S100 PCB). Photograph it. The replacement must be set identically — axis address assignment is hardware-defined on this board generation.
• Verify firmware version compatibility: the Q172DCPU / Q173DCPU CPU firmware must match the supported range for the MR-MC01-S100 revision you’re installing. Mismatched firmware causes error 3120 on startup. Contact us with your CPU serial number if unsure — we’ll confirm revision compatibility before shipment.
• After installation, perform a full parameter restore and run the servo auto-tuning sequence before returning the axis to production. Do not skip this step on high-inertia loads.
• Inspect the SSCNET III fiber connectors on both the CPU and the new board. A cracked or dirty fiber tip causes intermittent communication errors that mimic board faults — clean with IPA and a lint-free swab before declaring the replacement successful.

Reliability in Harsh Conditions

The MR-MC01-S100 was engineered for the factory floor, not a server room. MITSUBISHI Electric designed this board to operate continuously in environments that would destroy consumer-grade electronics within weeks.

The PCB substrate uses a high-Tg laminate rated for sustained thermal cycling — critical in foundry environments where ambient temperatures swing 30°C between day and night shifts. Conformal coating on production-grade units provides resistance to condensation and airborne particulates, a common failure accelerator in food processing and chemical plants.

Vibration tolerance is validated to IEC 61131-2 standards — the same benchmark applied to the MELSEC-Q series rack. In automotive body-shop installations where the control cabinet sits within 3 meters of a resistance welding gun, the board’s component mounting and solder joint specification are what keep the system running through thousands of weld cycles per shift.

Electromagnetic compatibility is addressed through board-level shielding and ground plane design that suppresses conducted and radiated interference from adjacent VFDs, servo amplifiers, and high-current bus bars. In our experience, boards that fail in electrically noisy environments are almost always victims of inadequate cabinet grounding — not board-level weakness. Verify your cabinet PE bonding before blaming the hardware.

Every unit we ship — whether new OEM or tested refurbished — is inspected under magnification for solder joint integrity, trace damage, and component seating. Refurbished boards are bench-tested against a known-good reference system before packaging. We do not ship boards that have not passed functional verification.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary industrial export ports with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. Stock is physically on-site, and orders confirmed before 14:00 CST ship the same business day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days via DHL Express
• South Korea / Japan: 2–3 business days via FedEx International Priority
• Europe (Germany, Italy, France, UK): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia): 3–4 business days via DHL Express
• India / South Asia: 3–5 business days via DHL Express

All shipments include full tracking from pickup to delivery. Commercial invoice and packing list are prepared to customs standards for industrial electronic components (HS Code 8537.10). For customers in regulated industries requiring import documentation, we provide a certificate of conformity and sourcing declaration on request.

Expedited Saturday delivery and after-hours dispatch are available for confirmed critical-downtime situations — contact us directly on WhatsApp for real-time coordination. We have moved boards to production lines in 36 hours door-to-door. It requires communication and a confirmed order. Start that conversation now if your situation is urgent.
