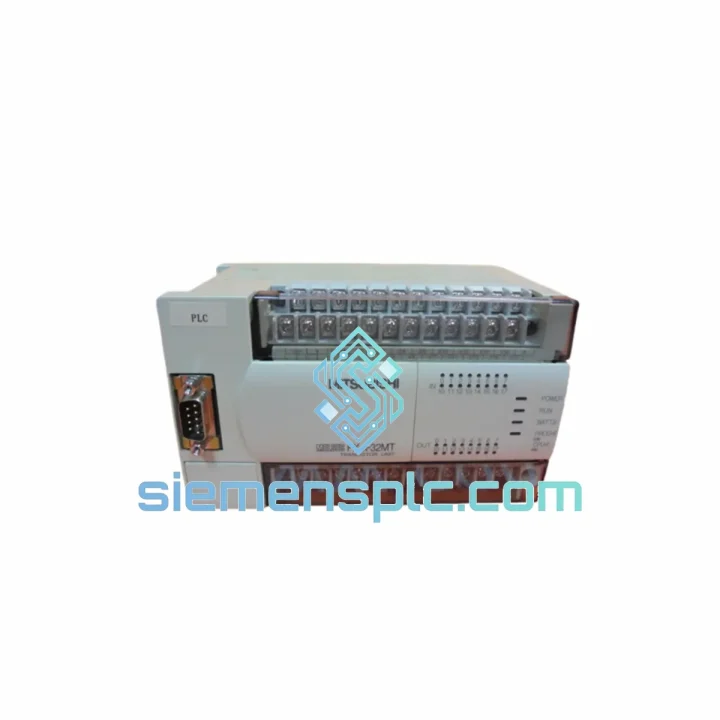

Mitsubishi FX2N-32MT Programmable Logic Controller – MELSEC FX2N Series

FX2N-32MT: Fixed-Configuration Transistor Output PLC for Deterministic Discrete and Motion Control

The Mitsubishi Electric FX2N-32MT is a 32-point fixed I/O programmable logic controller within the MELSEC FX2N product family. Its architecture integrates 16 sink-type 24 V DC input channels and 16 NPN open-collector transistor output channels into a single DIN-rail-mounted enclosure powered by a universal 100–240 V AC supply. The controller executes basic Boolean instructions at 0.08 μs per step across a program store of 8,000 steps, producing worst-case scan times below 2 ms under full program load — a performance envelope that satisfies the timing requirements of most discrete interlock, conveyor sequencing, and single-axis motion applications without auxiliary co-processors.

The FX2N-32MT occupies a well-defined position in the MELSEC FX2N architecture: it is the transistor-output variant of the 32-point base unit, distinguished from the relay-output FX2N-32MR by its ability to generate high-frequency pulse trains on output channels Y0 and Y1 at up to 100 kHz. This characteristic makes the FX2N-32MT the preferred base unit for stepper motor positioning tasks where a dedicated positioning module would otherwise be required. The controller accepts up to eight expansion modules, extending the addressable I/O space to 256 points and supporting analog, positioning, and communication function modules within a unified address map.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Each of the 16 input channels on the FX2N-32MT passes through a dedicated photocoupler rated at 2,500 V AC isolation. The field-side 24 V DC circuit is electrically separated from the 5 V internal logic bus at every input point, preventing ground-loop currents — a common source of spurious input transitions in panels where variable-frequency drives share a common earth conductor with the control circuit. Input filter time constants are configurable in software from 1 ms to 60 ms per group, allowing the engineer to set tighter response windows for encoder feedback channels while applying heavier filtering to inductive proximity switches subject to contact bounce or cable-induced noise.

The 16 transistor output channels use NPN open-collector devices with a per-point saturation voltage of ≤ 1.5 V at 0.5 A load. Channels Y0 and Y1 are routed through dedicated high-speed output drivers with a switching rise time of approximately 1 μs, enabling 100 kHz pulse-train generation for stepper motor step-and-direction control. The remaining output channels (Y2–Y17) are rated for standard switching at frequencies up to 1 kHz, adequate for solenoid valves, contactors, and indicator lamps. Inductive load suppression is not built into the output stage; external flyback diodes or metal-oxide varistors must be installed across inductive loads connected to each output common to prevent transient overvoltage from damaging the output transistors.

The CPU scan cycle follows a fixed sequence: input image refresh → program execution → output image refresh → peripheral service tasks. With a fully loaded 8,000-step program executing at 0.08 μs per basic instruction, the program execution phase contributes approximately 0.64 ms to the total scan time. Peripheral service — covering RS-422 communication, high-speed counter interrupt processing, and expansion module polling — adds a variable overhead typically between 0.3 ms and 0.8 ms, yielding a total scan cycle in the range of 1.0–2.0 ms for representative industrial programs. This scan-time consistency is maintained by the FX2N’s instruction pipeline architecture, which processes arithmetic and data-move applied instructions in a separate execution stage from the Boolean logic sweep, preventing heavy applied-instruction density from introducing scan-time jitter into the interlock logic.

EMC performance is achieved through layered hardware measures. The AC power input section incorporates a common-mode choke that attenuates differential-mode noise above 150 kHz by approximately 20 dB. The zinc-coated steel housing provides a shielding effectiveness of approximately 40 dB at 30 MHz, sufficient to contain the harmonic emissions of the internal switching power supply below EN 55011 Class A limits. The controller meets EN 61000-4-4 (Electrical Fast Transient/Burst, 2 kV on power lines) and EN 61000-4-5 (Surge, 1 kV line-to-line) immunity levels — the two dominant conducted interference sources in motor-drive and power-conversion environments. The RS-422 port is electrically isolated from the CPU logic ground, providing common-mode rejection on cable runs up to 50 m in electrically noisy enclosures.

Program memory is stored in EEPROM, eliminating the battery-dependent SRAM retention used in earlier FX-series controllers. EEPROM endurance is rated at 10,000 write cycles, which at a typical program development and commissioning cadence represents a service life exceeding the expected operational lifetime of the controller. Latched auxiliary relays (M500–M1023) and retentive counters (C200–C234) retain their last state through power cycles using a dedicated capacitor-backed SRAM cell, providing production count persistence and fault-state memory without external non-volatile hardware.

System Integration Benefits

• Sub-2 ms deterministic scan cycle: The FX2N-32MT’s fixed-pipeline CPU architecture delivers consistent scan times below 2 ms under full 8,000-step program load, satisfying the response-time budgets of pneumatic actuator interlocks, servo enable/disable sequences, and conveyor synchronization logic without requiring interrupt-driven workarounds.
• Integrated 100 kHz dual-axis pulse output: Y0 and Y1 generate independent step-pulse and direction signals at up to 100 kHz, enabling direct control of two stepper motor axes without a dedicated FX2N-1PG or FX2N-10PG positioning module — reducing panel BOM cost and eliminating an expansion slot for single- and dual-axis applications.
• Software-configurable input filter per channel group: Engineers can assign 1 ms response to encoder feedback inputs and 10–60 ms filtering to proximity switch inputs on the same base unit, accommodating mixed sensor types without hardware modification or external filter relays.
• 2,500 V AC optical isolation on all input channels: Full galvanic separation between field wiring and CPU logic prevents ground-loop-induced false inputs — a failure mode that accounts for a significant proportion of unexplained PLC faults in systems sharing earth conductors with variable-frequency drives or welding equipment.
• Eight-module expansion bus with unified I/O address map: FX2N analog modules (FX2N-4AD, FX2N-4DA), positioning modules (FX2N-1PG), and communication adapters (FX2N-232IF, FX2N-485BD) share a single contiguous address space, simplifying ladder program structure and eliminating the need for inter-module data-exchange instructions.
• EEPROM program retention without battery maintenance: Non-volatile program storage removes the battery replacement interval from the preventive maintenance schedule, reducing lifecycle maintenance cost and eliminating the risk of program loss from a depleted or failed backup battery.
• Retentive counters and latched relays for production data persistence: C200–C234 and M500–M1023 retain state through power interruptions, enabling shift-based production counting, fault-state logging, and recipe-step tracking without external non-volatile memory hardware.
• CC-Link master capability via FX2N-16CCL-M: The FX2N-32MT can be configured as a CC-Link master managing up to 64 remote I/O stations at 1 Mbps, providing a practical distributed I/O architecture for large panel layouts where home-run wiring to a central base unit is cost-prohibitive.
• Modbus RTU interoperability via FX2N-485BD: The RS-485 adapter enables the FX2N-32MT to communicate with third-party drives, power meters, and sensors using the Modbus RTU protocol, without consuming an expansion module slot or requiring a dedicated communication module.
• GX Works2 multi-language programming environment: The FX2N-32MT is fully supported by GX Works2, providing ladder diagram, sequential function chart, and structured text programming within a single project file, with online device monitoring, forced I/O, and batch device monitoring available during live machine operation.

Quality Assurance & Global Logistics

Every FX2N-32MT unit dispatched by siemensplc.com is sourced through verified Mitsubishi Electric distribution channels. Prior to shipment, each unit undergoes incoming inspection covering label and hologram authenticity verification, firmware version confirmation against the current Mitsubishi Electric release matrix, and a functional power-on test validating input response, output switching, and RS-422 port communication. Traceability records — including lot number, manufacture date code, and inspection checklist — are retained and available to OEM integrators and system builders requiring supply-chain documentation for quality management system audits.

All shipments originate from our warehouse in Xiamen, China. Export packaging uses anti-static foam inserts within double-wall corrugated cartons conforming to the drop and vibration profiles of ISTA 2A, protecting the controller against transit damage on both air and sea freight routes. For time-critical procurement, DHL Express and FedEx International Priority services provide door-to-door transit times of 3–5 business days to destinations across Southeast Asia, Europe, the Middle East, and North America. For volume orders, sea freight consolidation via Xiamen Port is available with complete export documentation: commercial invoice, packing list, certificate of origin, and HS code declaration for customs clearance.

All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and component failure under operating conditions defined in the Mitsubishi Electric FX2N Hardware Manual. Warranty claims are acknowledged within 48 hours, and replacement units are dispatched from available stock to minimize production downtime. Extended support, including application engineering consultation and spare-parts sourcing, is available through our technical team.
