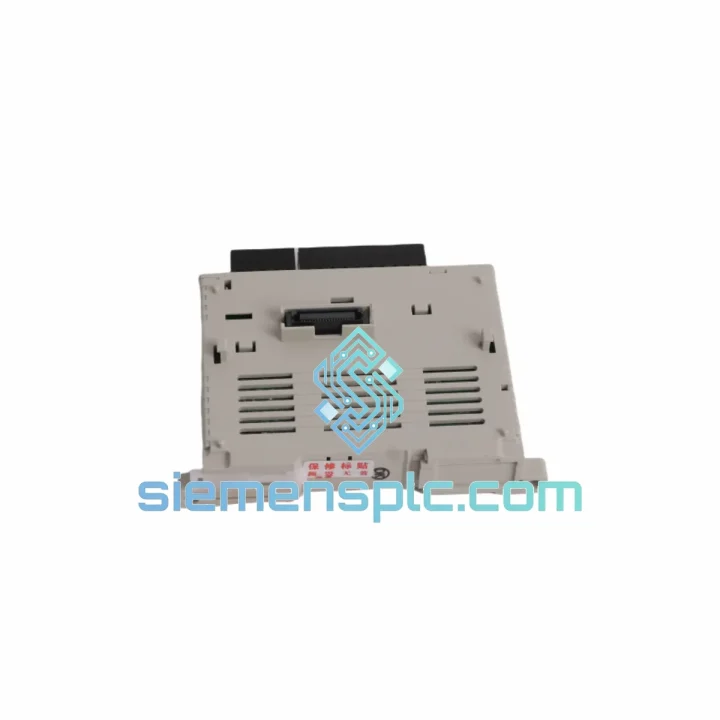

Mitsubishi FX3U-4AD-PT-ADP Analog Input Adapter

FX3U-4AD-PT-ADP: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your furnace zone is reading ERR. Your extruder barrel temperature has gone blind. The FX3U CPU is throwing BFM read errors and your shift supervisor is already on the phone. You don’t need a datasheet lecture right now — you need a replacement FX3U-4AD-PT-ADP on a truck today. We stock it. We ship it. DHL Express from Xiamen, door to door, typically 3–5 business days to most industrial hubs worldwide.

Every hour of unplanned downtime on a continuous process line costs real money — conservative estimates put it at $5,000–$50,000/hr depending on your sector. A replacement adapter sitting in our warehouse in Xiamen is the only thing standing between you and full production recovery. We’ve shipped emergency FX3U-4AD-PT-ADP units to plants in Germany, Thailand, Mexico, and Australia on 24-hour turnaround. This is what we do.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Failure signatures that bring engineers to this page:

• BFM returns 32767 (7FFFh) on all channels: Classic dead or disconnected adapter. Rule out wiring first — check terminal block for loose PT100 leads. Swap the adapter. If the new unit reads correctly, the old one is confirmed failed.
• Intermittent temperature spikes on one channel: Degraded 3-wire PT100 lead or cracked solder joint in the adapter’s input conditioning circuit. Isolate the channel via BFM CH enable bits, then swap the adapter to confirm.
• CPU shows ADAPTER ERROR in GX Works2 diagnostics: Adapter not recognized on the left-side bus. Power cycle first. If the error persists after power cycle, the adapter’s bus interface has failed — replacement is the only fix.
• All channels reading ambient temperature regardless of process: PT100 excitation current circuit failure. The module communicates but the measurement front-end is dead. Replace immediately.

Field-tested replacement procedure:

1. Power down the FX3U main unit completely. Do not hot-swap left-side adapters — the bus is not designed for it and you risk corrupting the CPU’s adapter map.
2. Document the existing adapter slot position. The FX3U CPU assigns BFM base addresses based on physical left-to-right adapter sequence. Slot order must be preserved exactly.
3. Disconnect all PT100 terminal wiring. Label each wire before removal — 3-wire PT100 polarity errors cause offset errors that look like calibration drift and waste hours of debugging.
4. Release the locking tab and slide the adapter off the left-side connector. Inspect connector pins on both the adapter and the adjacent unit for bent pins or corrosion.
5. Seat the new FX3U-4AD-PT-ADP firmly until the locking tab clicks. Reconnect PT100 wiring per your labels.
6. Power up. In GX Works2, go to Diagnostics → Module Information and confirm the adapter is listed. Read BFM #0 (channel 1 temperature) to verify live data.
7. No firmware update required. The FX3U-4AD-PT-ADP contains no user-flashable firmware. The CPU handles all BFM mapping automatically. No DIP switches, no address setting, no configuration file to restore.
8. If you used non-default BFM settings — averaging count in BFM #1–#4, or Celsius/Fahrenheit mode in BFM #5 — re-apply those via MOV instructions in your ladder program on first scan. These settings are not stored in the adapter; they live in your PLC program.

Critical note on slot addressing: The FX3U-4AD-PT-ADP does not self-address. BFM base address is determined by physical slot position. If the failed adapter was not in the leftmost position, confirm the replacement occupies the identical slot — otherwise your ladder program reads from the wrong BFM block and you get incorrect temperature data with no error flag raised.

Reliability in Harsh Conditions

The FX3U-4AD-PT-ADP is not a lab instrument. It is built for the floor. Mitsubishi Electric’s MELSEC FX3U adapter family is designed and tested to IEC 61131-2 environmental standards — the same baseline that governs the main CPU units.

In practice: the adapter survives the vibration of a stamping press line (10–150 Hz continuous), the thermal cycling of a control cabinet that bakes at 50°C in summer and drops to 5°C in winter, and the EMI environment of a VFD-heavy panel where conducted noise on the 24V rail is a daily reality. The 3-wire PT100 input topology inherently rejects common-mode noise and lead resistance variation — a design choice that pays dividends in electrically noisy environments like arc furnace facilities or large motor control centers.

Conformal coating on the PCB provides baseline protection against humidity and condensation — relevant for food processing plants and coastal facilities where relative humidity regularly exceeds 85%. The 55°C operating ceiling gives adequate margin for most industrial enclosures, though panels in direct sun exposure in tropical climates should be assessed for thermal management.

Units from our Xiamen warehouse are stored in climate-controlled conditions and shipped in anti-static, shock-absorbing packaging. Every unit undergoes visual inspection before dispatch — label integrity, housing condition, connector pin alignment, and date code verification are all checked against Mitsubishi Electric reference standards.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL Express and FedEx International Priority service to over 220 countries. For emergency replacement orders, this geography matters: Xiamen’s export infrastructure means same-day or next-morning pickup cutoffs are achievable for orders confirmed before 14:00 CST.

• Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia): 2–3 business days via DHL Express
• India & South Asia: 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, Poland, UK): 3–5 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Turkey): 3–4 business days via DHL Express
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• Australia & New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL Express

All shipments include full tracking from pickup to delivery. Commercial invoice, packing list, and certificate of conformity are provided as standard. DDP (Delivered Duty Paid) terms available on request — we handle customs clearance and duty payment on your behalf. EXW and DAP terms also available.

For orders where production cannot wait for standard express transit, we can coordinate charter courier or hand-carry arrangements to major industrial cities. Contact our logistics team directly via WhatsApp for time-critical escalations.
