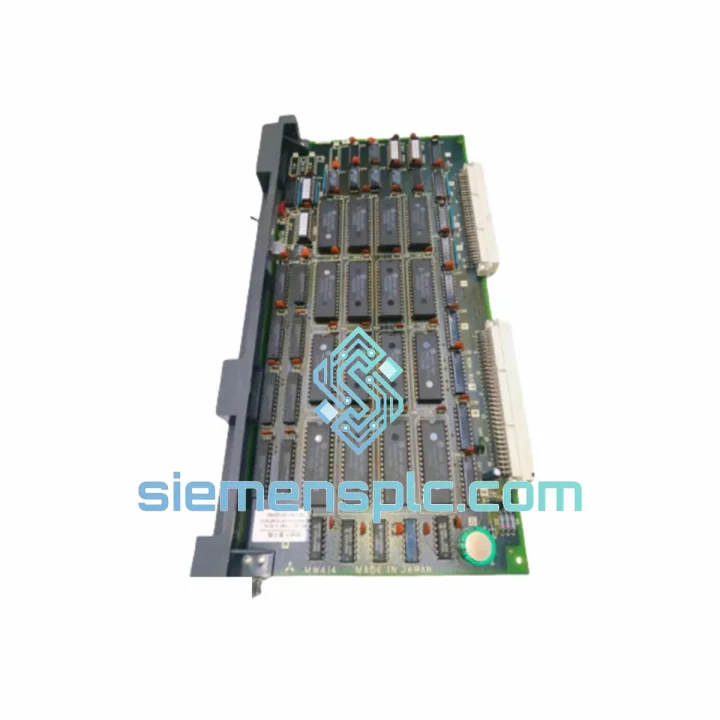

Mitsubishi MW414 MW414B PLC Power Supply Board

MW414 / MW414B Down? Every Minute of Downtime Is Money Bleeding Out — We Ship Today

Your MELSEC-A rack just lost power regulation. The line is cold. Maintenance is standing by. You’ve already pulled the board and confirmed it’s the MW414 or MW414B. Now you need one answer: how fast can I get a replacement on-site?

At siemensplc.com, we stock Mitsubishi Electric MW414 and MW414B power supply circuit boards in Xiamen, China — pre-inspected, ESD-packaged, and ready for same-day dispatch via DHL Express or FedEx International Priority. We’ve handled emergency pulls for automotive stamping lines, chemical plant DCS racks, and food-grade conveyor systems. We know what a stopped line costs per hour. That urgency is built into every step of our fulfillment process.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Diagnosis Before You Pull the Board

Before condemning the MW414/MW414B, rule out upstream causes. A failed board is often the symptom, not the root cause. Check these first:

• Incoming supply voltage — Measure at the base unit input terminals. Voltage sag below spec during motor starts is a common killer of A-Series PSU boards. If your site has weak mains, fit a line conditioner before installing the replacement.
• Backplane short — Remove all I/O and special function modules from the rack. If the PSU board powers up with an empty rack but faults under load, you have a shorted module downstream — not a failed MW414.
• Fault LED pattern — On A-Series base units, the POWER LED extinguishing while the RUN LED stays on typically points to PSU board failure. Both LEDs off with confirmed input voltage present is a near-certain MW414/MW414B fault.
• Capacitor bulge check — On the failed board, inspect the electrolytic capacitors visually. Bulged or leaking caps confirm thermal aging failure — common in boards that have run 10+ years in high-ambient environments.

Replacement Procedure — Step by Step

1. Isolate power — De-energize the base unit at the upstream breaker. Verify zero voltage at input terminals with a calibrated meter. Do not rely on the front panel switch alone.
2. Record module positions — Photograph the rack before removing any modules. MELSEC-A CPUs reference slot positions for I/O assignment; disturbing module order without documentation creates re-commissioning headaches.
3. Remove the PSU board — The MW414/MW414B is retained by screws at the base unit front panel. Remove screws, slide the board forward, and disconnect the backplane connector. Handle by edges only — ESD damage to the regulation circuitry is irreversible.
4. No DIP switch or address configuration required — Unlike I/O modules, the MW414/MW414B has no user-configurable switches. It is a passive power conversion assembly. Fit the replacement, reconnect the backplane connector, and secure the retaining screws.
5. Firmware note — The PSU board carries no firmware. No version matching or download procedure is required. This is a pure hardware swap.
6. Power-on sequence — Restore input power. Observe POWER LED illumination within 2 seconds. If the LED does not illuminate, re-check backplane connector seating before assuming a second fault.
7. Module re-insertion — Re-insert I/O and special function modules one at a time, cycling power between each insertion if you suspect a downstream short. This isolates any module that may have caused the original PSU failure.
8. Run verification — Force a CPU RUN command and verify all I/O points respond correctly. Log the replacement in your maintenance record with date, board serial number, and incoming supply voltage reading.

Common Fault Codes Associated with MW414/MW414B Failure

• SP. UNIT ERR (A-Series CPU diagnostic) — Can appear when PSU voltage sag causes CPU brownout mid-scan. Replace PSU board and check input supply quality.
• WDT error on CPU module — Intermittent PSU board failure causing voltage dropout triggers watchdog timeout. If WDT errors are non-reproducible and the CPU checks out clean, suspect the PSU board first.
• No communication on A-Series network after power cycle — Regulated voltage instability during startup can prevent network modules from initializing. A degraded MW414/MW414B that passes static tests may still fail under dynamic load at startup.

Reliability in Harsh Conditions

The MW414/MW414B was engineered for the industrial environments where MELSEC-A systems were deployed — not climate-controlled server rooms. These boards have accumulated decades of field hours in conditions that would destroy consumer-grade electronics:

• Vibration — A-Series installations in press shops and rolling mills subject the rack to continuous mechanical vibration. The MW414/MW414B PCB uses through-hole component construction with wave-soldered joints — significantly more vibration-resistant than surface-mount assemblies. Boards that have failed in vibration environments typically show cracked solder joints at heavy transformer or capacitor leads, not component failure.
• Thermal cycling — Foundry and furnace control panels routinely see ambient temperatures of 50–60°C. The MW414/MW414B’s electrolytic capacitors are the primary life-limiting component under sustained high-temperature operation. Boards sourced from NOS stock have full remaining capacitor life; inspected surplus units are evaluated for capacitor condition before dispatch.
• Humidity and condensation — Coastal and tropical installations expose A-Series racks to high relative humidity. The MW414/MW414B PCB conformal coating provides baseline protection, but boards that have operated in uncontrolled humidity for extended periods may show corrosion at connector pins. Our pre-shipment inspection includes connector pin condition assessment.
• EMI and line transients — Heavy industrial sites with large motor drives generate significant conducted and radiated interference. The MW414/MW414B’s regulation stage includes filtering designed to maintain output stability under these conditions. If your site has a history of PSU board failures at shorter-than-expected intervals, fit a dedicated line filter or isolation transformer upstream of the base unit.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL Express and FedEx International Priority departures to all major industrial regions. Here’s how an emergency order moves:

• Order confirmation by 14:00 CST → Same-day dispatch. Parts are pulled, inspected, ESD-bagged, foam-packed, and handed to the carrier the same afternoon.
• DHL Express Worldwide — Transit time: 1–3 business days to Europe, North America, Southeast Asia, and the Middle East. Door-to-door with real-time tracking.
• FedEx International Priority — Available as an alternative carrier for destinations where FedEx has stronger coverage. Same-day handover applies.
• Commercial documentation — Commercial invoice, packing list, and HS code declaration prepared for every shipment. COO certificate available on request. We handle export customs clearance from the China side; import duties are the buyer’s responsibility per destination country regulations.
• Emergency freight options — For critical shutdowns where standard express is not fast enough, contact us directly. We can arrange charter courier or hand-carry options for select destinations.
• Tracking notification — AWB number sent to your email within 2 hours of dispatch. We monitor shipments proactively and flag any carrier delays to you before you need to ask.

We have shipped MW414/MW414B boards to automotive plants in Germany, petrochemical facilities in the Middle East, food processing lines in Southeast Asia, and steel mills in South America. The logistics process is the same every time: fast, documented, and tracked end-to-end.
