Mitsubishi Electric PD21 PD21B Power Supply Module

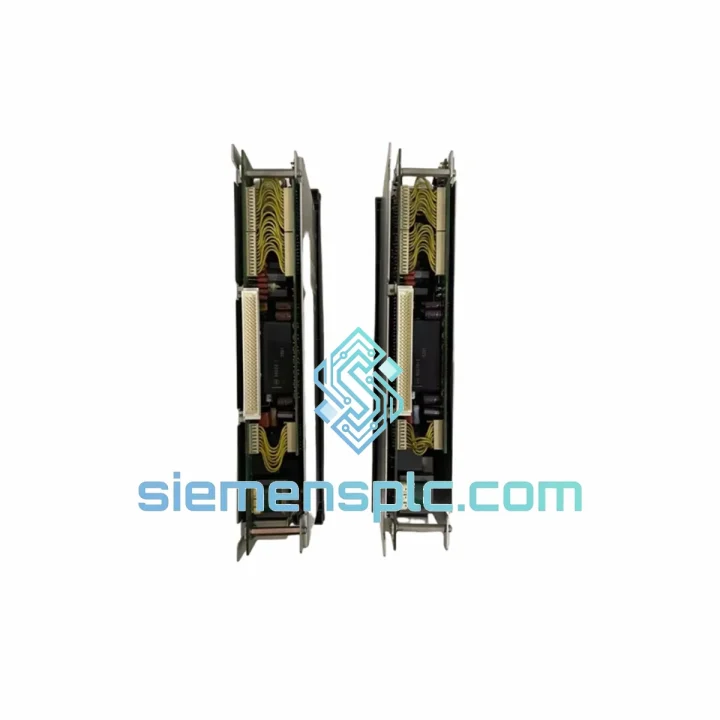

Mitsubishi Electric PD21 / PD21B — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your MELSEC-A line is dark. Every minute the conveyor sits idle, every shift the press brake stays cold, the losses compound. The PD21 and PD21B are the single point of failure that kills the entire A-Series backplane — no power module, no CPU, no I/O, no production. We stock them. We ship them. DHL Express from Xiamen, door-to-door, typically 2–5 business days to most industrial hubs worldwide. This is not a lead-time quote. This is a ready-to-ship unit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom recognition — how you know it’s the PD21/PD21B and not the CPU or backplane:

• All module LEDs on the base unit are completely dark — no RUN, no ERR, no I/O indicators. If even one LED is lit, the power module is likely not the root cause.
• Multimeter across the 5 V DC bus on the backplane reads below 4.75 V or zero. Anything under 4.75 V will cause the CPU to fail to initialize.
• The PD21/PD21B has an internal thermal fuse. Overload events — shorted I/O modules, failed CPU drawing excess current — will blow this fuse permanently. The module will not reset; it must be replaced.
• Intermittent resets correlating with ambient temperature spikes above 55 °C suggest the module’s thermal protection is tripping. Check enclosure ventilation before condemning the module outright.

Step-by-step replacement procedure (field-verified):

1. De-energize and LOTO. Isolate the AC input to the panel. Confirm zero voltage at the PD21 input terminals with a calibrated meter. Do not rely on the main breaker alone — verify at the module terminals.
2. Document the wiring. Photograph the AC input terminal block before disconnecting. The PD21 and PD21B share the same terminal layout, but field wiring colors vary by installation vintage.
3. Remove the module. Loosen the two M4 mounting screws at top and bottom of the module face. Slide the module straight out of the base unit slot — do not rock or lever it, as the backplane connector pins are fragile on aged A-Series bases.
4. Inspect the backplane connector. Before inserting the replacement, visually check the 64-pin backplane connector for bent pins or carbon tracking from a fault event. A damaged backplane will destroy a new power module within minutes of energization.
5. Seat the replacement module. Align the module guide rails and push firmly until the backplane connector is fully engaged. Secure the mounting screws — finger-tight plus a quarter turn. Over-torquing cracks the module housing.
6. Verify AC input wiring. Reconnect L, N, and PE to the terminal block per your documentation. Confirm PE continuity to the panel earth bar with a continuity tester.
7. Power-up sequence. Apply AC power. The PD21/PD21B has no DIP switches, no address configuration, and no firmware — it is purely a power conversion device. If the CPU RUN LED illuminates within 3 seconds, the replacement is successful. If ERR flashes, the fault is in the CPU or I/O modules, not the power supply.
8. PD21 vs PD21B — which do you have? Both are functionally interchangeable in standard A-Series base units. The PD21B designation indicates a minor revision to the internal switching topology for improved EMI performance. Either unit can replace the other without any configuration change.

Common fault codes associated with power supply failure on MELSEC-A systems:

• SP. UNIT DOWN (LED pattern: ERR solid, RUN off): CPU cannot detect backplane power. First suspect: PD21/PD21B failure.
• WDT error on startup: If the 5 V rail is marginal (4.75–4.90 V), the CPU watchdog timer may trip before the program scan completes. Replace the power module before chasing CPU faults.
• Random I/O dropout with no CPU error: Marginal 5 V output causing I/O module brown-out. Measure the backplane bus voltage under load — if it sags below 4.80 V with all modules installed, the power module is degraded.

Reliability in Harsh Conditions

The PD21 and PD21B were engineered for the realities of heavy industrial environments — not laboratory conditions. Mitsubishi Electric’s MELSEC-A platform was designed to IEC 61131-2 mechanical and environmental requirements, and the power supply module is the most thermally and electrically stressed component in the system.

Vibration resistance: The module’s internal components are conformally coated and mechanically secured to withstand continuous vibration up to 10–57 Hz at 0.075 mm amplitude and 57–150 Hz at 9.8 m/s² — consistent with the MELSEC-A hardware specification. This covers the vibration profiles of press brakes, compressor rooms, and rolling mill control cabinets.

Thermal performance: Rated for continuous operation at 0–55 °C ambient (with adequate enclosure ventilation). The internal switching regulator maintains output voltage regulation within ±1% across the full temperature range. Units stored in our Xiamen warehouse are kept at controlled temperature and humidity — no shelf-degraded capacitors, no oxidized connectors.

Humidity and contamination: Designed for 10–90% RH non-condensing environments. The conformal coating on the PCB provides a barrier against airborne conductive dust and light chemical vapors common in paint shop and chemical plant control rooms. For environments with heavy condensation risk, verify your enclosure IP rating — the module itself is not sealed.

Electrical noise immunity: The wide-range AC input (100–240 V) includes internal filtering for common-mode and differential-mode noise. The PD21B revision specifically improved conducted emissions performance, making it the preferred choice for installations near variable-frequency drives and servo amplifiers.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL Express and FedEx International Priority connections to major industrial regions worldwide.

Standard express routing from Xiamen:

• Southeast Asia (Thailand, Vietnam, Indonesia, Malaysia): 2–3 business days via DHL Express
• South Asia (India, Pakistan, Bangladesh): 3–4 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia, Qatar): 3–5 business days via DHL Express
• Europe (Germany, Italy, Poland, Turkey): 4–6 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• Africa and South America: 5–8 business days depending on destination customs clearance

Export documentation included with every shipment: Commercial invoice, packing list, and certificate of origin. For customers requiring customs pre-clearance documentation, HS code classification support, or specific incoterms (EXW, FOB Xiamen, CIF destination port), contact us before placing your order. We handle the paperwork — you focus on getting your line back up.

Packaging: Each PD21/PD21B unit is individually wrapped in anti-static foam, placed in a rigid corrugated outer carton, and sealed with tamper-evident tape. Gross weight approximately 4.5 kg per unit. Fragile stickers and orientation arrows applied to all carton faces.

Tracking: AWB number provided within 24 hours of dispatch. Real-time tracking via DHL or FedEx portal. For urgent shipments, we can arrange same-day pickup with DHL Express before 15:00 CST on confirmed orders.
