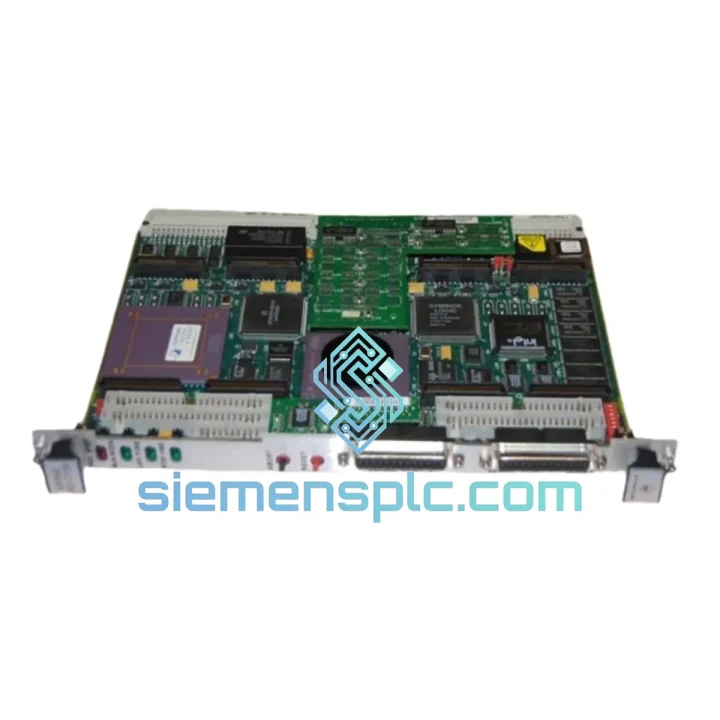

Motorola MVME162-010A VMEbus Embedded Controller – MVME162 Series

Motorola MVME162-010A: MC68040-Based VMEbus Single-Board Controller for Deterministic Industrial Control

The MVME162-010A is a 6U VMEbus single-board computer (SBC) manufactured by Motorola, built around the MC68040 processor running at 25 MHz. Designed for embedded real-time control, SCADA front-end processing, and distributed automation architectures, this module occupies a single VMEbus slot and integrates Ethernet, SCSI-2, and quad-serial communication on one substrate — reducing backplane slot consumption while maintaining full IEEE 1014 bus compliance. Its architecture reflects the engineering discipline of an era when deterministic interrupt response and hardware-level fault isolation were non-negotiable design constraints.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MVME162-010A’s internal architecture centers on the Motorola MC2 ASIC, a custom gate-array device that serves as the primary bus bridge and arbitration engine between the MC68040 local bus and the VMEbus backplane. This design choice eliminates the latency penalties associated with discrete glue-logic implementations: the MC2 handles VMEbus request/grant cycles, DTACK generation, and DMA channel management in hardware, keeping the CPU free for application-layer processing.

EMC and Signal Integrity: The board employs a multi-layer PCB stack with dedicated ground planes between signal layers, a standard practice for VMEbus SBCs operating in electrically noisy industrial enclosures. The P1 and P2 DIN 41612 connectors provide chassis-ground continuity through the backplane, and the board’s metal front panel contributes to the Faraday shielding of the VMEbus chassis. The Z85230 SCC serial controller supports RS-422 differential signaling on all four channels, providing common-mode noise rejection of up to 7 V — adequate for cable runs in motor-drive environments where ground potential differences are common.

Memory Subsystem: The 4 MB DRAM array is organized as a 32-bit-wide bank, allowing the MC68040 to execute longword (32-bit) memory cycles in a single bus transaction. The MVME162Bug firmware performs a full address/data pattern test at power-on, flagging single-bit and multi-bit failures before the OS loader executes — a hardware-level memory integrity gate that prevents silent data corruption in safety-relevant control loops.

SCSI-2 Subsystem: The NCR 53C710 operates in synchronous SCSI-2 mode at up to 10 MB/s, with DMA transfers managed independently of the CPU. In data-acquisition applications, this allows continuous streaming from SCSI-attached storage without introducing jitter into the real-time control task scheduler. The 53C710’s script processor executes SCSI command sequences autonomously, further decoupling I/O latency from CPU interrupt load.

Watchdog and Fault Recovery: The MC2 ASIC integrates a hardware watchdog timer that asserts a board-level reset if the application fails to service it within the configured timeout window. This mechanism operates independently of the CPU and OS, ensuring that a software hang does not leave the VMEbus in an indeterminate state — a critical property in unattended industrial installations.

System Integration Benefits

• Deterministic Interrupt Latency: The MC68040’s on-chip interrupt controller, combined with the MC2 ASIC’s VMEbus IRQ arbitration, delivers consistent interrupt response times — essential for closed-loop PID control and motion sequencing where jitter directly affects process quality.
• Zero-Slot-Penalty Peripheral Integration: Ethernet, SCSI-2, and four serial ports are integrated on the SBC itself, eliminating the need for dedicated I/O expansion boards and preserving VMEbus slots for application-specific I/O modules.
• Multi-Master VMEbus Support: The MVME162-010A supports both VMEbus master and slave transactions, enabling peer-to-peer data exchange between multiple SBCs on the same backplane without CPU intervention — reducing latency in distributed control architectures.
• Network Boot Capability: MVME162Bug supports TFTP-based network booting via the onboard Ethernet port, allowing centralized OS image management across multiple controller nodes — a significant operational advantage in large distributed systems.
• RTOS Compatibility: Validated BSP support for VxWorks 5.x/6.x and LynxOS 3.x/4.x ensures that existing real-time application code can be deployed without OS-level porting effort.
• Diagnostic Transparency: MVME162Bug provides a comprehensive command-line diagnostic environment accessible via serial console, enabling field engineers to execute memory tests, Ethernet loopback tests, and SCSI device enumeration without specialized test equipment.
• Drop-In Board Replacement: Identical form factor, connector pinout, and firmware compatibility with all MVME162 hardware revisions allows failed boards to be replaced without chassis modification, cable rerouting, or software reconfiguration.
• Long-Term Spare Parts Availability: For control systems with 15–25 year operational lifespans, maintaining a verified spare-parts inventory of MVME162-010A boards is a lower-cost alternative to full platform migration — preserving existing software investment and operator familiarity.

Quality Assurance & Global Logistics

Every MVME162-010A unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection covers PCB surface condition, component seating integrity, DIN 41612 connector pin alignment, and front-panel handle condition. Functional verification includes MVME162Bug firmware boot confirmation via RS-232 serial console, full DRAM address/data pattern test, Ethernet controller presence verification via firmware diagnostics, and SCSI controller enumeration. Units are graded at time of quotation: Grade A (excellent cosmetic and functional condition) or Grade B (fully functional with minor cosmetic wear). All units are packed in anti-static shielding bags with humidity indicator cards, placed in foam-lined cartons rated for international air freight handling.

Shipping is executed via DHL Express, FedEx International Priority, or UPS Worldwide — with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. Commercial invoice, packing list, and certificate of conformance are included with every shipment. Export documentation for controlled-destination compliance is available upon request. All units carry a 12-month functional warranty from the date of shipment, covering verified hardware defects under normal operating conditions.
