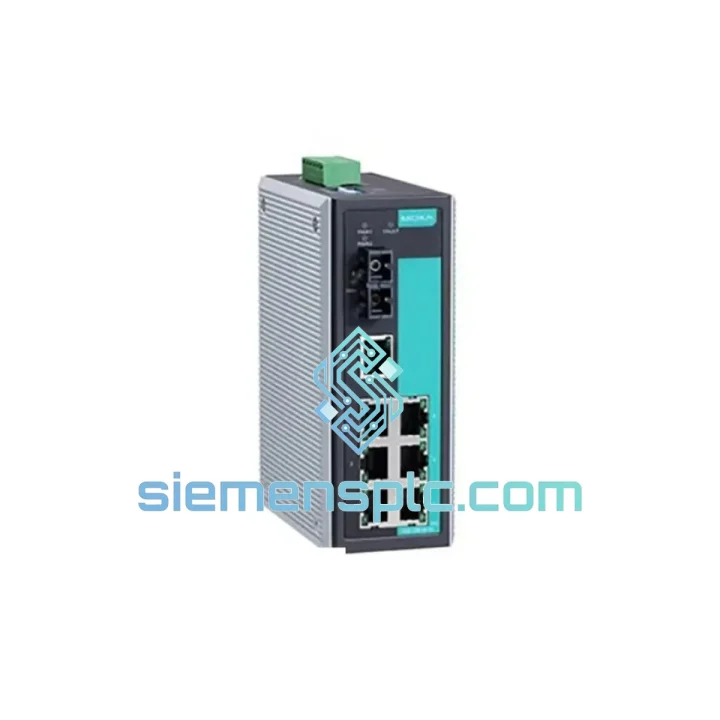

MOXA EDS-308-M-SC: 8-Port Unmanaged Industrial Ethernet Switch with Multi-Mode SC Fiber Uplink and Relay Alarm Output

The EDS-308-M-SC occupies a well-defined role in the physical layer of industrial control networks: it bridges copper-based device-level segments to a fiber backbone while simultaneously providing a hardware-level alarm relay that can be wired directly into a PLC digital input or annunciator panel. In a typical DCS or SCADA topology, this switch sits at the field cabinet level — aggregating seven 10/100BaseT(X) copper ports from PLCs, HMIs, remote I/O racks, and intelligent field devices, then forwarding traffic upstream over a 100BaseFX multi-mode SC fiber link that is immune to ground-loop currents and conducted EMI. The relay output closes or opens on power-loss or link-down events, giving the control system deterministic fault notification without polling overhead. This combination of fiber uplink, redundant DC power input, and relay alarm in a compact DIN-rail housing makes the EDS-308-M-SC a standard specification item for panel builders working on factory automation, power utility, water treatment, and oil-and-gas SCADA projects.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The EDS-308-M-SC is built around a dedicated industrial Ethernet ASIC rather than a repurposed consumer switching chipset. Several hardware design decisions are worth examining from an engineering standpoint.

Optical Isolation on the Fiber Port: The 100BaseFX SC interface uses a PIN photodiode receiver and a laser diode transmitter operating at 1300 nm. The optical path provides inherent galvanic isolation between the fiber segment and the copper backplane — there is no electrical continuity between the two media domains. This eliminates ground-loop currents that would otherwise corrupt data frames in substations or motor-drive cabinets where chassis ground potentials can differ by tens of volts across cable runs.

Relay Output Alarm Logic: The relay contact is driven by a dedicated supervisory circuit that monitors two independent conditions: (1) DC input voltage on both V1 and V2 rails falling below the undervoltage threshold, and (2) link-state registers on any monitored port dropping to link-down. The relay is fail-safe by default — it is energized during normal operation and de-energizes on fault, so a loss of switch power itself triggers the alarm. This normally-closed architecture means a wiring break in the alarm circuit also generates a fault signal, which is the correct behavior for safety-critical monitoring loops.

Redundant Power Input Architecture: V1 and V2 inputs are diode-ORed internally. Each input accepts 12–48 VDC, allowing the switch to be fed from two independent 24 VDC rails — for example, one from the main panel PSU and one from a UPS-backed rail. The diode-OR circuit prevents back-feed between supplies and ensures seamless switchover with no frame loss when one supply fails. The wide input range (12–48 VDC) accommodates both 24 VDC process control systems and 48 VDC telecom-grade power plants without a separate DC-DC converter.

EMC Design: The metal housing provides a Faraday shield that attenuates radiated emissions and improves immunity to external RF fields. Internal PCB layout follows IEC 61000-4 series design rules: signal traces are routed away from power planes, decoupling capacitors are placed at each IC power pin, and the chassis ground is bonded to the DIN-rail clip to provide a low-impedance path for common-mode noise currents. The switch passes IEC 61000-4-4 (EFT/Burst) at 2 kV and IEC 61000-4-5 (Surge) at 2 kV line-to-earth, which are the standard immunity levels required for industrial control panel installation.

Thermal Management: The unit is convection-cooled with no moving parts. The metal enclosure acts as a heat spreader, conducting heat from the switching ASIC and power supply components to the outer surface. At the rated maximum ambient of 60°C, internal junction temperatures remain within component derating limits, giving the >500,000-hour MTBF figure credibility for continuous 24/7 operation in sealed control cabinets.

System Integration Benefits

• Deterministic Fault Propagation: The relay output delivers a hardware-level alarm signal within milliseconds of a link-down or power-loss event, allowing the PLC to execute a safe-state routine before the SCADA system detects the network fault through software polling — reducing undetected fault windows from seconds to sub-100 ms.
• Fiber Backbone Noise Immunity: Replacing a copper uplink with the 100BaseFX SC port eliminates susceptibility to conducted EMI from variable-frequency drives, contactors, and arc welders that share the same cable tray — a common root cause of intermittent CRC errors in copper-only Ethernet segments.
• Plug-and-Play Commissioning: The unmanaged architecture requires zero configuration — no IP address assignment, no VLAN setup, no spanning-tree tuning. A panel builder can install and verify the switch in under five minutes, reducing commissioning labor on large projects with dozens of field cabinets.
• Dual-Supply Redundancy Without External Hardware: The built-in diode-OR power input eliminates the need for an external power redundancy module (e.g., a separate ORing unit), saving panel space and reducing BOM cost while meeting IEC 62443 availability requirements for process control networks.
• Wide DC Input Range for Multi-Voltage Panels: Acceptance of 12–48 VDC allows a single switch model to be standardized across 24 VDC automation panels and 48 VDC telecom or railway power systems, simplifying spare-parts inventory for maintenance teams.
• DIN-Rail Form Factor for Compact Cabinets: The 54 mm width occupies less than two standard DIN-rail module slots, allowing it to be installed alongside PLCs, terminal blocks, and circuit breakers in space-constrained field junction boxes without a dedicated network enclosure.
• Long-Distance Fiber Reach for Distributed Architectures: The 5 km multi-mode fiber reach supports star-topology fiber runs between a central control room switch and remote field cabinets in large plants — distances that exceed the 100 m limit of copper Fast Ethernet and eliminate the need for fiber media converters at each end.
• High MTBF for Continuous Process Applications: The >500,000-hour MTBF (Telcordia SR-332 methodology) translates to a predicted mean time between failures exceeding 57 years, supporting maintenance interval planning for continuous-process industries where unplanned downtime carries high financial penalties.
