National Instruments PCI-6224 DAQ Card – M Series

National Instruments PCI-6224 — 32-Channel Analog Input Data Acquisition Card for High-Density PCI Bus Measurement Systems

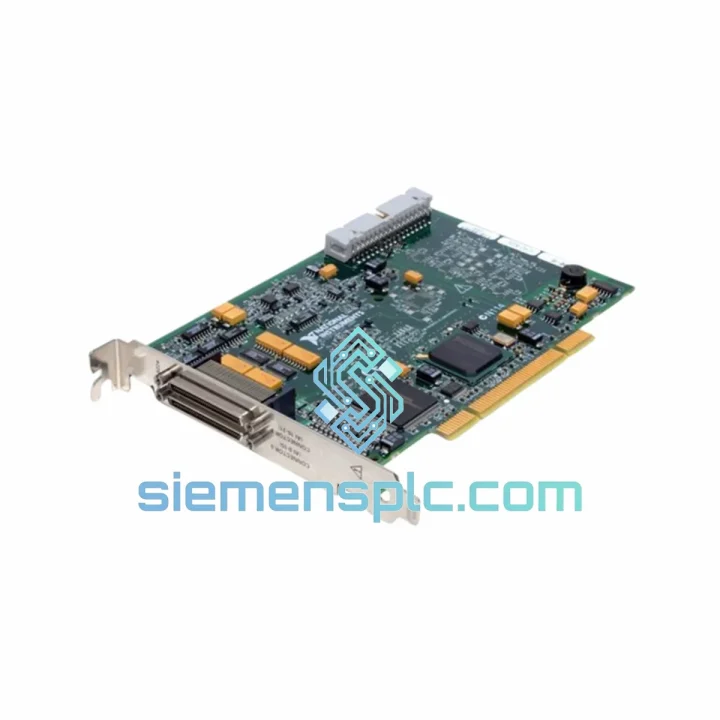

The National Instruments PCI-6224 is a 32-channel, 16-bit resolution, 250 kS/s aggregate analog input data acquisition card designed for the 32-bit PCI bus. Positioned within NI’s M Series DAQ platform, the PCI-6224 addresses applications where channel density, measurement accuracy, and software ecosystem depth are primary engineering constraints. Unlike entry-level DAQ cards that sacrifice resolution for throughput, the PCI-6224 maintains 16-bit ADC fidelity across all 32 single-ended (or 16 differential) channels while sustaining a 250 kS/s aggregate scan rate — a balance that makes it suitable for multi-channel process monitoring, automated test equipment (ATE) integration, and laboratory-grade signal acquisition.

The card interfaces via a standard 32-bit, 33 MHz PCI slot, drawing power directly from the host backplane without requiring external supply rails. Its 68-pin VHDCI connector provides access to all analog input lines, 32 bidirectional digital I/O lines, and two 32-bit counter/timer channels clocked at 80 MHz. The absence of onboard analog output channels is a deliberate design choice that concentrates silicon area and PCB routing resources on the analog front-end, resulting in tighter input noise specifications and improved channel-to-channel isolation compared to multifunction cards of equivalent vintage.

The PCI-6224 operates under NI-DAQmx, NI’s unified driver architecture, which abstracts hardware register access behind a consistent API available in C/C++, .NET, Python (nidaqmx package), LabVIEW, and LabWindows/CVI. This driver layer handles DMA transfer scheduling, analog input multiplexer sequencing, and hardware-timed task synchronization — functions that would otherwise require direct register manipulation and introduce latency variability in software-timed acquisition loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PCI-6224’s analog front-end is built around NI’s proprietary instrumentation amplifier and successive-approximation register (SAR) ADC architecture. The multiplexer tree preceding the ADC uses a break-before-make switching topology, which eliminates charge injection transients between channel transitions — a critical requirement when scanning channels with differing source impedances in rapid succession. Each channel’s settling time is governed by the RC time constant formed by the source impedance and the ADC’s input capacitance; NI’s M Series architecture specifies a minimum inter-channel delay that accounts for worst-case source impedances up to 1 kΩ without degrading 16-bit accuracy.

The onboard EEPROM stores factory calibration coefficients — gain and offset corrections for each input range — that NI-DAQmx applies in real time during data transfer. This self-calibration architecture means the card can be recalibrated in the field using NI’s MAX (Measurement & Automation Explorer) utility without returning the hardware to a metrology lab, provided a traceable voltage reference is available. The calibration interval recommended by NI is 12 months under standard operating conditions.

EMC performance is achieved through a combination of board-level shielding, ground plane partitioning between the analog and digital domains, and ferrite bead filtering on the PCI power rails. The analog ground plane is isolated from the digital return path and connected at a single star point near the ADC, minimizing digital switching noise coupling into the measurement path. The VHDCI connector shell is tied to chassis ground through the PCI bracket, providing a low-impedance return path for shield currents from connected cables — a detail that significantly affects noise floor in industrial environments with high common-mode interference.

The two 32-bit counter/timer channels operate from an 80 MHz onboard timebase with a frequency accuracy of ±50 ppm. These counters support edge counting, pulse-width measurement, frequency measurement, and hardware-timed pulse generation — functions that are frequently used in conjunction with analog acquisition for encoder position tracking, PWM generation, and event-triggered sampling. The counter outputs can be routed to the RTSI bus (Real-Time System Integration), enabling deterministic synchronization with other NI DAQ cards in the same chassis without software intervention.

System Integration Benefits

• Hardware-timed acquisition eliminates jitter: The PCI-6224’s onboard sample clock drives the ADC conversion sequence independently of the host CPU scheduler, producing inter-sample timing jitter below 50 ns — a figure unachievable with software-timed acquisition loops on general-purpose operating systems.
• DMA transfer architecture reduces CPU overhead: Data is transferred from the onboard FIFO to host memory via PCI bus mastering DMA, freeing the CPU from interrupt-driven data movement and allowing sustained 250 kS/s acquisition without process priority elevation.
• RTSI bus synchronization: The card exposes seven RTSI lines that can carry sample clocks, trigger signals, and counter outputs between multiple NI DAQ cards, enabling phase-coherent multi-card acquisition systems with deterministic channel-to-channel timing.
• Programmable input ranges per channel: Each of the eight input ranges can be assigned independently per scan list entry, allowing simultaneous acquisition of millivolt-level thermocouple signals and ±10 V process signals within a single hardware-timed task.
• Analog triggering with hysteresis: The card supports hardware analog triggering with programmable threshold and hysteresis, enabling pre-trigger and post-trigger data capture without software latency in the trigger detection path.
• 32 bidirectional DIO lines with hardware timing: Digital I/O lines can be clocked at up to 10 MHz using the onboard counter, supporting synchronous handshaking with external instruments, relay control, and pattern generation without a separate digital I/O card.
• NI-DAQmx task-based programming model: The driver’s task abstraction encapsulates channel configuration, timing, triggering, and data transfer into a single object, reducing application code complexity and enabling configuration reuse across different NI hardware without code modification.
• Calibration transparency via MAX: NI Measurement & Automation Explorer provides a graphical interface for viewing calibration history, performing self-calibration, and verifying channel accuracy against known references — reducing maintenance overhead in regulated environments requiring documented calibration records.

Quality Assurance & Global Logistics

Every PCI-6224 unit shipped from our Xiamen, China facility undergoes a structured pre-shipment verification process. Functional testing covers ADC linearity across all eight input ranges, digital I/O continuity, counter/timer frequency accuracy, and PCI bus enumeration under Windows 10/11. Units that exhibit gain error exceeding NI’s published specification limits or show evidence of connector damage are quarantined and not shipped.

Packaging follows ESD-sensitive device handling protocols: the card is placed in a conductive anti-static bag, sealed, and nested in a foam-lined carton with corner protection. Outer carton labeling includes the model number, serial number, and a tamper-evident seal. For international shipments, we prepare commercial invoices with accurate HS code classification (8471.80) and country of origin documentation to facilitate customs clearance in the EU, US, Southeast Asia, and Middle East markets.

Logistics partners include DHL Express, FedEx International Priority, and SF Express International, with typical transit times of 3–5 business days to Europe and North America, and 2–4 business days to Southeast Asia. Tracking numbers are issued within 24 hours of dispatch. For orders requiring expedited delivery, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are covered by cargo insurance up to the declared value. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions; warranty claims are processed with a target turnaround of 10 business days.
