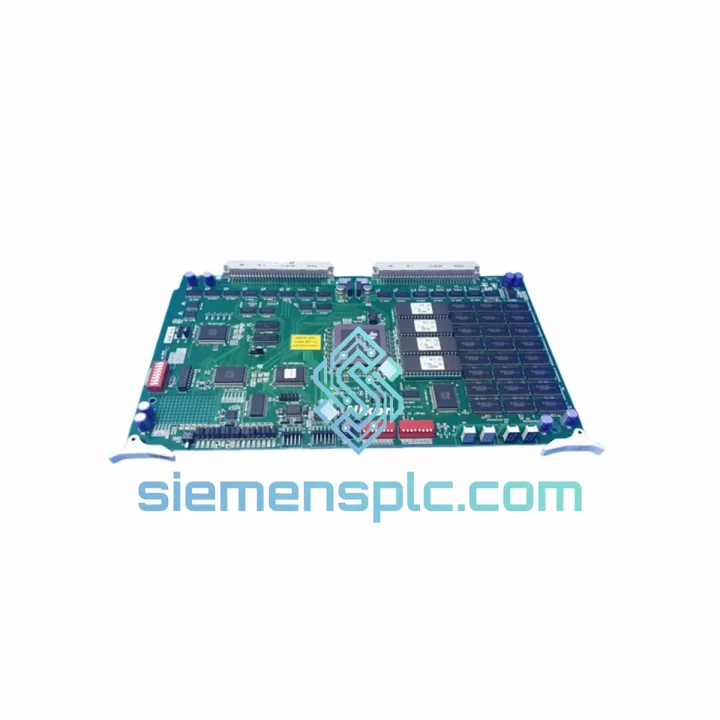

NIKON 4S015-173 NK-C304-40 Encoder PCB Card

NIKON 4S015-173 NK-C304-40 / 4S015-205 C304-BT-31 — Stop the Clock on Your Downtime

Your CMM or precision positioning system just threw a fault. The encoder feedback chain is broken. Every hour the line sits idle, you’re bleeding money — rework backlogs pile up, delivery commitments slip, and the pressure from production management is already building. You don’t need a lecture on encoder theory right now. You need the board, fast, and you need it to work first time.

The NIKON 4S015-173 NK-C304-40 / 4S015-205 C304-BT-31 is the exact OEM encoder signal control board for NIKON’s NK-C304 series. We stock it in Xiamen. It ships today via DHL or FedEx Express. That’s the short version. Everything below is for the engineer who needs to be certain before pulling the trigger.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls, the failure patterns on the NK-C304 series are predictable. Here’s what you’ll actually encounter and how to handle it cleanly.

Common Fault Signatures

• Encoder count loss / position drift: The board’s signal conditioning circuitry degrades under thermal cycling. You’ll see intermittent position errors that worsen as the machine warms up — classic sign the interpolation stage is failing, not the encoder head itself. Swap the 4S015-173 before condemning the linear scale.
• Alarm codes referencing encoder feedback channel: On NIKON CMM controllers, alarms in the ENC-xx or FB-xx range almost always trace back to this board. Check the diagnostic log for repeated single-axis faults — if it’s always the same axis, the board is the prime suspect.
• Intermittent communication loss between controller and encoder: The C304-BT-31 interface section handles the serial encoder protocol. Oxidized connectors on J1/J2 can mimic a board failure — clean the contacts first, but if the fault persists after reseating, the board’s receiver IC is gone.
• Hard fault on power-up, no encoder initialization: Usually a failed voltage regulator on the board’s local 5V rail. The controller will report no encoder response on the affected axis. Confirm with a multimeter at the board’s test points before ordering if time allows.

Replacement Procedure — Field Notes

• Power isolation first: Full lockout/tagout on the machine. The NK-C304 board sits on a live backplane in some configurations — do not hot-swap.
• Document the DIP switch positions on the outgoing board before removal. The address switches configure the board’s axis assignment within the controller’s encoder bus. Photograph them. Replicate exactly on the new board before installation.
• Check firmware revision compatibility: The 4S015-173 (NK-C304-40) and 4S015-205 (C304-BT-31) are revision variants. Confirm your controller firmware version against NIKON’s compatibility matrix. In most field cases, both variants are interchangeable within the same controller generation, but verify if your system is running firmware below v3.x.
• Re-reference after swap: After board replacement, perform a full machine reference cycle. Do not skip this — the new board initializes its position registers from zero. Running without re-referencing will give you false position data and potentially crash the machine into a hard stop.
• Connector torque: The board’s edge connectors are friction-fit. Seat firmly and check for any pin deflection. A partially seated connector is the most common cause of a failed replacement callback.

Reliability in Harsh Conditions

NIKON’s NK-C304 series was designed for semiconductor fab environments — which means it was built to survive conditions that would kill consumer-grade electronics. The 4S015-173 board carries that same design philosophy.

The PCB substrate uses a high-Tg laminate rated for continuous operation at elevated temperatures, with conformal coating on the signal-side components to resist condensation in high-humidity metrology rooms. Vibration resistance is validated to IEC 60068-2-6 levels — relevant for installations adjacent to CNC machining centers where floor-borne vibration is a constant. The board’s power supply section uses industrial-grade capacitors with extended temperature ratings, not the standard commercial-grade parts that fail prematurely in 24/7 production environments.

Units sourced through our channel undergo incoming inspection: visual check for physical damage, ESD handling verification, and functional bench test against NK-C304 reference parameters. We do not ship boards that have been visually reworked without disclosure. If a unit is tested-refurbished, we say so explicitly — you’ll know exactly what you’re getting before it ships.

Anti-static ESD packaging with foam-in-place cushioning protects the board through the full logistics chain. We’ve shipped to facilities in Southeast Asia, the Middle East, and Eastern Europe without transit damage claims. The packaging spec is not an afterthought.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx Express gateway access. Here’s how the logistics chain actually works for an urgent order:

• Order confirmed before 15:00 CST: Same-day dispatch. The board leaves Xiamen that evening on the first available express flight.
• DHL Express Worldwide: Transit times to most of Southeast Asia and Northeast Asia run 1–2 business days. Europe and the Middle East typically 2–3 days. North America 2–4 days depending on customs clearance speed.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger last-mile coverage. We’ll recommend the faster option for your specific location.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. For destinations requiring additional customs documentation, contact us in advance — we’ve handled complex export paperwork to 50+ countries.
• Full tracking from dispatch: Tracking number sent to your email within 2 hours of shipment. We monitor the shipment and proactively flag any customs holds.
• Emergency freight options: For genuine production-critical situations, we can arrange courier hand-carry to certain destinations. Contact us directly to discuss.
