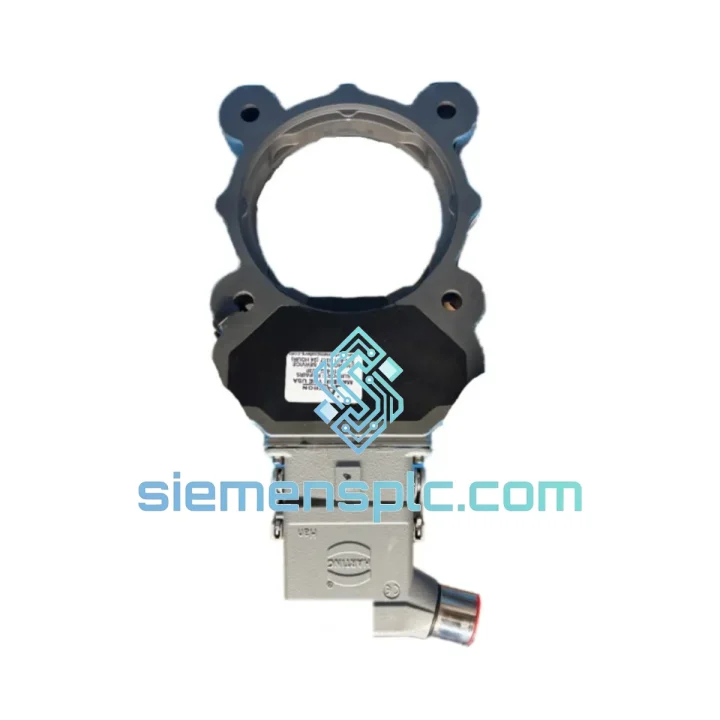

NTron AV56A-1XFX6YXGP50 Incremental Encoder

NTron AV56A-1XFX6YXGP50 — Stop the Clock on Your Downtime. Ship Today.

Every minute your line sits idle costs real money. A failed encoder on a servo axis or conveyor drive doesn’t wait for procurement cycles — and neither do we. The NTron AV56A-1XFX6YXGP50 is in stock at our Xiamen warehouse right now, pre-inspected, boxed, and ready to clear customs today. We’ve shipped this exact part to plants in Southeast Asia, the Middle East, and Europe within 48 hours of order confirmation. If your machine is down, this is the call you make first.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor taught me one thing: most encoder failures aren’t the encoder itself — they’re the installation. Before you condemn the AV56A-1XFX6YXGP50, run through this checklist.

Symptom: Drive reports “Encoder Error” or “Feedback Loss” immediately on power-up
Nine times out of ten this is a wiring issue, not a dead encoder. Check your A/B/Z channel assignments against the drive’s terminal map. Push-pull outputs wired to a differential-input card without a pull-down resistor will float and trigger false faults. Verify supply voltage at the encoder connector under load — a marginal 24 V rail that drops below 18 V during motor acceleration will cause intermittent signal loss that looks like encoder failure.

Symptom: Position drifts or counts are inconsistent at high speed
At 6,000 RPM with 50 PPR, output frequency is 5 kHz — well within spec. If you’re seeing count errors above 3,000 RPM, suspect cable shielding. The shield must be grounded at the controller end only. Grounding both ends creates a ground loop that injects noise directly into the signal lines. Use shielded twisted-pair, maximum 30 m run. Beyond 30 m, insert a line driver or switch to a differential output variant.

Symptom: Z-channel index pulse missing or erratic
The Z pulse is a single narrow pulse per revolution — typically 90° wide at 50 PPR. If your homing routine never completes, verify the controller’s HSC input filter time constant is set below 100 µs. An overly aggressive input filter will swallow the Z pulse entirely. On Siemens S7-1200, set the hardware filter to 6.4 µs or lower for reliable Z detection at this resolution.

Physical replacement procedure:

1. De-energize the drive and lock out the axis. Confirm zero voltage at the motor terminals before touching the encoder.
2. Photograph the existing cable routing and connector orientation before disconnecting — you’ll thank yourself later.
3. Loosen the encoder mounting clamp or flange screws. Do not pry the encoder body; the optical disc is fragile. Slide it straight off the shaft.
4. Inspect the shaft for fretting corrosion or burrs. Clean with isopropyl alcohol. A rough shaft will damage the new encoder’s bore seal within weeks.
5. Slide the AV56A-1XFX6YXGP50 onto the shaft. Tighten the clamp to the manufacturer’s specified torque — over-tightening crushes the bearing and kills the unit prematurely.
6. Reconnect wiring per the original photograph. Power up the drive in encoder test mode before enabling the axis.
7. Perform a homing cycle and verify Z-pulse detection. Log the position count at the home switch for future reference.

No DIP switches or firmware matching required for this model — the AV56A-1XFX6YXGP50 is a passive incremental device. Resolution is fixed at 50 PPR by the optical disc; there is no field-configurable addressing. If your application requires a different PPR, that must be specified at order time as a different part number.

Reliability in Harsh Conditions

The AV56A-1XFX6YXGP50 is not a lab instrument — it’s built for the floor. The 56 mm aluminum housing is machined to tight tolerances, giving it the structural rigidity to handle the vibration loads common in conveyor drives and packaging machinery without the bearing preload shifting over time. The optical sensing element sits behind a glass disc that is bonded, not press-fit, so thermal cycling between −10 °C and +70 °C doesn’t introduce disc runout that degrades signal quality.

IP50 protection keeps metal swarf and coarse dust out of the optical path — the failure mode that kills most encoders in machining environments. The push-pull output stage is built with industrial-grade transistors rated for continuous operation at 70 °C ambient, not the consumer-grade components that derate sharply above 50 °C. In high-humidity coastal or tropical plant environments, the sealed bearing and conformal-coated PCB prevent the condensation-induced corrosion that causes intermittent signal faults months after installation.

We subject every batch to a functional burn-in at elevated temperature before dispatch. Units that show any count error, signal asymmetry, or supply current anomaly during burn-in are quarantined. What ships to you has already survived the conditions your plant will throw at it.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport, one of China’s primary air cargo hubs with direct freighter connections to Frankfurt, Dubai, Singapore, and Los Angeles. That geography is deliberate — it means your part moves from our shelf to an aircraft in hours, not days.

Standard dispatch process:

• Order confirmed before 14:00 CST: same-day dispatch via DHL Express or FedEx International Priority.
• Order confirmed after 14:00 CST: next-morning dispatch, typically arriving at destination within 3–5 business days to Europe, Middle East, and Southeast Asia; 4–6 days to the Americas.
• All shipments include a commercial invoice, packing list, and Certificate of Conformance. HS code 8543.70 is pre-declared to minimize customs clearance delays.
• Tracking number provided within 2 hours of dispatch. We monitor shipments proactively — if a customs hold occurs, we contact you before you contact us.
• For critical plant-down situations, contact us directly on WhatsApp for priority queue handling and real-time shipment updates.

We’ve shipped to plants in Germany, Thailand, Saudi Arabia, Australia, and Brazil. The process is the same every time: fast, documented, and traceable end to end.
