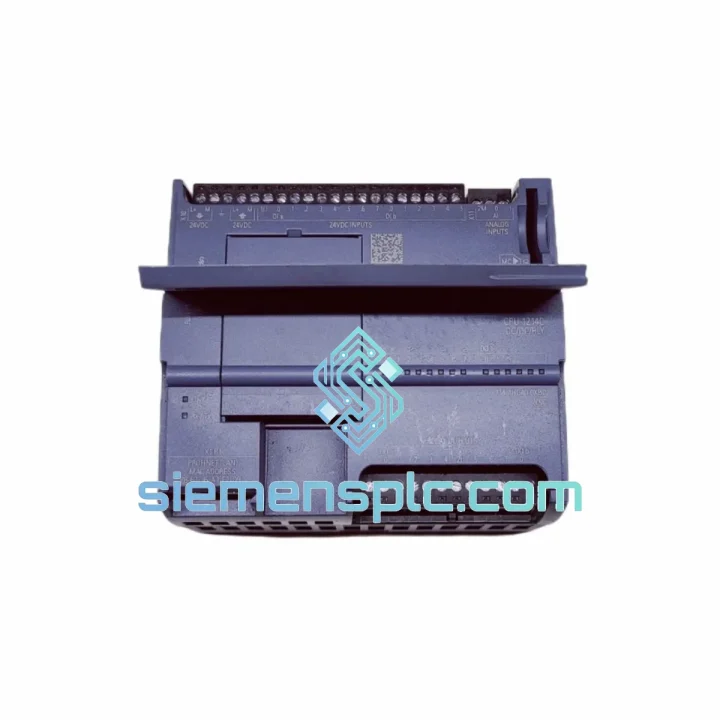

Siemens 6ES7214-1HG31-0XB0 PLC CPU – S7-1200 Series

Siemens 6ES7214-1HG31-0XB0 CPU 1214C DC/DC/DC — Compact Controller for Mid-Scale Discrete and Process Automation

The 6ES7214-1HG31-0XB0 is the DC/DC/DC variant of the CPU 1214C within the SIMATIC S7-1200 family. It occupies the upper tier of the S7-1200 compact CPU range, positioned above the CPU 1211C and CPU 1212C in terms of integrated I/O density and expandability headroom. The unit integrates 14 digital inputs (24 V DC sourcing/sinking), 10 digital outputs (24 V DC, 0.5 A per channel, transistor), and 2 analog inputs (0–10 V, 10-bit resolution) directly on the CPU housing — eliminating the need for a dedicated I/O module in smaller machine configurations. A single signal board slot on the front face allows inline expansion without consuming backplane width.

The CPU executes a 32-bit instruction set on a proprietary Siemens ASIC-based processing core. Bit logic operations complete in 0.08 µs; floating-point math resolves in 2.3 µs. Work memory is 100 KB, with 4 MB load memory (integrated Flash). Retentive data memory is 10 KB, backed by an integrated supercapacitor that sustains data retention for a minimum of 20 days at 40 °C without external battery. The real-time clock maintains ±60 s/month accuracy and is synchronized via NTP over PROFINET when a network time source is configured in TIA Portal.

The onboard PROFINET interface (RJ45, 10/100 Mbit/s, auto-MDI/MDIX) supports simultaneous operation as an IO Controller, IO Device, and I-Device — enabling both upstream HMI communication and downstream distributed I/O management from a single port. The CPU supports up to 16 Ethernet connections in parallel, including S7 communication, Modbus TCP, Open User Communication (OUC), and the integrated web server. The web server provides read access to variable tables, data blocks, and diagnostic buffers without requiring TIA Portal on the client machine.

Backplane expansion is handled via the integrated local bus on the right side of the housing. Up to 8 signal modules (SM 1221/1222/1223/1231/1232/1234) and up to 3 communication modules (CM 1241, CM 1243-5, CM 1242-5) can be attached, yielding a maximum local I/O configuration of 284 digital I/O points and 37 analog I/O channels before distributed I/O is considered. The local bus operates at a fixed cycle synchronized with the CPU scan cycle, ensuring deterministic I/O update latency across all attached modules.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CPU 1214C employs optocoupler-based galvanic isolation on all 14 digital input channels. Each input channel uses a dedicated phototransistor stage with a nominal input threshold of 15 V DC (logic high) and a maximum input voltage of 30 V DC, providing a 5 V noise margin above the 24 V DC nominal rail. The isolation barrier sustains 500 V AC (rms) between the field-side input circuit and the CPU logic bus, which is the primary mechanism for suppressing common-mode transients generated by inductive load switching on the same 24 V DC distribution rail.

The 10 transistor outputs are organized in two groups sharing a common source terminal (M terminal). Each output channel incorporates an electronic short-circuit protection circuit that limits fault current to approximately 1.5 A before latching off, protecting both the output driver MOSFET and the field wiring. The output stage supports a maximum switching frequency of 1 kHz for standard digital outputs; when configured as PTO (Pulse Train Output) channels, the same physical outputs operate at up to 100 kHz with hardware-timed pulse generation managed by the CPU’s motion control co-processor — bypassing the scan cycle to maintain pulse accuracy independent of program execution time.

The 6 high-speed counter (HSC) channels share the same input hardware as the standard DI channels but are routed through a dedicated hardware counter ASIC that operates asynchronously to the CPU scan cycle. This architecture allows the HSC to capture encoder pulses at up to 100 kHz (single-phase) or 80 kHz (A/B quadrature) without missing counts during long scan cycles caused by complex program logic. The HSC ASIC transfers count values to the CPU process image via a direct memory access (DMA) mechanism at the start of each scan cycle.

EMC design follows IEC 61000-4 series test standards. The CPU housing is a die-cast zinc alloy chassis with continuous ground bonding to the DIN rail clip, providing a low-impedance path to the panel earth. Internal PCB layers include a dedicated ground plane beneath the PROFINET magnetics to suppress radiated emissions from the Ethernet PHY. The power supply input incorporates an LC filter stage that attenuates conducted interference on the 24 V DC supply line, rated to EN 55011 Class A limits.

System Integration Benefits

• Deterministic scan cycle execution: The CPU guarantees a fixed OB1 cycle time configurable from 1 ms to 6,000 ms, with cycle time monitoring via watchdog that triggers a STOP transition if the cycle overruns the configured limit — preventing undefined machine states during program faults.
• Integrated motion control via PLCopen: The CPU natively executes PLCopen Motion Control function blocks (MC_Power, MC_MoveAbsolute, MC_MoveRelative, MC_Home) for single-axis positioning via PTO outputs, eliminating the need for a dedicated motion controller in single-axis applications.
• Transparent diagnostics via PROFINET: The CPU populates a 64-entry diagnostic buffer accessible via TIA Portal, web server, or S7 communication. Each entry includes a timestamp (RTC-synchronized), event class, and fault address — enabling root-cause analysis without physical access to the panel.
• Scalable communication stack: Simultaneous support for S7-1500 PUT/GET, Modbus TCP client/server, ISO-on-TCP, UDP, and SMTP (email notification on alarm) from a single PROFINET port reduces gateway hardware requirements in mixed-protocol installations.
• Data logging to SIMATIC Memory Card: The CPU supports structured data logging to an optional SIMATIC Memory Card (SD-format, up to 32 GB) using the DataLogCreate/DataLogWrite system function blocks, enabling on-device process historian functionality without a SCADA server.
• Firmware update without TIA Portal: Firmware can be updated via the SIMATIC Memory Card by placing the firmware image file on the card and cycling power — reducing maintenance downtime in remote installations where TIA Portal access is not available.
• Integrated web server for remote monitoring: The built-in web server (HTTP/HTTPS) provides read/write access to variable tables and data blocks from any standard browser, supporting up to 30 simultaneous user-defined web pages created with the Web Control Builder in TIA Portal.
• Know-how protection and copy protection: Individual function blocks can be password-protected (know-how protection) to prevent unauthorized code inspection. Binding a program to a specific CPU serial number (copy protection) prevents unauthorized replication of machine programs — a critical feature for OEM machine builders protecting proprietary control logic.

Quality Assurance & Global Logistics

Every 6ES7214-1HG31-0XB0 unit supplied by siemensplc.com is sourced through verified procurement channels with documented traceability. Physical authenticity inspection covers label integrity, hologram verification, housing parting-line consistency, and connector pin geometry — all cross-referenced against Siemens OEM reference standards maintained in our technical database. Functional verification includes power-on self-test confirmation, firmware version readout via TIA Portal, and I/O channel response validation prior to dispatch.

Units are packaged in anti-static ESD shielding bags, placed in foam-lined cartons rated for air freight vibration profiles per ISTA 2A. Each shipment includes a siemensplc.com inspection certificate, commercial invoice, and packing list. Certificate of origin and HS code documentation (HS 8537.10) are provided upon request to support customs clearance in regulated import markets.

Dispatch is from our Xiamen, China warehouse. In-stock orders are typically shipped within 1–2 business days. Standard international transit times: 3–5 business days via DHL Express or FedEx International Priority; 5–7 business days via UPS Worldwide Expedited. Sea freight consolidation is available for bulk orders exceeding 50 units. All shipments are covered by cargo insurance. A 12-month warranty applies from the dispatch date, covering manufacturing defects and DOA (Dead on Arrival) conditions.
