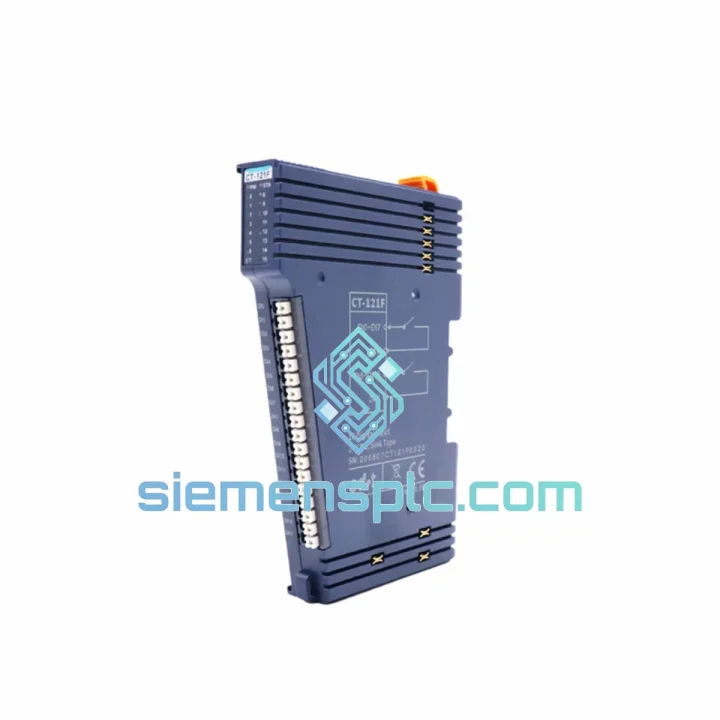

ODOT CT-121F I/O Expansion Module

ODOT CT-121F: Stop the Bleed — Get Your Line Back Online Before the Next Shift

It’s 02:00. The alarm panel is lit up. Your CT Series I/O node has gone dark and the PLC is throwing a rack fault. Every minute of downtime on a production line costs real money — and the clock is running. The ODOT CT-121F Distributed I/O Expansion Module is on the shelf in Xiamen right now. We’ve shipped to plants in Germany, Malaysia, Mexico, and the UAE within 48 hours of an emergency call. This page exists because downtime doesn’t wait for business hours.

The CT-121F is a compact, DIN-rail-mounted I/O expansion node within ODOT’s CT Series distributed I/O architecture. It extends digital and analog I/O capacity across the CT backplane bus without requiring a controller swap or full rack replacement. If your existing node has failed — whether from a surge, moisture ingress, or simply end-of-life — the CT-121F is a direct drop-in replacement that restores your I/O map and gets your process logic executing again.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most CT-121F failures fall into four categories. Here’s how to diagnose fast and replace clean:

1. Rack Fault / Module Not Recognized
The coupler gateway throws a “module missing” or “configuration mismatch” error. Before pulling the module, check the backplane connector pins for corrosion or mechanical damage. A bent pin on the bus connector is a common culprit after vibration exposure. If the connector is clean, the module’s internal ASIC has likely failed — replace the CT-121F unit. After seating the new module, power-cycle the coupler to force a fresh rack scan. Do not hot-swap without confirming your coupler firmware supports it.

2. Address Conflict After Replacement
The CT Series uses automatic slot-based addressing. The CT-121F does not have physical DIP switches for address assignment — its slot position on the backplane determines its logical address in the I/O map. Seat the replacement module in the exact same physical slot as the failed unit. If you’ve rearranged the rack during troubleshooting, re-download the hardware configuration from your engineering station to re-sync the address table.

3. Firmware Compatibility
If you’re replacing an older CT-121F with a newer production batch, check the coupler gateway firmware version. ODOT periodically releases coupler firmware updates that add support for revised module hardware revisions. A firmware mismatch can cause the coupler to report the new module as “unknown device.” Download the latest coupler firmware from ODOT’s support portal before commissioning the replacement.

4. Partial I/O Loss — Channels Not Responding
If only specific channels are dead while others work, the issue is often field wiring rather than the module itself. Check terminal block torque (ODOT specifies 0.5–0.6 Nm for signal terminals), verify 24 V DC field power at the module’s power terminals, and confirm the channel is not disabled in software. If all wiring checks pass and the channel remains dead, the module’s internal optocoupler for that channel has failed — full module replacement is the correct action.

5. Post-Replacement Checklist

• Confirm module seated fully — backplane latch clicks into place
• Verify slot position matches original hardware configuration
• Power cycle coupler after module insertion
• Check coupler diagnostic LEDs: BUS OK + RUN = normal operation
• Force a full I/O scan from the PLC and verify all channel states
• Log the replacement in your maintenance record with date and batch number

Reliability in Harsh Conditions

The CT-121F is not a lab instrument. It’s built for the floor — and the floor is unforgiving. ODOT’s CT Series modules are validated against IEC 61131-2 environmental requirements, which means the CT-121F has been tested for continuous operation under conditions that would kill consumer-grade electronics within weeks.

Vibration: Sinusoidal vibration testing per IEC 60068-2-6 at 10–150 Hz, 1g acceleration. The DIN-rail locking mechanism and internal PCB mounting are designed to prevent connector fatigue under sustained mechanical vibration — a critical factor in press lines, compressor rooms, and mobile equipment panels.

Thermal Cycling: The module’s operating range of -20°C to +60°C covers the majority of industrial environments globally, from unheated outdoor enclosures in northern climates to non-air-conditioned machine rooms in tropical facilities. Internal components are selected for low thermal drift to maintain signal accuracy across the full temperature range.

Humidity and Condensation: Conformal coating on the PCB provides a barrier against moisture ingress in high-humidity environments such as food processing washdown areas and coastal facilities. The IP20 housing rating protects against solid particle ingress while the conformal coating handles the moisture risk that IP20 alone does not address.

EMI Immunity: The CT-121F meets IEC 61000-4 series immunity requirements, including ESD (Level 3), radiated immunity (Level 3), and fast transient/burst immunity (Level 3). Optocoupler isolation on I/O channels provides galvanic separation between field wiring and the backplane bus, preventing ground loop interference from corrupting the I/O data stream.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your emergency order moves fast.

Standard Emergency Dispatch Process:

• Order Confirmed Before 14:00 CST: Same-day dispatch via DHL Express or FedEx International Priority
• Order Confirmed After 14:00 CST: Next business day dispatch — typically still arrives faster than sourcing locally in many regions
• Packaging: Anti-static bag + foam-lined carton + moisture barrier. Module arrives in the same condition it left our shelf.
• Documentation: Commercial invoice, packing list, and certificate of origin provided with every shipment. Customs clearance documentation prepared to minimize border delays.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.

Typical Transit Times (from Xiamen):

• Southeast Asia (Singapore, Malaysia, Thailand): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, Netherlands, UK, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 3–5 business days

For shipments requiring formal import documentation, EORI numbers, or specific Incoterms (DAP, DDP, EXW), contact us before placing the order and we will prepare the paperwork accordingly. We have shipped to over 40 countries and understand the customs requirements for industrial automation components in most major markets.
