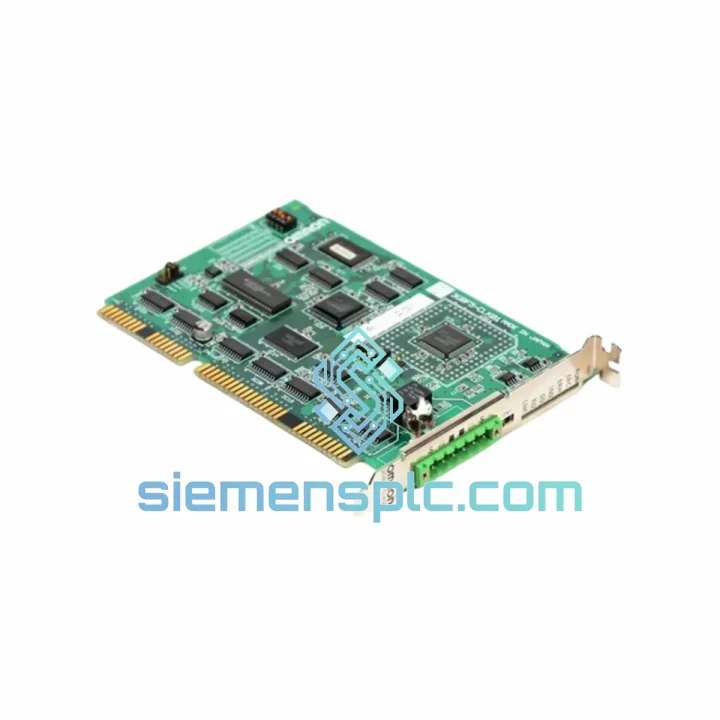

OMRON 3G8F5-CLK01 Controller Link Support Board

OMRON 3G8F5-CLK01 Controller Link Support Board – Stop the Clock on Your Downtime

Every minute your CS/CJ Series PLC network is dark, the losses compound. A failed 3G8F5-CLK01 host board doesn’t just drop one node — it can collapse an entire Controller Link segment, taking down synchronized conveyor lines, robotic cells, or process loops in one shot. We stock the OMRON 3G8F5-CLK01 in Xiamen specifically for this scenario: same-day dispatch, DHL/FedEx door-to-door, so your maintenance team has a verified replacement on the bench before the next shift starts.

This is not a refurbished pull or a grey-market substitute. Every unit we ship is 100% original OMRON, sourced through traceable supply channels, inspected against factory labeling standards, and packed in ESD-safe anti-static bags. When you’re staring at a fault LED at 2 AM, you need certainty — not a gamble.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 3G8F5-CLK01 fails in predictable ways. Here’s what ten years of field calls have taught me about this board:

Fault Code ERR / COMM LED Solid Red: Nine times out of ten this is a node address conflict after a board swap. The 3G8F5-CLK01 does not auto-address — you must set the node number manually via the rotary switch on the board edge before powering up. Duplicate node numbers on the same Controller Link segment will lock the entire token ring. Pull up CX-Integrator, run a network scan, and confirm no two nodes share the same address before you seat the replacement board.

Termination Resistor Check: Controller Link requires 110 Ω termination at both physical ends of the STP cable. A missing or double-terminated segment causes intermittent CRC errors that look like a bad board but are actually a wiring fault. Verify with a multimeter across the CLK+ and CLK− terminals before condemning the module.

Driver / OS Compatibility: The 3G8F5-CLK01 uses an ISA-bus interface on the host PC side. If you’re migrating to a newer industrial PC running Windows 10 (64-bit), confirm that your CX-Integrator version is v2.6 or later and that the OMRON CLK driver package is installed. A board that tests fine on the bench can appear dead if the driver is missing or unsigned.

Firmware Matching: The 3G8F5-CLK01 itself carries no user-upgradeable firmware, but the CJ1W-CLK21-V1 or CS1W-CLK21-V1 units on the PLC rack side do. After replacing the host board, re-run the data link table setup in CX-Integrator and re-download the link table to all nodes. Stale link tables from the previous board configuration are a common source of post-replacement communication failures.

ESD Handling: The ISA edge connector is sensitive. Ground yourself with a wrist strap before handling. We’ve seen boards arrive from other suppliers with latent ESD damage that only manifests under load — our pre-ship power-on test catches this before it reaches your site.

Replacement Sequence (field-proven):

• Power down the host PC and all PLC racks on the segment.
• Note the existing node address from the rotary switch on the failed board.
• Remove the failed 3G8F5-CLK01 and seat the replacement in the same ISA slot.
• Set the rotary switch to the same node address as the original.
• Verify termination resistors at both cable ends.
• Power up PLCs first, then the host PC.
• Launch CX-Integrator and confirm all nodes appear on the network scan.
• Re-download data link tables if any node shows a link error flag.

Reliability in Harsh Conditions

Factory floors are not server rooms. The 3G8F5-CLK01 was engineered for environments where VFDs generate conducted noise, ambient temperatures swing from cold morning startups to afternoon heat soak, and vibration from presses or compressors is constant background stress.

The board’s differential signaling on shielded twisted-pair gives it inherent common-mode noise rejection — the same principle that makes RS-485 robust in electrically noisy cabinets. At 500 kbps with 1,000 m of cable, the signal budget is conservative enough to tolerate real-world cable runs with junction boxes, connectors, and the occasional ground loop that would cripple a less robust network.

OMRON’s manufacturing process for the 3G8F5 series includes conformal coating on the PCB assembly, protecting solder joints and passive components from humidity and condensation — a critical detail in coastal or tropical plant environments where morning condensation inside control cabinets is a recurring maintenance headache. The ISA connector is gold-plated to resist oxidation over long service intervals.

Vibration tolerance meets IEC 60068-2-6 test Fc requirements, making the board suitable for installation in mobile equipment, shipboard control systems, and any application where the control cabinet is not on a static foundation. Units we ship have been verified against these mechanical stress criteria as part of OMRON’s factory acceptance process.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport (XMN) has direct cargo connections to DHL and FedEx international hubs, which means your replacement board moves on the first available flight rather than waiting for a consolidation cycle.

Standard Express Timeline (door-to-door from Xiamen):

• Southeast Asia (SG, MY, TH, VN): 2–3 business days via DHL Express
• Northeast Asia (JP, KR, TW): 2–3 business days via FedEx International Priority
• Europe (DE, NL, PL, UK): 3–5 business days via DHL Express Worldwide
• North America (US, CA, MX): 3–5 business days via FedEx International Priority
• Middle East (AE, SA, QA): 3–4 business days via DHL Express
• Australia / NZ: 3–4 business days via DHL Express

All shipments include a commercial invoice with accurate HS Code 8537.10 declaration, packing list, and certificate of origin (Japan) for customs clearance. We support DDP, DAP, and EXW Incoterms — if your procurement team needs DDP to avoid customs complexity on your end, we handle it. Tracking numbers are issued within 2 hours of dispatch and sent directly to your email.

For critical downtime situations, contact us via WhatsApp before placing the order. We can confirm stock, prepare the shipment, and coordinate with the courier for the earliest possible pickup slot — sometimes shaving 4–6 hours off the standard process when every hour counts.
