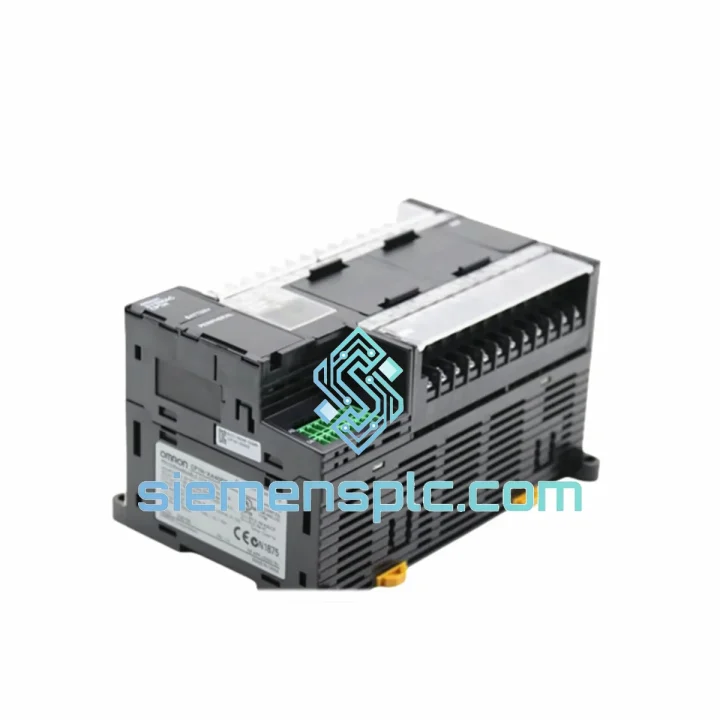

OMRON CP1H-X40DT-D Programmable Logic Controller – CP1H Series

OMRON CP1H-X40DT-D: 40-Point NPN Transistor Output Compact CPU in Discrete Motion and Process Control Architectures

The CP1H-X40DT-D occupies a well-defined position in OMRON’s CP1H platform: a DC-powered, NPN-sink transistor output CPU unit with 24 discrete inputs and 16 transistor outputs integrated on a single substrate, supplemented by four analog input channels and two analog output channels without requiring any expansion module. Within a control cabinet, this unit functions as the deterministic execution core — managing I/O scan, high-speed pulse generation, analog conversion, and serial communication simultaneously through a fixed-priority interrupt architecture rather than a purely sequential scan model.

For system architects evaluating compact PLCs in the 40-point class, the CP1H-X40DT-D’s distinguishing characteristic is its hardware-level separation of high-speed pulse output from the cyclic scan engine. Four independent pulse output channels operate through dedicated on-chip hardware counters, meaning pulse frequency and positioning accuracy are not degraded by program complexity or scan time variation — a critical requirement in servo and stepper motor applications where jitter tolerance is measured in microseconds.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Scan Architecture and Interrupt Hierarchy

The CP1H-X40DT-D executes a cyclic scan composed of four sequential phases: input refresh, program execution, output refresh, and peripheral service. The nominal scan time for a 10K-step ladder program runs approximately 1–3 ms under typical I/O loading. However, the CPU implements a fixed-priority interrupt system that can preempt the cyclic scan at defined points. Four hardware interrupt inputs (I0–I3) trigger interrupt service routines (ISRs) with a response latency of approximately 0.3 ms from signal edge to ISR entry — a figure that remains consistent regardless of main program scan time, because the interrupt controller operates asynchronously to the scan engine.

High-Speed Pulse Output Hardware

Pulse output channels 0–3 are driven by dedicated 32-bit hardware counters embedded in the CPU ASIC, not by software-toggled output bits. This architecture eliminates scan-time jitter from the pulse train entirely. Each channel supports three output modes: CW/CCW (two-wire), pulse + direction (two-wire), and PWM. The maximum output frequency of 100 kHz per channel corresponds to a minimum pulse period of 10 μs, with a duty cycle adjustable from 0.1% to 99.9% in PWM mode. Trapezoidal and S-curve acceleration/deceleration profiles are computed by the CPU and loaded into the hardware counter’s target register, allowing the motion profile to execute autonomously without continuous CPU intervention.

High-Speed Counter Input Architecture

The four high-speed counter inputs accept differential-phase (A/B quadrature), CW/CCW, or pulse+direction encoder signals at up to 100 kHz. Each counter is a 32-bit up/down register with configurable comparison values that trigger interrupt outputs or internal flags when the count reaches a preset — enabling position-based event triggering without polling overhead in the main program.

Analog Signal Chain

The built-in analog section uses a successive-approximation register (SAR) ADC with 12-bit resolution across a 0–10 VDC or 4–20 mA input range, yielding a theoretical resolution of approximately 2.44 mV/LSB (voltage mode) or 3.9 μA/LSB (current mode). The analog inputs are multiplexed through a single ADC core, with a per-channel conversion time of approximately 1 ms. Input impedance is 1 MΩ (voltage mode) and 250 Ω (current mode). The two analog outputs use a 12-bit DAC with a settling time of approximately 1 ms to within ±0.5% of full scale. Both input and output channels are galvanically isolated from the digital I/O commons via optocouplers, preventing ground loop interference in mixed-signal panel environments.

EMC Design and Noise Immunity

The CP1H-X40DT-D meets EN 61131-2 electromagnetic compatibility requirements. Digital input circuits incorporate RC filter networks with a configurable time constant (0.5 ms, 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms) to suppress contact bounce and conducted noise without masking legitimate signal transitions. Transistor output drivers include flyback diode protection for inductive loads and are rated for 1,500 VAC isolation between the output commons and the CPU logic ground. The power supply section includes a built-in surge absorber and EMI filter capacitors to attenuate conducted emissions on the DC 24V supply line.

CJ-Series Expansion Bus

The right-side expansion connector implements OMRON’s proprietary parallel backplane bus, which transfers I/O data between the CPU and up to seven CJ-series expansion units in a single I/O refresh cycle. The bus operates at 3.3V logic levels with differential signaling, providing noise immunity in electrically harsh panel environments. Each expansion unit’s I/O data is mapped transparently into the CPU’s I/O memory area (CIO), so ladder program addressing of expansion I/O is identical to built-in I/O — no special communication instructions are required.

System Integration Benefits

• Deterministic Pulse Generation Independent of Scan Load: Hardware-based pulse output counters maintain frequency accuracy to ±0.01% regardless of main program scan time, enabling reliable servo and stepper positioning without dedicated motion controllers.
• Integrated Analog Eliminates Module Cost: Four analog inputs and two analog outputs are embedded in the base unit, removing the need for a separate CJ-series analog module in the majority of PID and process monitoring applications — reducing BOM cost and DIN rail space by one module slot.
• Scalable I/O Without CPU Replacement: CJ-series expansion supports digital, analog, temperature, high-speed I/O, and communication modules. System I/O can grow from 40 to 320 points without changing the CPU or rewriting the program’s I/O addressing structure.
• Dual Serial Option Boards for Multi-Protocol Communication: Two independent serial option board slots allow simultaneous operation of two communication protocols — for example, Modbus RTU to a VFD on port 1 and CompoWay/F to a temperature controller on port 2 — without external serial converters.
• Interrupt-Driven Diagnostics with Sub-Millisecond Response: Hardware interrupt inputs allow the control program to respond to fault signals (e-stop, overtravel, sensor trip) within 0.3 ms, independent of the cyclic scan period, improving machine safety response time.
• USB Programming Without Proprietary Adapters: Standard USB-B port accepts any USB-A to USB-B cable for CX-Programmer connection, eliminating the RS-232C-to-USB adapter dependency common in older OMRON CPU generations and reducing commissioning tool inventory.
• Non-Volatile Flash Program Storage: The 20K-step program is stored in internal flash memory with no battery dependency for program retention. A separate battery (optional) is required only for retaining the real-time clock and certain DM data areas during power loss.
• Configurable Input Filter Time Constants: Per-input RC filter time constants (0.5–32 ms) allow the engineer to optimize noise rejection versus response speed on a point-by-point basis, accommodating both high-frequency encoder signals and slow-switching proximity sensors within the same I/O bank.
• Transparent CJ-Bus I/O Mapping: Expansion unit I/O addresses appear in the CIO area contiguously with built-in I/O, so program logic does not require special function blocks or communication instructions to access expansion modules — reducing program complexity and scan overhead.
• PWM Output for Analog-Equivalent Control: High-speed pulse output channels support PWM mode, enabling proportional control of DC loads (heaters, valves, LED drivers) without a dedicated analog output module when a low-pass filter is applied externally.
