Every minute a guarded machine sits idle costs money. When your F3SJ-A0245P14-L trips a permanent fault — ERR LED locked red, OSSD outputs dead, safety controller in forced stop — you are not looking at a calibration issue. You are looking at a hardware replacement. We stock the OMRON F3SJ-A0245P14-L and ship from Xiamen within 24 hours. DHL Express to most destinations in 2–4 business days. That is the difference between a half-day outage and a week-long production crisis.

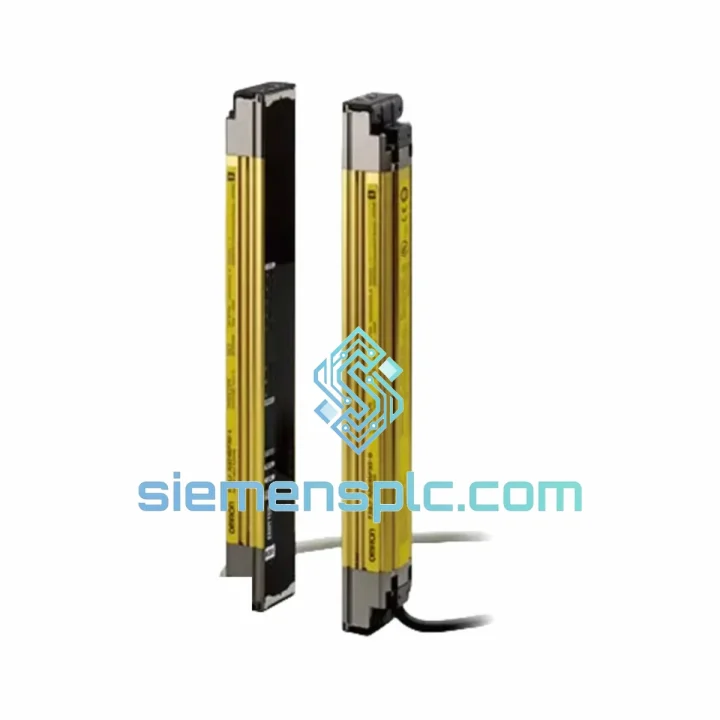

The F3SJ-A0245P14-L is a Type 4 safety light curtain from OMRON’s F3SJ-A Advanced Series. Protective height: 245 mm. Optical resolution: 14 mm — sufficient to detect fingers and hands at the point of operation. Dual PNP OSSD outputs, 24 VDC supply, IP65 housing, M12 connector with left-side cable exit (-L suffix). Certified to IEC 61496-1/-2, ISO 13849 PLe, IEC 62061 SIL3. This is the unit that sits between your operator and a press brake, a robot cell, or a palletizer. When it fails, nothing moves until it is replaced.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Pattern 1 — ERR LED solid red, both OSSDs off: This is the most common failure mode after a power surge or wiring short. Before condemning the curtain, check the 24 VDC supply at the M12 connector pins 1 and 3 under load. If voltage is stable and the ERR LED does not clear after a power cycle, the internal safety microcontroller has latched a permanent fault. The unit requires replacement — there is no field reset for this condition.

Fault Pattern 2 — Intermittent OSSD dropout, no visible obstruction: Nine times out of ten this is optical axis misalignment caused by vibration-induced bracket creep. Check the green STABLE indicator on both emitter and receiver. If it flickers, realign using the alignment indicator LEDs before assuming hardware failure. If alignment is confirmed good and dropouts persist, inspect the M12 cable for micro-fractures at the connector boot — a common failure point on machines with high-cycle reciprocating motion.

Fault Pattern 3 — Safety controller reports OSSD cross-fault: The F3SJ-A0245P14-L outputs OSSD1 and OSSD2 as complementary signals. If your safety relay or safety PLC (Siemens F-CPU, Allen-Bradley GuardLogix, Pilz PNOZ) reports a cross-fault, the curtain’s internal OSSD driver has failed asymmetrically. This is not recoverable in the field. Replace the unit.

Replacement Configuration Checklist:

• Cable exit side: Confirm -L (left-side exit) matches your existing cable routing. Swapping to -R without rerouting the cable will create mechanical stress at the connector.
• Restart mode: The F3SJ-A0245P14-L ships in auto-restart mode by default. If your machine requires manual restart interlock (required by most press brake and robot cell safety standards), set the restart mode via the configuration input pin before commissioning. Refer to OMRON Cat. No. Z343 section 3-4.
• Blanking configuration: If the previous unit had fixed or floating blanking enabled for a through-beam obstruction (tooling, fixture), you must reconfigure blanking on the replacement unit. Blanking settings are not stored in the safety controller — they reside in the curtain itself.
• Cascading: If this curtain is part of a cascaded F3SJ-A array, verify the cascade cable (F39-CN□) is intact and that the master/slave addressing is correct after replacement. A mis-addressed cascade will cause the entire array to fault.
• Firmware: The F3SJ-A0245P14-L does not require firmware flashing in the field. No configuration tool is needed for standard operation. Advanced functions (muting, blanking, external device monitoring) are configured via dedicated input pins, not software.

Reliability in Harsh Conditions

The F3SJ-A0245P14-L is not a laboratory instrument. It is built to survive the floor. The aluminum extrusion housing resists deformation under the mechanical shock loads common in stamping and forging environments. IP65 sealing keeps coolant mist, metal dust, and cleaning spray out of the optical assembly — a critical requirement in metalworking and food processing lines where washdown cycles are routine.

Vibration resistance is validated to IEC 60068-2-6: 10–55 Hz, 1.5 mm amplitude. In practice, this means the curtain maintains optical alignment on machines that generate significant structural vibration — hydraulic presses, compactors, and heavy conveyor drives. The M12 locking connector eliminates the cable pull-out failures that plague older bayonet-style connections in high-vibration installations.

Operating temperature range is 0°C to +55°C, with storage down to -25°C. In foundry and forge environments where ambient temperatures near the machine can spike, ensure the curtain is not mounted directly adjacent to heat sources. Maintain at least 200 mm clearance from radiant heat panels or exhaust ports. The optical emitter’s LED array is rated for 100,000+ hours MTBF under rated conditions — in practice, thermal stress from improper mounting is the primary life-limiting factor, not the LED itself.

The slim aluminum profile — 35 mm × 35 mm cross-section — minimizes the curtain’s exposure to lateral impact from passing workpieces or material handling equipment. Where impact risk is high, OMRON’s F39-LJB swivel bracket allows the curtain to be angled slightly inward, reducing the target profile without compromising the protective field geometry.

Global Express Logistics

Stock is held at our Xiamen warehouse, positioned for rapid export across Asia-Pacific, the Middle East, Europe, and the Americas. When you confirm an order before 14:00 CST, the unit is packed, documented, and handed to the carrier the same business day.

We ship via DHL Express and FedEx International Priority as standard. Typical transit times: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days. For genuine production emergencies, we can arrange same-day courier handoff and provide the AWB number within 2 hours of payment confirmation.

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring import clearance support, we provide HS code documentation (HS 8536.50 for safety light curtains) and can prepare a formal proforma invoice for LC or T/T payment arrangements. Anti-static, foam-lined packaging protects the optical assembly and M12 connector during transit — the same packaging standard used by OMRON’s own distribution network.

For orders requiring expedited customs clearance in the EU or UK, we work with our freight partners to pre-file customs entries where possible, reducing clearance delays at destination. If your plant is in a bonded zone or requires specific import documentation, contact us before ordering and we will coordinate accordingly.
