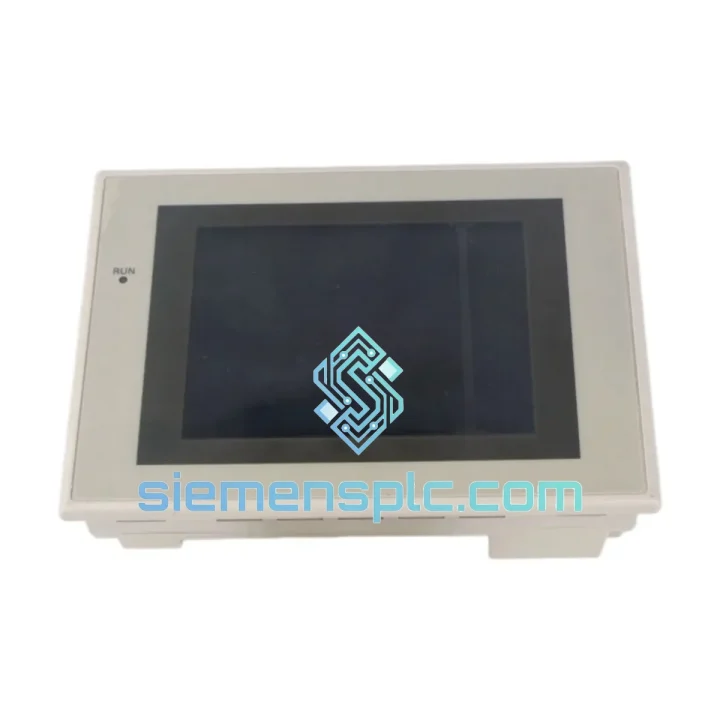

OMRON NS5-MQ00-V2 HMI Programmable Terminal – NS Series

OMRON NS5-MQ00-V2: 5.7-Inch Monochrome STN Operator Terminal in Industrial Control Loops

The NS5-MQ00-V2 occupies a well-defined position in OMRON’s NS Series HMI architecture: a compact, panel-mount operator terminal engineered for deterministic screen rendering and low-latency PLC communication over RS-232C serial links. At its core, the unit runs OMRON’s proprietary NS-Runtime firmware on an embedded 32-bit processor, managing screen object refresh cycles, tag polling intervals, and alarm queue arbitration simultaneously without a general-purpose OS scheduler introducing jitter. This architecture is deliberate — in discrete manufacturing environments where operator response to alarm states must be sub-second, the absence of OS-level preemption overhead is a measurable engineering advantage.

The 5.7-inch STN LCD panel operates at 320 × 240 (QVGA) resolution with an EL (electroluminescent) backlight. STN technology, while monochrome, delivers consistent contrast across the 0–50 °C operating range without the thermal drift that affects some TFT panels in high-ambient-temperature enclosures. The EL backlight maintains uniform luminance distribution across the panel surface, which matters in environments where operators read status text at oblique angles from a distance. Rated backlight lifespan is 10,000–20,000 hours under continuous operation — a figure that aligns with typical 3-shift production schedules over a 2–3 year maintenance cycle.

Communication is handled by two independent RS-232C ports. Port 1 is dedicated to PLC host-link or peripheral bus communication (OMRON SYSMAC protocol, Toolbus, or NT Link), while Port 2 supports printer output or a secondary serial device. This dual-port topology allows the terminal to maintain a live PLC data connection while simultaneously logging alarm records to a serial printer — a configuration common in food processing and pharmaceutical lines where paper audit trails remain a regulatory requirement. A USB Type-B port provides programming access via CX-Designer without interrupting the active RS-232C session.

The NS5-MQ00-V2 integrates natively with OMRON CJ1, CJ2, CS1, CP1, and NJ/NX series PLCs using NT Link or Host Link protocols. Tag mapping is handled at the CX-Designer project level, where I/O memory addresses, DM area words, and timer/counter values are bound directly to screen objects. This direct memory-mapped approach eliminates the protocol translation layer present in third-party HMI solutions, reducing polling latency to the RS-232C baud rate limit (typically 115,200 bps) rather than an additional software stack delay. For legacy OMRON C200H or CVM1 installations, the terminal operates via a protocol converter, preserving investment in existing PLC infrastructure during phased modernization projects.

The front panel carries an IP65 ingress protection rating, sealing the operator interface against dust ingress and low-pressure water jets. This rating is achieved through a continuous gasket perimeter between the front bezel and the panel cutout surface. The rear electronics enclosure is not IP-rated and requires installation inside a sealed control cabinet — a standard practice for NS Series deployments. Panel cutout dimensions are 174 × 129 mm, consistent across the NS5 product family, which means the NS5-MQ00-V2 can be substituted into an existing NS5 cutout without mechanical rework.

Power input is 24 V DC, with a consumption of approximately 10 W under normal operating conditions. The unit draws from the same 24 V DC bus that typically powers PLC I/O modules and field sensors, simplifying cabinet power distribution design. Inrush current at startup is within the tolerance of standard 24 V DIN-rail power supplies rated at 5 A or above. Operating temperature range of 0–50 °C and storage range of −20–60 °C cover the majority of indoor industrial installation environments without supplemental cabinet cooling.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The NS5-MQ00-V2’s hardware design reflects OMRON’s approach to deterministic HMI operation in electrically noisy industrial environments. Several design decisions are worth examining at the engineering level:

EMC Shielding Architecture: The unit’s PCB layout separates the display driver circuitry from the communication interface section using a ground plane partition. RS-232C signal lines are routed through transient voltage suppression (TVS) diodes at the connector entry points, providing protection against ESD events up to ±15 kV (contact discharge per IEC 61000-4-2). This is particularly relevant in environments with frequent motor starts, where inductive kickback on the 24 V DC bus can couple into serial communication lines and corrupt data frames.

Flash-Based Project Storage: Unlike earlier NS Series models that used battery-backed SRAM for project retention, the V2 revision stores screen projects in onboard NOR flash memory. This eliminates the battery replacement maintenance interval and removes the risk of project loss due to battery depletion — a failure mode that caused unplanned downtime in earlier NS installations. Flash write endurance (typically 100,000 cycles for NOR flash) is not a practical concern given that project uploads occur only during commissioning or modification, not during runtime.

Dual RS-232C Port Arbitration: The two RS-232C ports operate on independent UART controllers within the embedded processor, meaning simultaneous full-duplex communication on both ports does not create bus contention. Port 1 maintains the PLC polling cycle (configurable from 10 ms to several seconds depending on tag count and baud rate), while Port 2 handles asynchronous print output without interrupting the polling scheduler. This hardware-level separation is architecturally superior to single-UART designs that multiplex ports in software.

EL Backlight Drive Circuit: The EL backlight requires an AC drive voltage (typically 80–200 V AC at 400–1000 Hz) generated by an onboard inverter from the 24 V DC supply. The inverter circuit is thermally managed to maintain consistent drive frequency across the operating temperature range, which directly affects backlight luminance stability. Luminance variation due to temperature-induced inverter frequency drift is a known failure mode in lower-cost HMI designs; OMRON’s inverter specification for the NS5 series maintains luminance within ±15% across the full 0–50 °C range.

Watchdog Timer Implementation: The firmware implements a hardware watchdog timer that resets the processor if the main application loop fails to complete within a defined interval. This prevents the terminal from entering a locked state during communication timeouts or screen rendering anomalies — a critical requirement for operator terminals that must remain responsive even when the connected PLC is in fault state.

System Integration Benefits

• Zero-Configuration PLC Connectivity: NT Link and Host Link protocols are natively supported without driver installation. Connecting to an OMRON CJ2 or CS1 PLC requires only baud rate and station number configuration in CX-Designer — no third-party middleware or protocol gateway.
• CX-One Project Portability: Screen projects created in CX-Designer are stored in a documented project file format (.nsp). Projects transfer between NS5 units of the same V2 revision without modification, enabling rapid spare-unit deployment without re-engineering the HMI application.
• Alarm History with Timestamp Resolution: The alarm log function records up to 1,024 alarm events with timestamp resolution to 1 second, stored in flash memory. This data is accessible via CX-Designer upload or serial print output, supporting root-cause analysis without a separate SCADA historian for small-scale installations.
• Multi-Language Screen Support: CX-Designer supports up to 16 language sets within a single project, switchable at runtime via a PLC bit or operator touch input. This allows a single NS5-MQ00-V2 unit to serve multilingual operator teams without project modification.
• Recipe Data Management: The terminal supports recipe data tables stored in flash, with read/write access from the PLC via NT Link. This enables parameter set switching (e.g., product changeover in packaging lines) from the operator panel without PLC program modification.
• Macro Function Execution: CX-Designer macros execute on the HMI processor, offloading conditional display logic from the PLC scan cycle. This reduces PLC program complexity and keeps display-related calculations out of the control loop, preserving PLC scan time for I/O processing.
• Consistent Panel Cutout Across NS5 Family: The 174 × 129 mm cutout is shared across all NS5 variants (MQ, SQ, TQ). Upgrading from a monochrome to a color TFT model, or adding Ethernet capability, requires no mechanical panel modification — only a unit swap and project update.
• Diagnostic Transparency via System Menu: The built-in system menu (accessible without CX-Designer) displays communication error counters, backlight hours, and firmware version. Maintenance personnel can assess terminal health and communication status without a laptop or programming tool on the factory floor.

Quality Assurance & Global Logistics

Every NS5-MQ00-V2 unit shipped from our Xiamen, China facility is sourced from verified OMRON authorized distribution channels or authenticated surplus stock with full traceability documentation. Pre-shipment inspection covers physical label authenticity verification against OMRON’s current label specification, firmware version confirmation via CX-Designer connection test, display panel functional check (full-screen pixel test, backlight uniformity), and RS-232C port loopback communication test at 115,200 bps.

Units are packed in anti-static foam inserts within double-wall corrugated cartons, with desiccant packs included for sea freight shipments. Export documentation includes commercial invoice, packing list, and certificate of origin. HS code 8537.10 applies for customs classification in most jurisdictions.

Standard international express shipment (DHL / FedEx / UPS) from Xiamen reaches major industrial hubs in Southeast Asia within 3–5 business days, Europe within 5–7 business days, and North America within 5–8 business days. Sea freight consolidation is available for orders of 10 units or more. All shipments carry a 12-month warranty from the date of dispatch. Warranty claims are processed with advance replacement for verified defective units, minimizing production downtime for our customers.
