OMRON R7D-BP02HH-Z — Stop the Bleeding: Get Your Line Back in 48 Hours

Your servo drive just tripped. The axis is dead. The line is down. Every hour you spend waiting for a replacement is money walking out the door — rejected batches, idle labor, missed delivery windows, and a maintenance manager fielding calls from production. The OMRON R7D-BP02HH-Z is in stock at our Xiamen warehouse right now. We’ve shipped this exact model to plants in Vietnam, Thailand, Germany, and Mexico on emergency orders. We know what’s at stake, and we move fast.

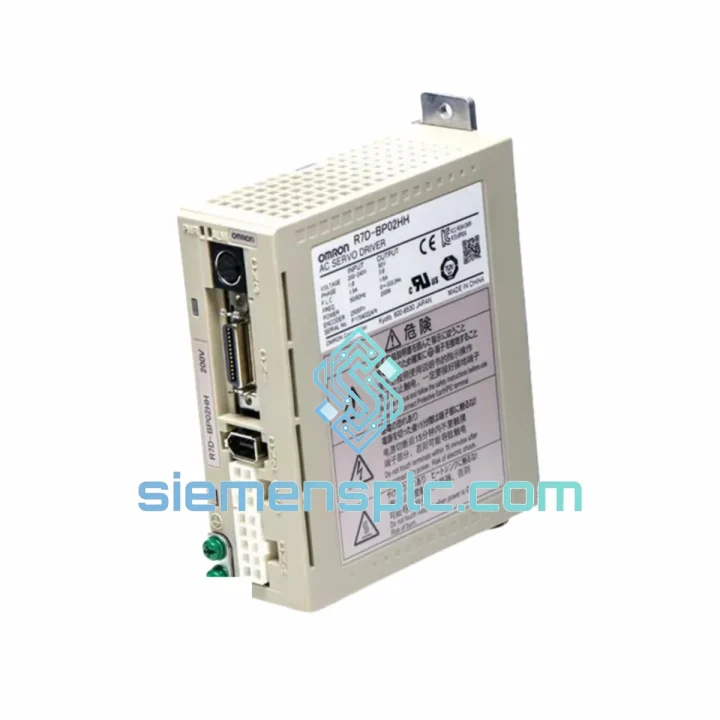

The R7D-BP02HH-Z is a 200W single-phase AC servo drive from OMRON’s SMARTSTEP 2 R7D Series — one of the most widely deployed compact servo platforms in Asian and European factory automation. It pairs exclusively with OMRON’s R88M-G 200W servo motors and is controlled via RS-232C or RS-485 using OMRON’s CX-Drive software. If you’re replacing a failed unit on a running machine, this guide covers everything you need to get back online without a second trip to the panel.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the old drive, do this first:

Connect CX-Drive via RS-232C and capture the full parameter file (File → Save to PC). The R7D-BP02HH-Z stores all tuning data — inertia ratio, notch filter frequencies, gain settings — in non-volatile memory. If you skip this step and the old drive is completely dead, you’re starting from scratch with auto-tuning on a live machine. Don’t skip it.

Common fault codes on the R7D-BP02HH-Z and what they actually mean in the field:

• Err.10 (Overcurrent): Usually a shorted motor winding or damaged power cable insulation. Measure motor phase-to-phase resistance before installing the new drive — if it’s unbalanced, the new drive will trip immediately on power-up.
• Err.11 (Overvoltage): Regenerative energy not being absorbed. Check the external regeneration resistor (R88A-RR Series) for open circuit. On high-inertia loads with fast deceleration, you may need to increase the deceleration time constant (Pn406) before the new drive goes live.
• Err.14 (Encoder Error): Nine times out of ten this is a cable issue, not the encoder itself. Inspect the encoder cable connector at both ends for bent pins or moisture ingress. Replace the cable before condemning the encoder.
• Err.16 (Overload): The drive has been running above rated torque for too long. Check mechanical binding — worn bearings, seized couplings, or excessive back-pressure on the load. A new drive won’t fix a mechanical problem.
• Err.30 (Regeneration Error): Regeneration resistor overheating. If the machine duty cycle hasn’t changed, suspect a failing resistor. Measure resistance cold — R88A-RR08050 should read ~50Ω. Anything significantly higher means it’s degraded.

Replacement procedure — field-tested sequence:

1. Isolate and lock out the main power supply. Wait 5 minutes for DC bus capacitors to discharge — the R7D-BP02HH-Z holds significant charge after power-off.
2. Label every connector before removal. The CN1 (I/O), CN2 (encoder), and CN3 (motor power) connectors are keyed differently but it’s easy to misroute CN1 signal wiring under pressure.
3. Note the DIP switch settings on the old drive (SW1 on the front panel). The R7D-BP02HH-Z uses SW1 to set the RS-485 node address and termination resistor. Match these exactly on the new unit before installation.
4. Install the new drive. Restore the parameter file via CX-Drive before powering the motor.
5. Run auto-tuning at low speed with the machine in a safe state. Verify position loop gain (Pn100) and speed loop gain (Pn102) are within 20% of the saved values before returning to production speed.
6. Monitor the drive temperature and current draw for the first 30 minutes of production. An Err.16 within the first hour usually points to a mechanical issue that was masked by the old drive’s degraded performance.

Firmware note: The R7D-BP02HH-Z firmware version is embedded and not field-upgradeable. If you’re replacing a drive that was running a specific firmware revision for compatibility with an older CX-Drive version, verify the new unit’s firmware via the drive’s front panel display (hold MODE + SET on power-up to display firmware version). Contact OMRON technical support if a specific firmware revision is required for your application.

Reliability in Harsh Conditions

The R7D-BP02HH-Z was not designed for a climate-controlled server room. It was built for the factory floor — where ambient temperatures swing from pre-dawn cold starts to mid-afternoon heat soak, where coolant mist settles on control panels, and where the panel door gets slammed fifty times a day.

The drive’s IGBT power stage is rated for continuous operation at 55°C ambient without derating. The conformal-coated PCB resists humidity up to 90% RH non-condensing — relevant in coastal manufacturing facilities and food processing environments where condensation is a real risk. Vibration resistance meets IEC 60068-2-6 standards, which means it can handle the structural vibration transmitted through machine frames in stamping, grinding, and heavy milling applications without connector fatigue failures.

Units supplied from our Xiamen warehouse are stored in climate-controlled conditions with anti-static packaging and moisture-barrier bags. Each unit is inspected for physical damage, label integrity, and serial number traceability before dispatch. We do not ship units with damaged housings, missing labels, or unverifiable provenance — because a drive that fails on day one costs you more than the part itself.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. For emergency orders confirmed before 14:00 CST, same-day dispatch is standard. Here’s what the timeline looks like in practice:

• Southeast Asia (Vietnam, Thailand, Malaysia, Indonesia): DHL Express — 2 to 3 business days door-to-door. Customs clearance is typically straightforward for industrial components under HS code 8537.
• Europe (Germany, Poland, Italy, Netherlands): FedEx International Priority — 3 to 5 business days. We prepare full commercial invoice, packing list, and EUR.1 certificate of origin on request for EU customs preference.
• Americas (USA, Mexico, Brazil): DHL Express or FedEx — 3 to 5 business days to US/Mexico, 5 to 7 days to Brazil. We handle HTS classification and provide ISF filing support for US Customs.
• Middle East & India: FedEx International Priority — 3 to 5 business days. We include all required export documentation for customs clearance in UAE, Saudi Arabia, and India.

Every shipment includes: commercial invoice, packing list, airway bill, and a unit-level inspection report. For orders requiring a Certificate of Conformity or third-party inspection, contact us at the time of order — we can arrange SGS or Bureau Veritas inspection for high-value or regulated procurement.

Tracking numbers are sent via email within 2 hours of dispatch. We monitor shipments actively and will proactively notify you of any customs holds or carrier delays — because when your line is down, you need information, not silence.
