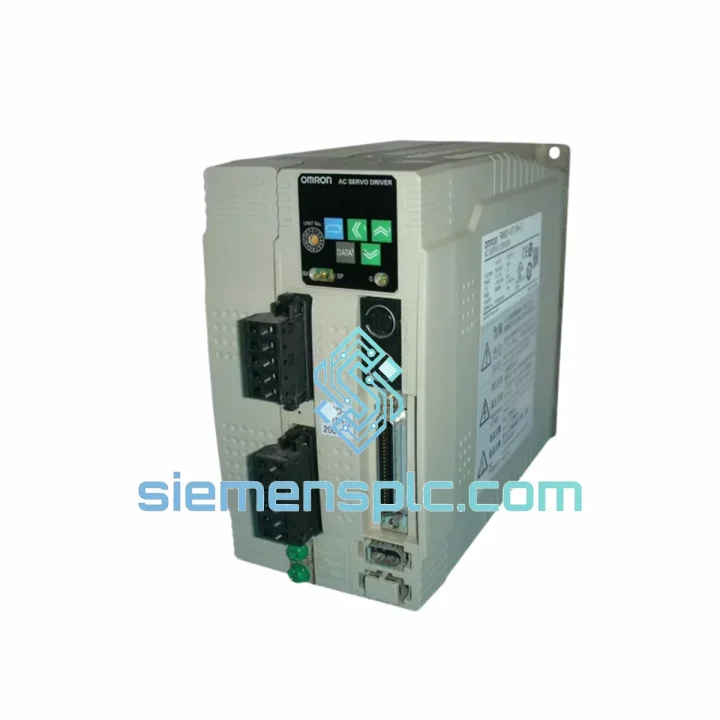

OMRON R88D-MT80 AC Servo Driver – R88D Series

OMRON R88D-MT80: 750W Pulse-Train AC Servo Amplifier in Closed-Loop Motion Architecture

The OMRON R88D-MT80 is a 750W-class AC servo amplifier belonging to OMRON’s R88D Series — a product line engineered for deterministic closed-loop motion control in industrial machinery. The R88D-MT80 operates as the power-stage and control-stage bridge between a host motion controller and an R88M-series servo motor, translating pulse-train command signals into precisely regulated torque, velocity, and position outputs. Its role in a control loop is not peripheral: without a correctly tuned servo amplifier, encoder feedback cannot be processed, current commutation cannot be executed, and the mechanical axis cannot achieve the sub-millimeter repeatability demanded by CNC, robotics, and high-speed packaging applications.

Within the R88D Series architecture, the MT80 variant targets single-axis applications requiring up to 750W continuous output at 200–230V AC supply. The amplifier accepts incremental encoder feedback from the paired R88M-MT servo motor and closes the position, velocity, and current loops internally — offloading real-time loop closure from the host PLC or motion controller. This distributed loop architecture reduces deterministic latency at the controller level and allows the host to manage multi-axis coordination without being burdened by individual axis current regulation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The R88D-MT80 implements a three-loop cascade control topology — current loop innermost, velocity loop intermediate, position loop outermost — which is the standard architecture for high-stiffness servo systems. The current loop operates at the PWM switching frequency domain (typically 8–16 kHz carrier), ensuring torque ripple is suppressed below the mechanical resonance frequency of most servo motor-load combinations in the 750W class.

EMC Design: The amplifier’s power stage uses IGBT modules with gate drive circuits that incorporate dV/dt limiting to reduce conducted and radiated emissions. The DC bus capacitor bank is sized to absorb regenerative energy spikes during deceleration without triggering overvoltage faults in typical duty cycles. For high-inertia loads — such as rotary tables or large-diameter winding mandrels — the external regenerative resistor terminal allows dissipation of excess kinetic energy that exceeds the internal resistor’s thermal capacity.

Encoder Signal Processing: The incremental encoder interface uses differential line receiver ICs (RS-422 compatible) to reject common-mode noise on encoder cables up to 20 m in length. The quadrature decoder hardware multiplies the 2,048 p/r encoder resolution by 4× (edge counting), yielding an effective position resolution of 8,192 counts per motor revolution — equivalent to approximately 0.044° mechanical resolution before any gearbox reduction.

Auto-Tuning Algorithm: The R88D-MT80’s online auto-tuning function estimates load inertia ratio by injecting a low-amplitude velocity perturbation and measuring the torque response. The algorithm then sets velocity loop proportional gain (Kv) and integral time constant (Ti) to achieve a target phase margin of approximately 45°, balancing response speed against stability margin. This eliminates the need for manual Bode plot analysis during commissioning in most standard load configurations.

Fault Isolation Logic: The drive’s internal watchdog monitors encoder signal continuity, DC bus voltage, IGBT junction temperature (via NTC thermistor), and output current magnitude on a per-PWM-cycle basis. Fault codes are latched in non-volatile memory and accessible via the front-panel 7-segment display, enabling field diagnosis without a laptop or software tool.

System Integration Benefits

• Deterministic Pulse-Train Interface: The R88D-MT80 accepts sign+pulse, CW/CCW, and A/B quadrature command formats at up to 500 kpps (line driver), making it directly compatible with OMRON CJ1W-MC series motion controllers, NJ/NX EtherCAT masters (via pulse output modules), and third-party controllers from Mitsubishi, Panasonic, and Delta without signal conversion hardware.
• Distributed Loop Closure: By closing the current and velocity loops locally within the amplifier, the host PLC’s scan cycle is decoupled from servo current regulation. This allows a 1 ms PLC scan to coexist with a sub-100 µs current loop without axis instability — a critical requirement in multi-axis coordinated systems.
• Electronic Gear Ratio: The built-in electronic gear function allows the command pulse count to be scaled by a numerator/denominator ratio (1–65535 / 1–65535), enabling the motion controller to output a fixed pulse rate while the drive adapts to different motor-to-load transmission ratios without reprogramming the controller.
• Torque Limit Input: An analog torque limit input (0–10V) allows the host controller to dynamically cap motor output torque — essential in press-fit, clamping, and tension-control applications where force must be bounded independently of position command.
• In-Position Output Signal: The drive outputs a discrete in-position signal when position error falls within a configurable window (±1 to ±250 encoder counts), allowing the PLC to gate the next motion segment without polling encoder position — reducing inter-move latency in sequential pick-and-place cycles.
• Alarm Output with Code: A dedicated alarm output relay and 4-bit alarm code output allow the host PLC to read fault type directly via discrete I/O without serial communication, simplifying fault-handling ladder logic in legacy CJ/CS series PLC programs.
• Regenerative Energy Management: The external regenerative resistor terminal supports resistors rated up to the drive’s peak regenerative power, enabling integration into high-duty-cycle deceleration profiles (e.g., 100 cycles/min in packaging machinery) without thermal shutdown.
• Panel Space Efficiency: At approximately 55 mm width (single-axis), the R88D-MT80 allows multi-axis configurations to be mounted in standard 600 mm-wide control panels without requiring oversized enclosures, reducing cabinet fabrication cost in multi-axis machine designs.

Quality Assurance & Global Logistics

Every OMRON R88D-MT80 unit dispatched from our Xiamen, China facility is a genuine OMRON product sourced through verified supply channels. Prior to shipment, each unit undergoes a structured inspection protocol: visual examination of PCB, connector pins, and label integrity; serial number cross-reference against OMRON’s product database; and functional power-on verification where applicable. Units are packed in anti-static foam-lined cartons with moisture-barrier bags to withstand the thermal and humidity cycling inherent in international air freight.

Xiamen’s geographic position — adjacent to Xiamen Gaoqi International Airport and within 48-hour trucking distance of Shenzhen and Shanghai ports — enables same-day or next-business-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Express. Typical transit times to Western Europe are 3–5 business days; to North America, 4–6 business days; to Southeast Asia, 2–3 business days. Full commercial invoice, packing list, and certificate of origin are provided with every shipment to support customs clearance. HS Code 8537.10 applies to servo amplifier units for standard import classification reference.

A 12-month warranty covers manufacturing defects from the shipment date. Warranty claims are processed via email with photographic evidence; replacement or credit is issued within 5 business days of claim approval. This warranty applies to units operated within the specified environmental and electrical ratings defined in the OMRON R88D-MT80 User Manual (Cat. No. I531).
