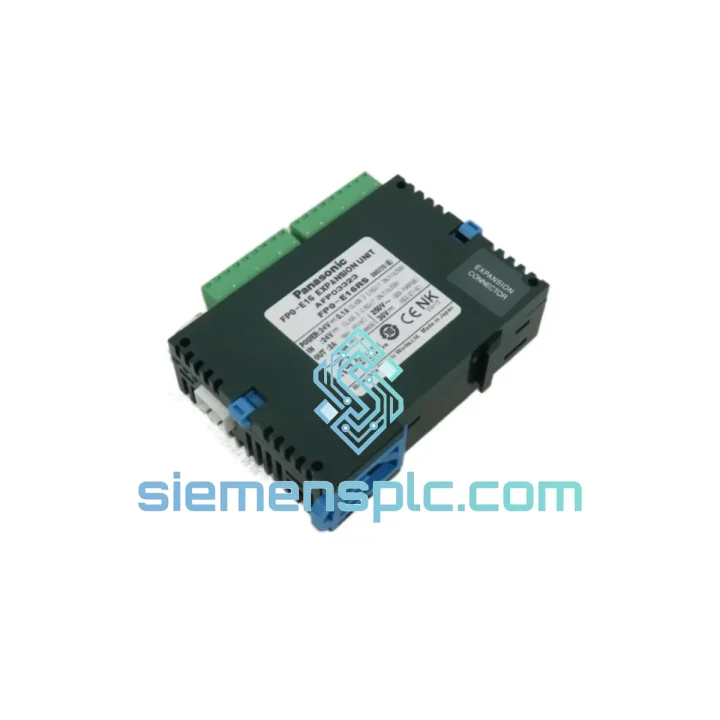

Panasonic FPO-E16 PLC I/O Expansion Module – FP0 Series

Panasonic FPO-E16: 16-Point Digital I/O Expansion Module in the FP0 Compact PLC Architecture

The Panasonic FPO-E16 is a 16-point digital I/O expansion unit designed exclusively for the FP0 Series compact PLC platform. Within a control cabinet where panel space is measured in millimeters, this module extends the native I/O capacity of any FP0 CPU unit without altering the base hardware configuration or introducing additional communication overhead. It occupies the right-side expansion slot via the proprietary FP0 side-bus connector, and the CPU automatically maps its I/O addresses during power-up initialization — no manual address-switch configuration is required.

The FP0 platform has accumulated more than two decades of field deployment across Asian and European manufacturing sectors. The FPO-E16 sits at the center of that ecosystem as the standard discrete I/O expansion choice for machine builders who need additional sensor and actuator connections without migrating to a larger PLC family. Its synchronous scan-cycle integration means that expansion I/O is refreshed in lockstep with the CPU’s main I/O image table, preserving the deterministic timing characteristics that compact PLCs are selected for in the first place.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Optical Isolation Architecture on Input Channels

Each of the eight input channels on the FPO-E16 passes the field signal through a photocoupler before it reaches the internal logic bus. The LED side of the coupler is driven by the 24 V DC field circuit; the phototransistor side feeds a Schmitt-trigger input stage that provides hysteresis against signal bounce. This two-stage arrangement achieves galvanic isolation between field wiring and the CPU backplane, with a typical isolation voltage rating of 500 V AC. The practical consequence is that ground loops originating from long cable runs or shared field power supplies cannot propagate noise into the CPU’s logic domain.

Side-Bus Backplane Communication

The FP0 expansion bus is a parallel, synchronous interface embedded in the mechanical side-connector. Unlike serial fieldbus expansion schemes (e.g., AS-Interface or IO-Link hubs), the FPO-E16 does not introduce a communication protocol layer between itself and the CPU. The CPU reads and writes the expansion I/O image in the same instruction cycle as its own onboard I/O, which means the expansion points carry no additional latency penalty relative to native I/O. For applications where input-to-output response time is a hard constraint — such as emergency-stop interlock chains or high-speed reject gates — this architecture is preferable to any networked I/O topology.

EMC Design Considerations

The module’s PCB layout routes high-frequency switching signals (transistor output switching transients) away from the input signal traces using a physical separation zone. Decoupling capacitors are placed at each output driver to suppress conducted emissions on the 24 V DC supply rail. The DIN-rail mounting clip provides a low-impedance chassis ground path, which, when the rail is properly bonded to the panel earth bar, forms part of the module’s EMC shielding strategy. CE marking confirms compliance with EN 61131-2 (programmable controllers — equipment requirements and tests), which includes immunity tests for electrostatic discharge (ESD), radiated RF immunity, and fast transient/burst (EFT) events.

Output Driver Protection

Transistor output variants incorporate a flyback suppression diode across each inductive load terminal. This clamps the voltage spike generated when an inductive load (solenoid valve, relay coil, motor contactor) is de-energized, protecting the output transistor from avalanche breakdown. Relay output variants provide inherent isolation between the load circuit and the logic supply, making them suitable for mixed-voltage load circuits (e.g., 110 V AC solenoids in a 24 V DC control system).

System Integration Benefits

• Zero-latency I/O expansion: Expansion points are scanned synchronously with the CPU’s main I/O image table. There is no inter-module communication delay, preserving the sub-millisecond determinism of the FP0 platform for time-critical interlock and sequencing logic.
• Transparent address mapping: The CPU assigns I/O addresses to the FPO-E16 automatically at power-up based on its physical position in the expansion chain. No DIP-switch or software address configuration is required, eliminating a common source of commissioning errors in multi-module installations.
• Unified diagnostic visibility: LED status indicators on each input and output channel provide real-time field-level diagnostics without requiring a laptop or HMI connection. Maintenance personnel can verify signal state at the module face during live troubleshooting.
• Scalable I/O density: Up to three FPO-E16 units can be chained to a single FP0 CPU, extending total I/O from the CPU’s native count to a maximum of 128 points. This allows a single CPU to manage complex multi-station machine sequences without a distributed I/O network.
• Consistent programming model: Expansion I/O points appear in the FPWIN Pro ladder program as standard X/Y addresses, identical in syntax to onboard I/O. Engineers familiar with the FP0 platform require no retraining to use expansion modules.
• Reduced panel wiring complexity: The side-bus mechanical connection eliminates inter-module signal cables. All field wiring terminates at the module’s own screw terminal block, keeping the wiring harness organized and reducing the probability of wiring errors during panel assembly.
• Long-term parts availability: The FP0 platform has been in continuous production for over 20 years. Panasonic maintains backward compatibility across FP0 CPU generations, meaning an FPO-E16 purchased today will operate with both legacy and current FP0 CPU variants without firmware modification.
• Compact thermal footprint: The module’s power dissipation at full I/O load is low enough that no forced-air cooling is required within the specified 0–55 °C ambient range. This simplifies thermal management calculations for sealed enclosure designs.

Quality Assurance & Global Logistics

Every FPO-E16 unit supplied through siemensplc.com is sourced as genuine Panasonic Industrial Devices SUNX product, manufactured in Japan under Panasonic’s ISO 9001-certified production processes. Units are not refurbished, relabeled, or sourced from gray-market channels. Each module is verified against the following pre-shipment checklist before dispatch from our Xiamen, China warehouse:

• Physical inspection: housing integrity, terminal block condition, side-bus connector pin alignment, and label legibility
• Power-on functional test: LED indicator verification across all I/O channels under controlled 24 V DC supply
• Date-code and serial-number cross-reference against procurement documentation
• Anti-static bag packaging with desiccant and humidity indicator card
• Outer carton with shock-absorbing foam insert rated for international air freight handling

Shipments originate from Xiamen, China (Xiamen Gaoqi International Airport, XMN) and are dispatched via DHL Express, FedEx International Priority, or SF Express International, depending on destination and customer preference. Standard transit times are 3–5 business days to most destinations in Southeast Asia, the Middle East, and Europe; 5–7 business days to North and South America. A tracking number is issued within 24 hours of dispatch. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with destination country customs requirements. For project orders requiring a certificate of conformity or third-party inspection, please advise at the time of inquiry.
