Panasonic SL-VTP16C1 Safety Light Curtain Output Module – SL Series

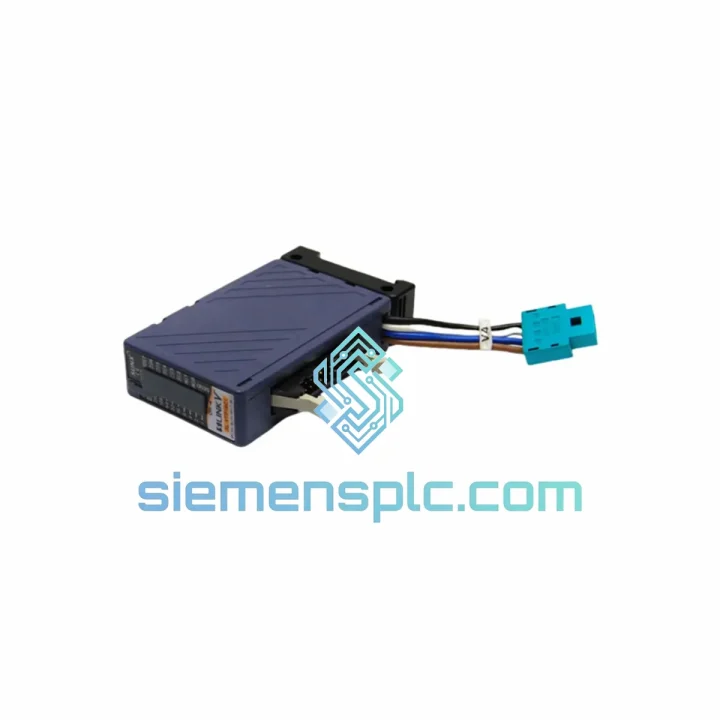

Panasonic SL-VTP16C1 — 16-Point NPN Addressable Output Expansion Unit for SL Series Safety Light Curtain Controllers

The SL-VTP16C1 is a dedicated NPN transistor output expansion unit developed by Panasonic Industrial Devices for integration within the SL Series safety light curtain platform. Its primary function within a safety control loop is to extend the discrete output capacity of an SL Series master controller, enabling independent, software-addressable switching of up to 16 NPN sink-type channels without additional relay hardware. In machine safety architectures where zone-selective muting, multi-axis interlocking, and indicator-driven feedback must operate concurrently, the SL-VTP16C1 provides the output density and deterministic switching behavior required to meet those demands within a single DIN-rail module.

Unlike generic relay output boards, the SL-VTP16C1 communicates with the SL Series controller via a proprietary expansion bus, meaning output state transitions are governed by the controller’s internal safety logic engine rather than by asynchronous PLC scan cycles. This architectural decision eliminates the latency uncertainty introduced when routing safety-critical output commands through a general-purpose fieldbus, and it preserves the integrity of the safety function across all 16 channels simultaneously.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The SL-VTP16C1 is built around an open-collector NPN transistor array driven by an internal address decoder. When the SL Series master controller transmits an output command frame over the expansion bus, the decoder on the SL-VTP16C1 parses the address field and activates the corresponding transistor gate(s) within a single bus cycle. This synchronous decode-and-switch mechanism means that all 16 outputs can be updated in a single controller scan without the polling overhead associated with fieldbus-attached I/O slaves.

EMC Design Considerations: The module’s PCB layout separates the low-voltage logic domain from the transistor output stage using a ground plane partition, reducing conducted noise coupling from inductive loads (solenoid valves, relay coils) back into the address decoder circuitry. Transient voltage suppression (TVS) diodes are placed at each output terminal to clamp inductive kickback below the transistor’s V_CE breakdown threshold, protecting the output stage without requiring external flyback diodes on every load.

Bus Isolation Architecture: The expansion bus interface incorporates optical isolation between the bus receiver and the output driver logic. This galvanic barrier prevents ground potential differences between the SL controller cabinet and remote output loads from introducing common-mode noise into the bus communication layer — a critical design requirement in installations where the SL-VTP16C1 is mounted in a sub-panel physically separated from the main safety controller enclosure.

Thermal Management: At full load (16 channels × 100 mA = 1.6 A aggregate), the transistor array dissipates approximately 2.4 W (based on 1.5 V residual voltage). The module’s housing incorporates ventilation slots aligned with the transistor package positions to promote natural convection airflow along the DIN rail axis, maintaining junction temperatures within safe operating limits at the rated 55 °C ambient ceiling.

System Integration Benefits

• Direct NPN PLC Compatibility: Sink-type outputs connect natively to NPN-input PLC modules (Mitsubishi MELSEC, Omron CJ/CS, Keyence KV, Panasonic FP Series) without interposing relays, eliminating an entire wiring tier and its associated failure modes.
• Software-Defined Zone Mapping: Output-to-zone assignments are configured in the SL controller’s parameter table rather than in hardware wiring, allowing zone reconfiguration during machine retooling without panel modifications — a measurable reduction in changeover downtime.
• Deterministic Output Latency: Because output commands are processed within the SL controller’s safety scan cycle and transmitted over the dedicated expansion bus, output switching latency is bounded and repeatable, supporting time-critical interlock sequences where PLC-routed I/O would introduce scan-cycle jitter.
• Scalable Output Architecture: Multiple SL-VTP16C1 units can be cascaded on the SL expansion bus, allowing the output count to scale linearly with machine complexity without replacing the safety controller or adding a separate safety relay matrix.
• Reduced Panel Footprint: Consolidating 16 NPN outputs into a single DIN-rail module replaces an equivalent bank of discrete output relays, recovering panel space and reducing the number of terminal connections subject to vibration-induced loosening.
• Integrated Diagnostic Transparency: Output channel status is readable by the SL controller, enabling the controller to detect open-load or short-circuit conditions on individual channels and report them via its diagnostic interface — providing fault localization without external test equipment.
• Simplified Commissioning: Address assignment is performed through the SL controller’s configuration interface; no DIP switches or jumpers on the SL-VTP16C1 itself are required, reducing commissioning errors associated with manual address setting on distributed I/O modules.
• Consistent Signal Integrity Across All 16 Channels: The shared 24 V DC supply rail is decoupled at the module level with bulk capacitance, preventing simultaneous switching of multiple outputs from causing supply rail droop that could be misinterpreted as a logic-low condition by downstream PLC inputs.

Quality Assurance & Global Logistics

Every SL-VTP16C1 unit supplied by siemensplc.com is sourced as a genuine Panasonic OEM component, shipped in original factory packaging with intact manufacturer labels and lot traceability markings. Units are stored in a temperature- and humidity-controlled warehouse in Xiamen, China, consistent with Panasonic’s recommended storage conditions for electronic components (15 °C to 35 °C, 45% to 75% RH).

Prior to dispatch, each unit undergoes a pre-shipment inspection protocol that includes: visual verification of OEM packaging integrity, label authenticity cross-check against Panasonic part number databases, and physical condition assessment. Units that do not pass inspection are quarantined and not shipped.

Xiamen’s geographic position — served by Xiamen Gaoqi International Airport (XMN) and the Port of Xiamen — provides direct air freight access to major industrial hubs across Southeast Asia, Europe, the Middle East, and the Americas. Standard air freight transit times from Xiamen to Singapore, Dubai, Frankfurt, and Los Angeles are typically 3–7 business days depending on carrier and customs clearance. Full export documentation is prepared for every shipment: commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8536.90 applicable for output control modules), facilitating smooth customs clearance in most jurisdictions.

A 12-month warranty is provided on all genuine units from the date of shipment. Warranty coverage addresses manufacturing defects under normal operating conditions as defined in the Panasonic SL-VTP16C1 datasheet. Warranty claims are processed through siemensplc.com’s technical support team, with replacement or credit resolution targeted within 10 business days of confirmed defect verification.
