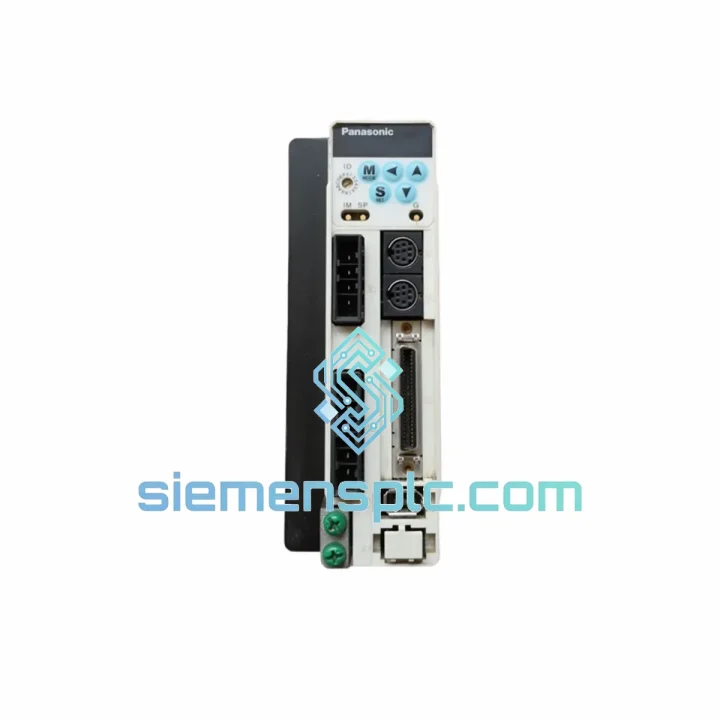

Panasonic MBDDT2210053 AC Servo Drive – MINAS A Series

Panasonic MBDDT2210053 – Integrated AC Servo Drive Unit in the MINAS A Series Control Architecture

The Panasonic MBDDT2210053 is a fully integrated AC servo drive unit belonging to the MINAS A series — a product line engineered for deterministic motion control in demanding industrial environments. Unlike general-purpose variable-frequency drives, this unit is purpose-built for closed-loop servo operation, combining a high-bandwidth current regulator, a position/speed/torque control processor, and a dedicated encoder interface into a single compact housing. Its architecture is optimized for applications where positioning repeatability, dynamic stiffness, and loop cycle time are non-negotiable engineering constraints.

At the electrical core, the MBDDT2210053 operates on a single-phase or three-phase 200–230 VAC input and delivers a rated continuous output of 200 W to the connected servo motor. The DC bus is maintained through an internal rectifier and capacitor bank sized to absorb regenerative energy spikes during deceleration cycles — a critical design consideration in high-inertia or high-cycle-rate applications. The IGBT inverter stage switches at a carrier frequency that keeps audible noise below perceptible thresholds while maintaining sufficient bandwidth for the inner current loop to track torque commands without phase lag distortion.

The encoder interface supports both incremental and absolute encoder protocols, allowing the drive to maintain absolute position reference across power cycles when paired with a battery-backed absolute encoder. This eliminates the homing routine requirement on machine restart — a measurable productivity gain in multi-axis systems where sequential homing introduces cycle-time overhead. The serial encoder communication runs at high baud rates over a dedicated differential line pair, providing noise immunity consistent with IEC 61800-3 Category C2 EMC requirements.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MBDDT2210053 implements a three-loop cascade control architecture: an outer position loop, an intermediate velocity loop, and an inner current (torque) loop. Each loop operates at a distinct sampling rate, with the current loop executing at the highest frequency — typically in the range of 16–32 kHz — to ensure that torque ripple from IGBT switching does not propagate into the velocity or position loops. This hierarchical structure allows each loop’s bandwidth to be tuned independently, giving commissioning engineers precise control over the trade-off between response speed and mechanical resonance excitation.

The EMC design of the drive addresses both conducted and radiated emissions. On the conducted side, a common-mode choke and X/Y capacitor network at the AC input attenuate high-frequency noise injected back onto the supply rail. The DC bus layout minimizes loop area between the IGBT bridge and the bus capacitors, reducing parasitic inductance and the associated voltage overshoot during switching transitions. On the radiated side, the drive enclosure provides shielding continuity, and the encoder cable interface uses differential signaling with matched impedance termination to suppress common-mode interference — a practical necessity in environments with variable-frequency drives, contactors, and welding equipment operating in proximity.

The overload protection logic uses a thermal model running in the drive’s DSP rather than relying solely on a bimetallic relay. This electronic thermal model integrates I²t over time, accounting for the actual duty cycle of the load rather than applying a fixed trip threshold. The result is a protection scheme that permits short-duration peak currents up to three times the rated value — necessary for acceleration torque in high-inertia loads — while accurately predicting thermal accumulation and issuing a pre-fault warning before a hard trip occurs. This warning output can be wired to a PLC input, enabling the control system to execute a controlled deceleration rather than an abrupt e-stop.

The absolute encoder battery backup circuit maintains position data during power-off periods without drawing from the main DC bus. The battery voltage is monitored continuously, and a low-battery alarm is generated with sufficient lead time for scheduled maintenance — typically several months before actual data loss risk. This design avoids the single-point failure mode where an undetected dead battery causes a machine to lose its coordinate reference mid-production run.

System Integration Benefits

• Deterministic pulse-train interface: The drive accepts line-driver differential pulse inputs at up to 500 kpps, compatible with the high-speed output modules of Siemens S7-1200/1500, Mitsubishi iQ-R, and Omron NX series PLCs without additional signal conditioning hardware.
• Analog torque/speed command with 14-bit resolution: The ±10 V analog input is processed at 14-bit resolution, providing 16,384 discrete command levels — sufficient for smooth velocity ramps in tension-control and winding applications where coarse quantization introduces visible speed steps.
• Auto-tuning with inertia estimation: The drive’s auto-tuning routine measures load inertia by executing a controlled oscillation sequence and adjusts the velocity loop gain and integral time automatically. This reduces commissioning time from hours to minutes on standard mechanical loads.
• Real-time fault diagnostics via RS-485: All drive status registers, fault codes, and thermal model values are accessible over RS-485 using the Panasonic MINAS communication protocol. A SCADA or HMI system can poll these registers at 10 ms intervals, providing continuous health monitoring without interrupting motion execution.
• Notch filter for resonance suppression: A configurable second-order notch filter in the velocity loop allows the commissioning engineer to attenuate a specific mechanical resonance frequency — typically caused by coupling compliance or gearbox backlash — without reducing the overall loop bandwidth. This is particularly valuable in long-shaft or belt-drive configurations.
• Regenerative energy management: The internal regenerative resistor handles the energy returned during deceleration of low-inertia loads. For high-inertia applications, the external resistor terminal allows connection of a larger dissipation resistor, preventing DC bus overvoltage faults during rapid deceleration cycles without requiring a separate braking chopper unit.
• Absolute position retention across power cycles: When paired with a 17-bit absolute encoder, the drive retains axis position through power interruptions. On restart, the controller reads the current absolute position directly — eliminating the homing sequence and reducing machine restart time, which is measurable in high-throughput production environments.
• Compact integrated form factor: The motor and drive are mechanically integrated, reducing the number of inter-unit cable connections. Fewer connectors mean fewer potential failure points, lower installation labor, and a smaller control cabinet footprint — a practical advantage in machine designs where panel space is constrained.

Quality Assurance & Global Logistics

Every Panasonic MBDDT2210053 unit supplied through siemensplc.com is sourced from verified supply channels and undergoes a structured pre-shipment inspection process. Visual inspection confirms label integrity, connector condition, and absence of physical damage. Where test equipment is available, functional verification checks encoder communication, drive enable response, and fault output behavior before the unit is packaged for shipment.

Documentation provided with each shipment includes a packing list with serial number traceability, a Certificate of Origin, and a test report on request. For projects requiring additional traceability — such as nuclear, aerospace, or pharmaceutical automation — extended documentation packages can be arranged prior to order confirmation.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling both air freight and sea freight dispatch. Standard express shipments via DHL, FedEx, or UPS reach most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–7 business days. Export customs documentation, including HS code classification and commercial invoice preparation, is handled in-house to minimize clearance delays at the destination port.

All units are covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from stock where available to minimize production downtime for the end customer.
