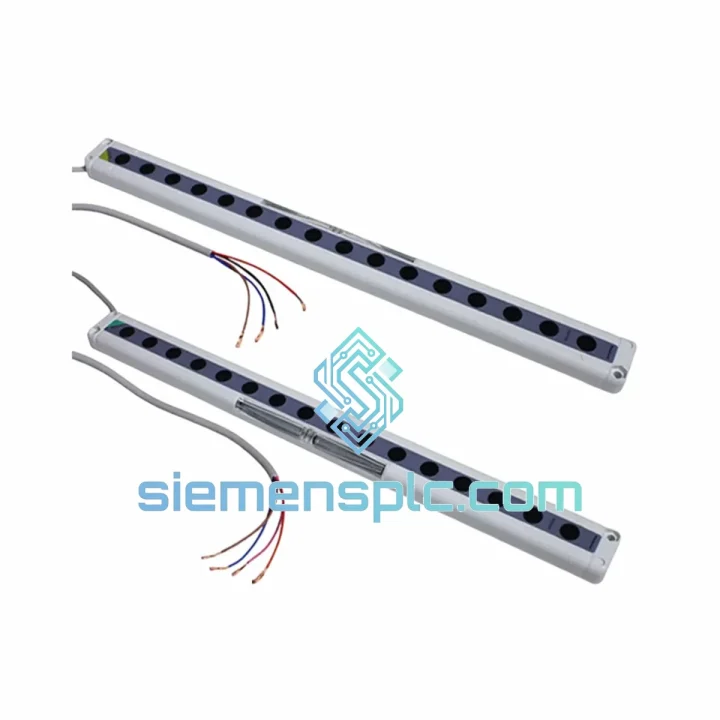

Panasonic NA2-N16P Safety Light Curtain Controller

NA2-N16P Down? Every Minute of Downtime Costs You Money — We Ship Same Day

Your press line just tripped. The safety controller is dead. Production is stopped and the clock is running. You’ve already checked the obvious — power supply is fine, E-stop circuit is intact — but the NA2-N16P isn’t responding. You need a verified replacement unit in hand, not a lead time quote for six weeks.

We stock the Panasonic NA2-N16P in Xiamen and ship via DHL Express within 24 hours of order confirmation. No middlemen, no waiting on distributor allocation. This is the exact OEM unit — same firmware revision, same beam configuration, same OSSD output logic — ready to drop into your existing NA2 series installation without re-engineering your safety circuit.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here are the failure modes I see most often with the NA2-N16P and what to check before you condemn the unit — and what to watch when you install the replacement.

Common Fault Codes & Root Causes:

• ERR-1 / OSSD lockout: Almost always a wiring fault on the OSSD output lines — check for short-circuit to 0V or cross-wiring between OSSD1 and OSSD2. The NA2-N16P has internal OSSD monitoring; a single-wire fault will latch the unit into lockout. Power-cycle alone won’t clear it — you must remove the fault first.
• Beam alignment fault (red LED, no green): Don’t assume the controller is dead. Check emitter/receiver alignment with the NA2 alignment tool or a piece of white card. Vibration from nearby presses shifts the mounting bracket over time. Re-align before swapping the controller.
• Intermittent OSSD dropout under load: Check the 24 V DC supply rail under load. The NA2-N16P is sensitive to supply dips below 21.6 V. A failing SMPS or long cable run with undersized wire (use ≥0.75 mm² for runs over 10 m) will cause nuisance trips that look like controller failure.
• Unit powers up but safety relay won’t pull in: Verify the external device monitoring (EDM) loop is correctly wired. If your safety relay has a feedback contact wired into the NA2-N16P’s EDM input and that contact is welded or open, the controller will refuse to enable outputs. This is a feature, not a fault.

Replacement Configuration Checklist:

• Confirm the replacement unit’s DIP switch settings match the failed unit — specifically: muting function enable/disable, output mode (auto-reset vs. manual-reset), and beam blanking configuration. These are set via the onboard DIP switches on the controller housing.
• Manual-reset mode is the default for most safety-rated installations. If your line was running in auto-reset, document this before the failed unit is removed — the new unit ships in manual-reset by default.
• After installation, perform a full functional test per IEC 61496: introduce a test object of the minimum detectable object size into the detection zone and verify OSSD outputs de-energize correctly. Log the test result.
• If integrating with a Siemens S7 or S7-1200/1500 safety CPU via F-DI module, verify the OSSD signal levels are within the F-DI input threshold — 24 V DC PNP OSSD is compatible with standard Siemens F-DI modules without additional signal conditioning.

Reliability in Harsh Conditions

The NA2-N16P is not a lab instrument. It was designed for the floor — stamping presses, robotic cells, conveyor lines — environments where vibration is constant, ambient temperature swings 30°C between morning startup and afternoon peak, and coolant mist is a daily reality.

The IP65-rated housing keeps fine metal swarf and cutting fluid out of the optics and electronics. The operating temperature range of -10°C to +55°C covers unheated warehouses in northern winters and poorly ventilated press shops in summer. The internal optics are factory-aligned and sealed; there is no field calibration required after installation beyond beam alignment between emitter and receiver.

Panasonic’s NA2 series has a documented MTBF that supports multi-year continuous operation in Category 4 / PLe safety applications. When a unit does fail after years of service, it is almost always a connector or wiring issue — not the controller itself. That said, when the controller does fail, you need a replacement that is electrically and functionally identical to the original. A compatible substitute with different firmware or output timing can invalidate your safety validation and require a full re-assessment under EN ISO 13849.

Every unit we ship is the genuine Panasonic OEM part — same part number, same firmware, same factory test certification. No substitutes, no re-labeled clones.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. This matters when you’re in an emergency shutdown situation and every hour counts.

• Order cutoff: Orders confirmed before 14:00 CST ship same business day via DHL Express or FedEx International Priority.
• Transit times: Southeast Asia 1–3 days | Middle East 3–5 days | Europe 3–5 days | North America 4–6 days | Australia 3–5 days.
• Documentation: Commercial invoice, packing list, and Certificate of Origin issued with every shipment. HS Code 8536.50 declared. EX1 export declaration available for EU customs.
• Packaging: Anti-static foam insert inside a double-wall export carton. Moisture barrier bag included. The unit arrives in the same condition it left our warehouse — we’ve shipped to oil fields in the Middle East and automotive plants in Eastern Europe without a single transit damage claim.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.

For urgent orders requiring same-day confirmation and shipping, contact us directly on WhatsApp — we respond within 15 minutes during business hours.
