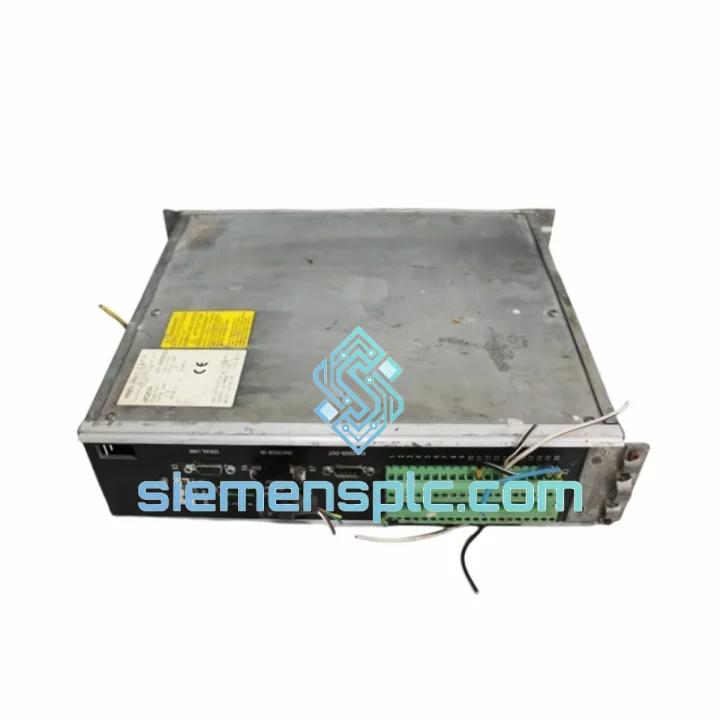

Parker HPD2S5N Driver Input Module

Parker HPD2S5N: Stop the Bleeding — Every Hour of Downtime Costs You Real Money

Your HPD-series drive just faulted. The line is cold. Maintenance is standing by. You’ve already pulled the HPD2S5N and confirmed it’s the culprit — now you need a replacement in hand, not a lead-time quote. We stock the Parker HPD2S5N Driver Input Module in Xiamen and ship same-day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive within 3–5 business days. No waiting for factory allocation. No minimum order. One unit ships today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years on the floor teaches you that most HPD2S5N failures fall into three buckets. Know which one you’re dealing with before you pull the card — it saves you from replacing the wrong component.

Fault Pattern 1 — Drive trips on Input Signal Loss or Reference Fault
This is the most common failure mode. The HPD2S5N conditions the analog reference signal (typically 0–10 V or 4–20 mA) before it reaches the drive’s control board. When the input op-amp stage degrades — usually from sustained overvoltage on the reference input or capacitor aging — the drive sees a floating or erratic reference and trips. Confirm by temporarily jumpering the reference input to a known-good signal source. If the fault clears, the HPD2S5N is your culprit.

Fault Pattern 2 — Intermittent faults under vibration or thermal cycling
Cold solder joints on the edge connector are a known failure point on older HPD series cards. The fault appears at startup or after the cabinet reaches operating temperature, then clears when the card cools. Reseat the card first. If the fault returns within one shift, replace the module — reflowing solder on a live production card is not a sustainable fix.

Fault Pattern 3 — No fault code, but drive output is erratic or oscillating
Check the DIP switch configuration on the HPD2S5N before assuming the card is dead. The module has onboard switches that set input signal type (voltage vs. current), scaling, and inversion. If a previous technician changed these settings or the switches have shifted from vibration, the drive will behave erratically without logging a hard fault. Document the original switch positions before removal.

Replacement Checklist:

• Power down the drive and lock out / tag out before removing the card
• Photograph the DIP switch positions on the old card before extraction
• Match DIP switch settings exactly on the new HPD2S5N before insertion
• Inspect the backplane connector for bent pins or corrosion — a damaged backplane will kill a new card within weeks
• After insertion, perform a slow ramp test before returning to full-speed production
• Log the replacement in your maintenance record with the new card’s serial number

Reliability in Harsh Conditions

Parker designed the HPD series for continuous-duty industrial environments, not climate-controlled server rooms. The HPD2S5N’s PCB uses conformal coating to resist moisture ingress — critical in food processing, marine, and chemical plant installations where humidity regularly exceeds 80% RH. The card’s thermal design allows operation up to 55°C ambient without derating, which covers the majority of enclosed industrial cabinet installations even in tropical climates.

Vibration resistance is achieved through a combination of through-hole component construction on the critical signal path (more mechanically robust than SMD under sustained vibration) and a positive-locking edge connector that prevents the card from backing out of the backplane under shock loads. In our experience, HPD2S5N cards pulled from 15-year-old installations in steel mills and paper mills still test within spec — the failure modes described above are almost always electrical stress or connector-related, not structural.

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions and packed in anti-static bags with desiccant. Export cartons are double-walled and foam-lined. We have shipped to offshore platforms, desert mining sites, and high-altitude installations — the card arrives in the same condition it left our shelf.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx gateway access. Here is how a typical urgent order moves:

• Order confirmed before 15:00 CST: Same-day pick, pack, and handover to carrier
• DHL Express Worldwide: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, Americas 3–5 days
• FedEx International Priority: Available as alternative; comparable transit times, sometimes faster for US destinations
• Documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. HS code pre-declared to minimize customs clearance delays
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp
• Customs: We declare accurate values and descriptions. We do not under-declare. This protects your import compliance and avoids customs holds that would defeat the purpose of express shipping

For orders requiring formal export documentation, EUC, or specific country-of-origin certification, contact us before ordering — we can accommodate most requirements with 24 hours notice.
