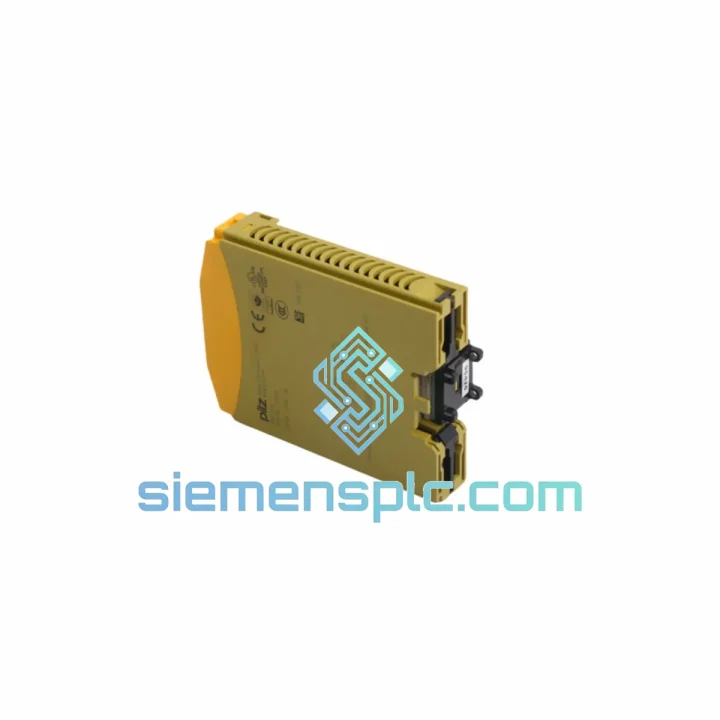

PILZ 773540 PNOZ ml1p Safety Relay Module – PNOZmulti 2

PILZ 773540 PNOZ ml1p — Expansion Safety Relay Module for Deterministic Machine Safety Architectures

The PILZ 773540 PNOZ ml1p is a dedicated expansion relay module within the PNOZmulti 2 modular safety controller platform. Its primary function in a control loop is to extend the output switching capacity of a PNOZmulti 2 base unit — specifically by adding independently monitored, dual-channel safety relay outputs that can be assigned to discrete safety functions such as emergency stop monitoring, safety gate interlocking, and two-hand control circuits. Unlike standalone safety relays, the PNOZ ml1p operates under the logic authority of the base unit’s internal safety CPU, meaning all output switching decisions are governed by a pre-validated safety program rather than hardwired relay logic. This architecture eliminates the combinatorial wiring complexity typical of discrete relay panels while maintaining IEC 62061 SIL 3 and ISO 13849-1 PLe / Category 4 compliance across the entire safety function chain.

In a typical machine safety loop, the PNOZ ml1p sits between the base unit’s internal bus and the field-level actuators — contactors, valve solenoids, or motor starters — that must be de-energized upon a safety demand. The module’s relay contacts are monitored for welding and contact feedback through the base unit’s diagnostic engine, providing continuous proof-test coverage without requiring manual periodic testing at the field level. This is a measurable advantage in high-cycle applications such as press brakes and robotic welding cells, where relay contact wear is a primary failure mode.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Forcibly Guided Relay Contact Architecture: The PNOZ ml1p uses positively driven (forcibly guided) relay contacts per IEC 61810-3. This mechanical linkage between NO and NC contacts ensures that if a contact welds closed under fault conditions, the opposing contact cannot close — a physical interlock that prevents the safety output from being commanded ON while a fault exists. The base unit reads the NC feedback path continuously; any discrepancy between commanded state and feedback state triggers an immediate safety demand and locks the module in a safe state until the fault is acknowledged.

Backplane Bus Isolation and Arbitration: Communication between the PNOZ ml1p and the base unit occurs over the PNOZmulti 2 internal bus — a short-range, deterministic serial link with a fixed cycle time. The bus is electrically isolated from the field wiring side, providing galvanic separation that limits the propagation of transient overvoltages from inductive field loads (contactors, solenoids) into the base unit’s logic circuitry. This isolation boundary is a key EMC design element: field-side switching transients with rise times in the nanosecond range are attenuated before they can couple into the safety CPU’s data path.

EMC Design and Conducted Emission Suppression: The module’s PCB layout routes high-current relay switching paths away from the low-level signal traces connected to the bus interface. Internal snubber networks across the relay coil suppress back-EMF spikes generated during coil de-energization. The result is a conducted emission profile that complies with EN 61000-6-4 (industrial emission) and EN 61000-6-2 (industrial immunity), allowing installation in control cabinets alongside variable-frequency drives and servo amplifiers without additional shielding measures.

Proof-Test Coverage via Automatic Diagnostic: The base unit’s safety CPU executes a continuous diagnostic cycle that includes output relay state verification. By comparing the commanded output state against the feedback contact state at each scan cycle, the system achieves a diagnostic coverage (DC) value consistent with Category 4 architecture requirements — meaning dangerous undetected failures are identified within the proof-test interval defined in the safety function’s PFH calculation. This eliminates the need for scheduled manual proof tests on the relay contacts themselves, reducing maintenance overhead in high-availability production environments.

System Integration Benefits

• Deterministic Output Response: The module’s response time from safety demand to relay contact opening is ≤ 20 ms, a fixed, validated parameter that can be directly entered into the machine’s overall safety function response time budget without additional measurement.
• Zero-Configuration Hardware Expansion: Physical installation requires only DIN rail mounting and backplane bus connection. The PNOZmulti Configurator software automatically detects the module type and slot position; no DIP switches, address coding, or manual parameterization are required at the hardware level.
• Validated Safety Function Library: The base unit’s configurator includes pre-validated function blocks for E-stop, safety gate, two-hand control, and muting. Assigning the ml1p’s outputs to these function blocks inherits the block’s certified PFH and MTTFd values, eliminating the need for independent safety calculations for the output stage.
• Integrated Diagnostic Transparency: Fault codes are reported to the base unit’s status LEDs and, where a fieldbus communication module is present, to the PLC’s diagnostic buffer. Maintenance personnel can identify the specific fault type (contact weld, supply undervoltage, bus communication error) without oscilloscope measurement or manual relay inspection.
• Scalable I/O Architecture: Multiple PNOZ ml1p modules can be stacked on a single base unit (subject to base unit expansion limits), allowing the safety I/O count to be scaled incrementally as machine complexity grows — without replacing the base unit or revalidating the existing safety program.
• Reduced Panel Wiring Density: Consolidating multiple safety relay functions under a single base unit’s logic reduces the number of discrete relay modules, terminal blocks, and cross-wiring runs in the control cabinet. This directly lowers cabinet assembly time and reduces the probability of wiring errors during commissioning.
• Consistent Switching Characteristics Across Service Life: The relay’s mechanical switching cycle rating (≥ 10 × 10⁶ operations) and the base unit’s contact wear monitoring ensure that output switching performance remains within specification throughout the module’s service life, supporting predictive maintenance scheduling.
• Compliance with Multi-Jurisdiction Safety Standards: CE marking covers EU Machinery Directive 2006/42/EC requirements; UL/cUL listing addresses North American NFPA 79 and CSA Z432 compliance; TÜV certification provides independent third-party validation. A single module SKU satisfies the documentation requirements for machine export to Europe, North America, and most Asian markets.

Quality Assurance & Global Logistics

Every PILZ 773540 PNOZ ml1p unit supplied through siemensplc.com is sourced as genuine original manufacturer stock. PILZ manufactures its PNOZmulti 2 series under ISO 9001-certified production processes at its facilities in Ostfildern, Germany. Each module leaves the factory with full traceability documentation including batch number, production date code, and factory acceptance test records embedded in the product label’s data matrix code.

Our warehouse is located in Xiamen, China — a major international logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port, both operating daily freight services to Europe, Southeast Asia, the Middle East, and the Americas. Standard shipment lead time from order confirmation to dispatch is 1–3 business days for in-stock units. Express air freight options (DHL, FedEx, UPS) deliver to most destinations within 3–7 business days. Sea freight consolidation is available for bulk orders exceeding 50 kg.

All units are packed in anti-static ESD bags, placed in original PILZ retail packaging where available, and secured in double-wall corrugated cartons with foam cushioning rated for the module’s vibration and shock specifications. Each shipment includes a packing list, commercial invoice, and certificate of origin for customs clearance. A 12-month warranty covers manufacturing defects; warranty claims are processed with direct technical liaison to the supply chain for rapid replacement.
