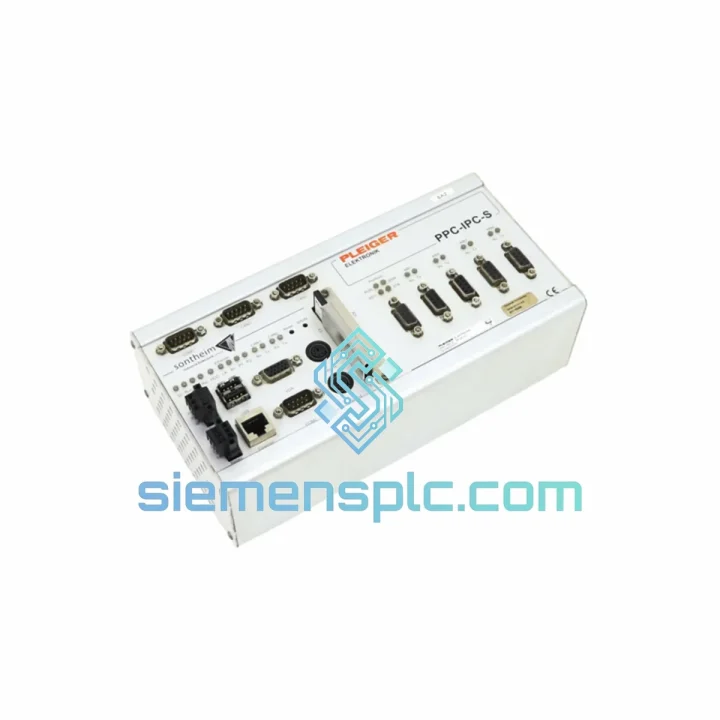

PLEIGER PPC-IPC-S Flash Memory Module – PPC-IPC Series

PLEIGER PPC-IPC-S Flash Memory Card — Non-Volatile Storage Architecture for PPC-IPC Series Process Controllers

The PLEIGER PPC-IPC-S is the dedicated flash memory module for PLEIGER’s PPC-IPC series of programmable process controllers, deployed extensively across marine valve actuator systems, offshore automation platforms, and heavy industrial process control loops. Within the PPC-IPC controller architecture, this module functions as the sole non-volatile storage medium: it carries the executable control program, parameterization data, I/O mapping tables, and system configuration records that define the controller’s operational behavior. Without a functional PPC-IPC-S, the host controller cannot initialize its runtime environment — the CPU will fail to load its application layer, leaving the entire control loop in a safe-stop or undefined state.

PLEIGER Maschinenbau GmbH & Co. KG, headquartered in Witten, Germany, has engineered valve actuator control systems for demanding marine and industrial environments since 1919. The PPC-IPC series represents their current-generation programmable controller platform, found aboard LNG carriers, FPSOs, offshore drilling units, and onshore refinery automation systems. The PPC-IPC-S flash card is not a generic storage peripheral — it is a purpose-built module with a defined electrical interface, firmware compatibility matrix, and mechanical form factor matched to the PPC-IPC controller backplane slot.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PPC-IPC-S occupies a dedicated memory slot on the PPC-IPC controller’s main board, interfacing directly with the CPU’s program loader via a parallel or serial flash bus — the exact bus topology is proprietary to PLEIGER’s hardware design. At power-on, the controller’s boot sequence performs a cyclic redundancy check (CRC) on the flash card contents before transferring the application image into RAM for execution. This two-stage boot architecture — flash-to-RAM load — means the PPC-IPC-S is read during initialization but is not written to during normal runtime operation, which significantly extends the module’s write-cycle endurance and reduces wear-leveling demands compared to general-purpose storage media.

From an EMC design perspective, the PPC-IPC-S is housed within the controller’s shielded enclosure, which provides a Faraday cage effect against conducted and radiated interference. Marine environments present particularly aggressive EMI profiles: high-power motor drives, radar systems, and VHF/UHF communication equipment generate broadband interference that can corrupt unshielded memory interfaces. PLEIGER’s controller design routes the flash bus traces with controlled impedance and ground plane isolation to maintain signal integrity under these conditions. The module’s connector interface uses gold-plated contacts to resist oxidation in high-humidity marine atmospheres, maintaining reliable electrical continuity across the module’s service life.

The flash memory cells themselves use a floating-gate transistor architecture, where charge stored on an isolated polysilicon gate determines the logical state of each cell. This architecture provides inherent radiation tolerance compared to DRAM-based storage, making the PPC-IPC-S suitable for environments where cosmic ray-induced single-event upsets (SEUs) are a concern — relevant for offshore platforms at high latitudes. The absence of moving parts and the solid-state construction eliminate mechanical failure modes entirely, giving the module a mean time between failures (MTBF) that substantially exceeds electromechanical storage alternatives.

System Integration Benefits

• Zero-Configuration Replacement: The PPC-IPC-S carries the complete application program and parameterization data. A verified replacement card restores the controller to its last-saved operational state without requiring re-programming from an engineering workstation, provided the firmware version on the card matches the controller’s bootloader.
• Deterministic Boot Sequence: The flash-to-RAM load architecture ensures a fixed, repeatable initialization time. The controller’s watchdog timer is calibrated against this boot window, so a correctly functioning PPC-IPC-S guarantees the controller passes its self-test within the expected timeframe — critical for safety-instrumented systems with defined startup tolerances.
• Program Version Control: Each PPC-IPC-S card stores a specific revision of the application program. Maintaining spare cards with known-good program versions provides a hardware-level version control mechanism, enabling rapid rollback to a verified configuration after a failed firmware update.
• Isolation of Storage from Processing: By separating non-volatile storage (PPC-IPC-S) from the CPU module, PLEIGER’s architecture allows independent replacement of either component. A CPU fault does not corrupt the flash card, and a flash card fault does not damage the CPU — reducing the scope and cost of fault recovery.
• Diagnostic Transparency: The PPC-IPC controller’s diagnostic system reports flash card read errors, CRC failures, and interface faults as discrete fault codes, enabling maintenance personnel to isolate a failing PPC-IPC-S without ambiguity. This fault granularity reduces mean time to repair (MTTR) by eliminating diagnostic uncertainty.
• Compatibility with Redundant Controller Configurations: In dual-redundant PPC-IPC controller setups, both primary and standby controllers require synchronized flash card contents. The PPC-IPC-S supports controlled program transfer procedures that maintain synchronization between redundant units, preserving system availability during planned maintenance.
• Long-Term Spare Parts Availability: Flash memory modules have defined end-of-life timelines tied to semiconductor manufacturing cycles. Procuring verified PPC-IPC-S units from established industrial distributors ensures access to compatible stock before OEM availability is discontinued, supporting long-term asset management for vessels and plants with 20–30 year operational horizons.
• Reduced Commissioning Risk: Using an OEM-specification PPC-IPC-S eliminates the risk of firmware incompatibility, interface mismatch, or capacity mismatch that arises from attempting to substitute generic flash storage. The engineering cost of troubleshooting a non-OEM substitution failure in a live industrial environment typically exceeds the cost differential many times over.
