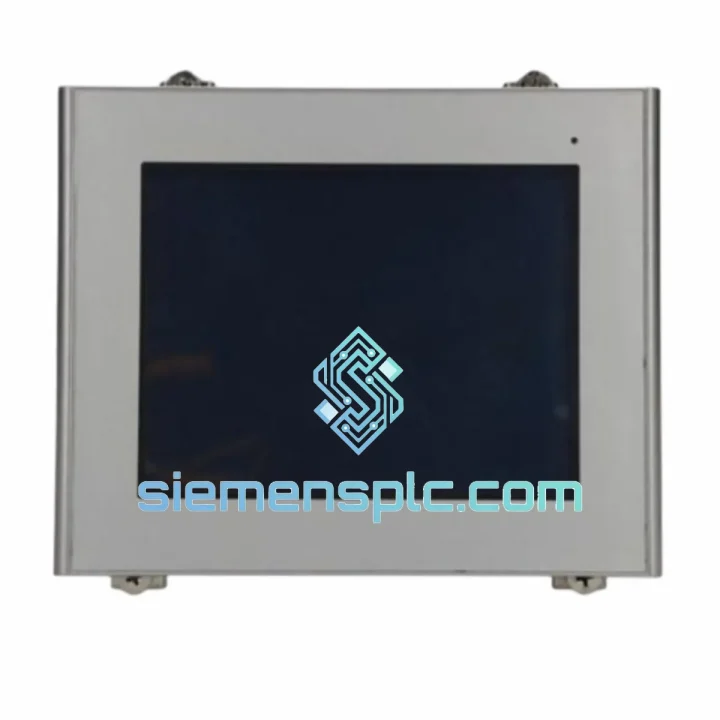

Pro-face GP2301-TC41-24V HMI Touch Panel – GP2000 Series

Pro-face GP2301-TC41-24V: 5.7-Inch STN Color HMI in Distributed Control Architectures

The GP2301-TC41-24V is a 5.7-inch STN color human-machine interface manufactured by Digital Electronics Corporation under the Pro-face brand. Within a distributed control loop, this panel occupies the operator layer — the boundary between field-level logic execution and human decision-making. Its role is not decorative; it is the primary conduit through which process variables, alarm states, and setpoint commands are exchanged between the PLC/DCS layer and plant personnel. The unit operates on a 24 VDC supply rail, integrates directly into cabinet wiring without an intermediate power converter, and communicates with upstream controllers via a multi-protocol SIO port supporting RS-232C, RS-422, and RS-485 physical layers. This architecture allows the GP2301-TC41-24V to interface with a broad range of serial-based PLCs without gateway hardware, reducing latency in the operator feedback loop and eliminating an additional failure point in the communication chain.

The panel’s 320 × 240 QVGA resolution renders process mimics, trend graphs, and alarm lists with sufficient pixel density for cabinet-mounted operator stations. The analog resistive touch surface provides deterministic input registration across the full operating temperature range of 0°C to 50°C, making it suitable for environments where capacitive touch performance degrades due to glove use or condensation. The front panel carries an IP65 ingress protection rating, qualifying the unit for wash-down adjacent zones and dusty production floors without additional enclosure engineering.

Screen logic is authored in GP-PRO/PB III or GP-Pro EX and stored in onboard flash memory, eliminating dependency on a host PC during runtime. This self-contained execution model means the panel continues to serve its operator interface function even if the engineering workstation is offline — a critical characteristic in 24/7 continuous process environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

SIO Port Multi-Protocol Architecture: The GP2301-TC41-24V implements a single SIO port that is electrically configurable for RS-232C, RS-422, or RS-485 operation. This is not a software-only abstraction — the physical layer switching is handled at the transceiver level, allowing the panel to match the electrical characteristics of the target PLC’s communication port without external level converters. RS-422 full-duplex mode supports point-to-point communication at distances up to 1,200 meters, while RS-485 half-duplex mode enables multi-drop topologies where a single panel monitors multiple slave devices on a shared bus. This flexibility is particularly valuable in retrofit scenarios where the existing field wiring infrastructure must be preserved.

Analog Resistive Touch Mechanism: The 4-wire analog resistive touch layer operates by measuring voltage division across a resistive matrix when the surface is depressed. Unlike projected capacitive sensors, this mechanism is immune to electromagnetic interference from adjacent variable frequency drives and servo amplifiers — a common source of false touch events in motor control centers. The touch controller samples the X and Y voltage ratios at a fixed scan rate and applies a debounce algorithm before registering an input event, ensuring that mechanical vibration from nearby machinery does not generate spurious commands.

Flash-Based Screen Execution: Screen project data is compiled offline in GP-PRO/PB III and downloaded to the panel’s onboard NOR flash memory via the SIO port or a dedicated transfer cable. At runtime, the panel’s internal processor reads screen definitions, tag address mappings, and communication driver parameters directly from flash — there is no dependency on an SD card or external storage medium. This architecture eliminates the class of failures associated with removable media: card corruption, contact oxidation, and accidental removal during operation.

EMC Design Considerations: The GP2301-TC41-24V carries CE marking, which requires compliance with EN 61000-4 series immunity tests including electrostatic discharge (ESD), radiated RF immunity, electrical fast transient (EFT), and surge immunity. The front bezel and internal chassis are bonded to a common ground plane, providing a Faraday shield effect that attenuates externally coupled RF energy before it reaches the display driver and touch controller circuitry. The 24 VDC power input incorporates filtering to suppress conducted emissions from the supply rail, preventing noise generated by the panel’s internal switching circuits from propagating back into the cabinet power distribution.

Backlight and Display Longevity: The STN LCD panel is driven by a cold cathode fluorescent lamp (CCFL) backlight with a rated service life of approximately 50,000 hours at nominal operating temperature. The display controller implements a brightness control circuit that allows the backlight intensity to be adjusted via screen project configuration, enabling operators to reduce backlight drive current during low-ambient-light conditions — extending service life in applications where the panel runs continuously.

System Integration Benefits

• Zero-gateway serial connectivity: Direct RS-232C/RS-422/RS-485 connection to Mitsubishi FX/Q, Omron C/CJ/CS, Siemens S7-200/S7-300, Keyence KV, Panasonic FP, and Modbus RTU devices eliminates intermediate communication hardware and the associated configuration overhead.
• Deterministic scan-cycle alignment: The GP2301-TC41-24V’s communication driver polls PLC data registers at a configurable interval synchronized to the panel’s internal scan cycle, ensuring that displayed values reflect the most recent PLC output within a bounded latency window — critical for alarm response time compliance in process safety applications.
• Onboard alarm history logging: The panel stores alarm occurrence and acknowledgment timestamps in non-volatile memory, providing a local audit trail that remains accessible even if the upstream SCADA system is offline. This supports post-incident analysis without requiring historian infrastructure at every operator station.
• Multi-language screen support: GP-PRO/PB III supports Unicode character sets, allowing screen projects to include operator messages in multiple languages within a single project file. Language switching can be triggered by a PLC register value or an operator touch input, supporting multilingual workforces without maintaining separate screen project versions.
• IP65 front panel — no additional enclosure engineering: The sealed front bezel allows the panel to be mounted directly in a Type 12 or Type 4 enclosure cutout without a secondary protective cover, reducing cabinet fabrication cost and maintaining a clean operator interface aesthetic.
• Exact panel cutout compatibility: The 182 × 132 mm cutout dimension is shared across multiple GP2000 series variants, allowing like-for-like replacement of failed units without cabinet modification — minimizing unplanned downtime duration in production environments.
• Self-contained runtime execution: Screen logic executes entirely from onboard flash memory with no host PC dependency, ensuring the operator interface remains functional during network outages or engineering workstation maintenance windows.
• Configurable communication timeout handling: The panel’s driver layer implements configurable timeout and retry parameters for each communication link. When a PLC fails to respond within the defined window, the panel transitions affected tag displays to a defined fault state and generates a communication alarm — providing operators with immediate, unambiguous indication of a link failure rather than silently displaying stale data.

Quality Assurance & Global Logistics

Every GP2301-TC41-24V unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Units are powered on and subjected to a full functional verification sequence: display uniformity check across the active area, touch registration accuracy test at a 9-point grid, SIO port loopback communication test, and power supply input range verification at ±10% of nominal 24 VDC. Only units that pass all checkpoints are cleared for packaging.

Genuine Pro-face units are sourced through verified industrial supply channels with full traceability documentation available on request. Each unit is individually packaged in anti-static foam with moisture barrier packaging to protect the LCD panel and PCB assemblies during international transit. A 12-month warranty from the shipment date covers manufacturing defects and functional failures under normal operating conditions.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. Export documentation — including commercial invoice, packing list, and HS code classification — is prepared for each shipment to facilitate smooth customs clearance. For time-critical requirements, same-day dispatch is available for orders confirmed before 14:00 CST.
