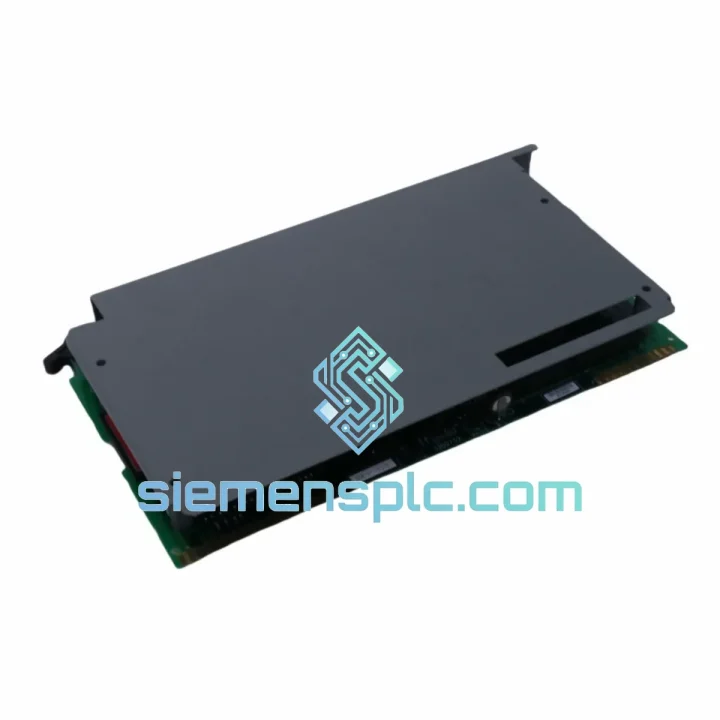

ProSoft 3100-MDA4 Gas Analyzer Interface Module

ProSoft 3100-MDA4 — Stop the Bleed: Get Your Gas Monitoring Loop Back Online Today

Your CM4 gas analyzer just went dark. The SLC 500 rack is throwing a module fault. Safety interlocks are in bypass. Every minute your 3100-MDA4 sits failed is a minute your plant is flying blind on toxic or combustible gas detection — and that’s a minute your HSE manager, your insurance carrier, and your operations director are all watching. We stock the ProSoft 3100-MDA4 specifically because this module fails in the field and lead times from distribution can stretch 8–14 weeks. Ours ships from Xiamen within 24 hours of order confirmation.

The 3100-MDA4 is not a generic serial gateway. It carries a hard-coded MDA Scientific CM4 protocol driver embedded in firmware — there is no substitute, no workaround, no software patch that replicates what this module does inside the System 16 backplane. If your CM4 analyzer data has stopped reaching your PLC data table, this is the part you need. Full stop.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 3100-MDA4:

• SLC 500 processor shows Module Fault (error code 0001h or 0002h) on the slot occupied by the 3100-MDA4 — this is almost always a hardware failure, not a configuration issue.
• CM4 analyzer data freezes at last-known-good values in the PLC data table (N-file or integer file). The module has lost serial communication with the analyzer but the PLC hasn’t faulted the slot yet — check the module’s RX LED. If it’s not blinking, the serial link is dead.
• Intermittent data dropouts correlating with temperature peaks — classic sign of a failing onboard oscillator or degraded capacitors on the module’s serial driver circuit. Replacement is the only fix.
• PCB software shows the module as “Not Responding” during a live connection attempt — firmware corruption or hardware failure. Re-flashing firmware is possible but rarely recovers a field-failed unit.

Replacement procedure — what to check before you power up the new module:

• Slot addressing: System 16 modules use backplane slot position for I/O addressing. Confirm the replacement module goes into the exact same slot number as the failed unit. Swapping slots without updating the processor program will cause immediate I/O faults.
• Firmware revision matching: If your existing PCB configuration file was built against a specific firmware revision of the 3100-MDA4, verify the replacement unit’s firmware matches. ProSoft firmware files are available on their support portal. Mismatched firmware can cause subtle data mapping errors that won’t show as hard faults.
• DIP switch / jumper settings: The 3100-MDA4 has onboard configuration jumpers for RS-232 vs RS-485 selection and termination resistor enable/disable. Before removing the failed module, photograph or document the jumper positions. The replacement ships in default RS-232 / termination-off configuration — if your CM4 is wired RS-485 with termination, you must set the jumpers before installation.
• PCB configuration file: Have your .PCB project file ready. After physical swap, you will need to re-download the configuration to the new module via the serial port before the PLC will accept valid data. If the original .PCB file is lost, you will need to rebuild it from the CM4 analyzer’s communication parameters (baud rate, parity, poll rate, data point mapping).
• Cold-start sequence: Power down the SLC 500 rack completely before removing the failed module. Hot-swapping System 16 modules is not supported and risks backplane damage.

Reliability in Harsh Conditions

Gas analyzer interface applications are not clean environments. The 3100-MDA4 is deployed in oil refinery control rooms where ambient temperatures swing 40°C between summer and winter, in chemical plant marshalling cabinets where humidity condenses on cold mornings, and in mining control enclosures where vibration from blasting and heavy equipment is a daily reality. ProSoft engineered the System 16 platform to survive exactly these conditions.

The module’s conformal-coated PCB provides a barrier against moisture ingress and corrosive atmospheric contaminants — a non-negotiable requirement in H₂S-rich environments where bare PCB traces corrode within months. The industrial-grade serial driver ICs are rated for extended temperature operation, maintaining signal integrity on RS-485 runs up to 1,200 meters even when cable impedance shifts with temperature. Onboard TVS diodes protect the serial interface against the voltage transients that are endemic to long cable runs in electrically noisy industrial plants.

Vibration tolerance is achieved through through-hole component construction on critical signal paths — surface-mount-only designs fail faster under sustained mechanical vibration because solder joint fatigue accumulates at SMD pads. The backplane connector is a high-cycle-rated design that maintains reliable contact even after repeated module insertions during maintenance cycles. In short: this module was built to be in a rack, in a plant, running continuously for years — not sitting in a lab.

Global Express Logistics

Our inventory is held at our Xiamen facility, positioned specifically for rapid international dispatch. Xiamen is a major export hub with direct DHL Express and FedEx International Priority services to every major industrial market globally. Here is what the fulfillment timeline looks like from the moment you confirm your order:

• Order confirmation to dispatch: Same business day for orders confirmed before 14:00 CST. Next business day for orders confirmed after 14:00 CST.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared in-house. For customers requiring a certificate of conformance or material traceability documentation, this is prepared concurrently — no additional lead time.
• Customs classification: HS code pre-filed for electronic industrial control modules. We have established export records for this commodity class — no delays from customs classification queries.
• Transit times (DHL Express / FedEx IP): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 2–4 days | North America 3–5 days | South America 4–6 days | Africa 4–7 days.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement contact.
• ESD packaging: Module shipped in anti-static bag inside rigid foam-lined carton. Survives the handling abuse of international express freight without damage.

If your plant is down and you need the fastest possible delivery, contact us directly on WhatsApp before placing the order — we can confirm stock, prepare documentation, and have the shipment staged for same-day collection by the courier.
