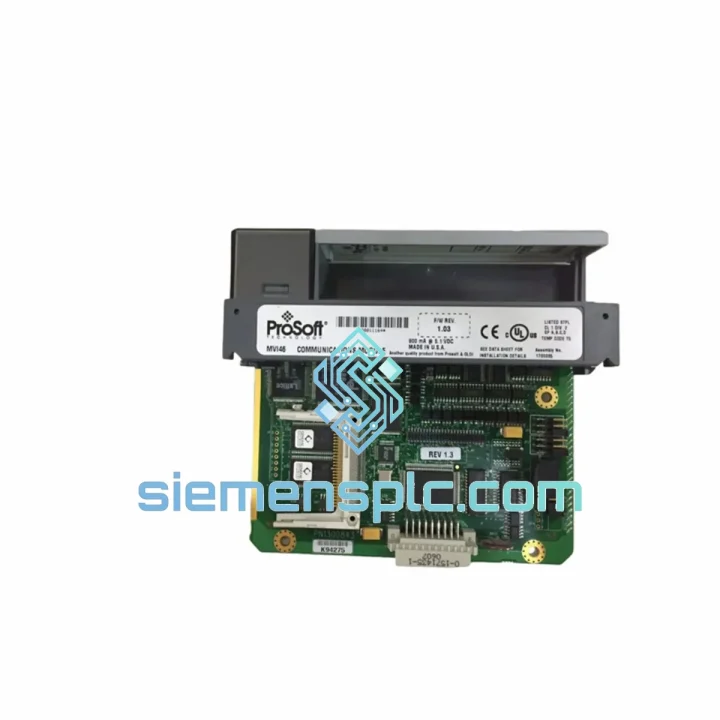

ProSoft MVI46-MCM Communication Module – MVI46 Series

ProSoft MVI46-MCM Dual-Port Modbus Master/Slave Module: Backplane-Coupled Serial Protocol Bridge for SLC 500 Control Architecture

The MVI46-MCM occupies a single slot in any Allen-Bradley SLC 500 I/O chassis and presents itself to the SLC processor as a standard 1746 I/O module while simultaneously managing two fully independent serial communication ports. Each port operates as a configurable Modbus RTU or ASCII master or slave, enabling the SLC 500 to exchange process data with field instruments, variable-frequency drives, energy meters, and third-party controllers without consuming processor scan-time resources on serial polling loops. The module’s onboard microprocessor handles all Modbus transaction sequencing, timeout management, and exception-code processing autonomously, returning structured data blocks to the SLC backplane at each ladder scan boundary.

In a typical control loop, the MVI46-MCM maps up to 4,000 16-bit holding registers into the SLC 500’s M1/M0 file space. The SLC processor reads and writes these registers through standard MSG instructions or through the module’s pass-through ladder logic interface, maintaining deterministic data exchange at scan rates that are decoupled from the serial baud rate. This architectural separation is significant: a 9,600 bps Modbus RTU poll to a remote flow transmitter does not introduce latency into the SLC’s primary control loop, because the MVI46-MCM buffers the result and presents it synchronously at the next backplane transfer cycle.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MVI46-MCM is built around a dedicated embedded microcontroller that runs the Modbus protocol stack entirely in firmware, independent of the SLC 500 processor’s instruction cycle. This separation of concerns is the module’s primary architectural advantage. The SLC processor is never stalled waiting for a serial acknowledgment; instead, the MVI46-MCM’s internal dual-port RAM acts as a shared memory interface, with the module writing fresh data into one half of the buffer while the SLC reads from the other half under backplane arbitration.

Each serial port has its own UART hardware with a 16-byte FIFO buffer, which prevents character overrun at baud rates up to 115,200 bps even when the host processor is momentarily occupied with backplane transfers. The RS-485 driver circuitry includes automatic transmit-enable control, eliminating the need for external RTS/CTS handshaking hardware on multi-drop bus topologies. Termination resistors are software-selectable, reducing field wiring complexity on long RS-485 cable runs where impedance matching is critical to signal integrity.

From an EMC standpoint, the module’s PCB layout routes high-frequency serial signal traces away from the backplane connector edge, and the chassis ground connection through the SLC 500 card guide provides a low-impedance return path for common-mode noise currents. The module meets EN 55011 Class A radiated and conducted emission limits, which is the relevant standard for industrial control equipment installed in fixed locations. Immunity testing to IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT/burst), and IEC 61000-4-5 (surge) ensures the module maintains data integrity in environments with frequent switching transients from motor starters and solenoid valves sharing the same panel.

The onboard watchdog timer monitors the firmware execution loop. If the microcontroller fails to service the watchdog within the configured timeout window, the module asserts a hardware fault signal on the backplane, which the SLC processor can detect via the module’s status word and use to trigger a safe-state output routine. This fail-safe mechanism is essential in process control applications where a silent communication failure is more dangerous than an explicit fault alarm.

System Integration Benefits

• Scan-time isolation: Serial polling cycles are fully decoupled from the SLC 500 ladder scan, so adding 20 Modbus slave devices does not increase the processor’s RPI or extend the scan time by a measurable amount.
• Dual simultaneous roles: Port 1 can operate as a Modbus master polling field instruments while Port 2 simultaneously operates as a Modbus slave responding to a SCADA host — both functions execute concurrently without software arbitration overhead.
• Physical layer flexibility: RS-232 for point-to-point connections up to 15 m, RS-422 for full-duplex multi-drop up to 1,200 m, and RS-485 for half-duplex multi-drop up to 1,200 m — all selectable in firmware without hardware modification.
• Diagnostic transparency: The module exposes a 40-word status data block to the SLC M1 file, including per-port frame counters, CRC error counts, timeout counts, and last exception code received. This data is available to the ladder program for real-time fault annunciation and historian logging.
• Configuration without downtime: ProSoft Configuration Builder (PCB) connects to the module via the SLC programming port passthrough, allowing parameter changes — baud rate, node address, poll list — to be downloaded while the SLC processor remains in Run mode, subject to application-specific safety review.
• Large register map: 4,000 holding registers provide sufficient headroom to aggregate data from dozens of field devices into a single coherent data table, simplifying the SCADA tag database and reducing the number of MSG instructions required in the ladder program.
• Deterministic backplane transfer: Data exchange between the MVI46-MCM and the SLC processor occurs at every ladder scan boundary using the standard 1746 backplane protocol, giving the control program a consistent, predictable data update rate regardless of serial network load.
• Broad SLC 500 compatibility: The module is compatible with SLC 5/01, 5/02, 5/03, 5/04, and 5/05 processors in any 1746 chassis (1746-A4, A7, A10, A13), and works alongside standard 1746 digital and analog I/O modules without slot restrictions.
• Reduced panel wiring: Consolidating two serial communication channels into one backplane slot eliminates the need for external serial converters, DIN-rail mounted RS-485 repeaters, and their associated 24 VDC power wiring, reducing panel assembly time and potential failure points.
• Long-term parts availability: The MVI46 platform has been in production for over two decades and remains actively supported by ProSoft Technology, with firmware updates and replacement units available through the global distribution network.

Quality Assurance & Global Logistics

Every MVI46-MCM unit supplied by siemensplc.com is sourced through verified procurement channels with full traceability to ProSoft Technology’s authorized distribution network. Prior to dispatch, each module undergoes a powered bench verification: the unit is installed in a 1746 chassis, connected to a test SLC 5/03 processor, and both serial ports are exercised with live Modbus RTU transactions to confirm correct master polling, slave response, and backplane data transfer. Units that do not pass this functional check are quarantined and returned to the supply chain — they are not sold.

Physical inspection covers label authenticity, firmware revision marking, serial number format, PCB revision visible through the ventilation slots, and connector pin condition. These checks are cross-referenced against ProSoft Technology’s published hardware revision history to identify any anomalies that may indicate non-genuine product.

Logistics operations are based in Xiamen, China, a major export hub with direct access to international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. In-stock units are typically dispatched within 24 hours of payment confirmation. Standard international transit times are 3–5 business days to most destinations in Southeast Asia, the Middle East, and Europe; 5–7 business days to North and South America. All shipments include commercial invoice, packing list, and certificate of origin documentation prepared in compliance with the destination country’s import requirements. Export classification is handled under HS code 8537.10, and no export license is required for this product to most destinations.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a replacement-first policy: a verified replacement unit is dispatched before the defective unit is returned, minimizing production downtime for the customer.
