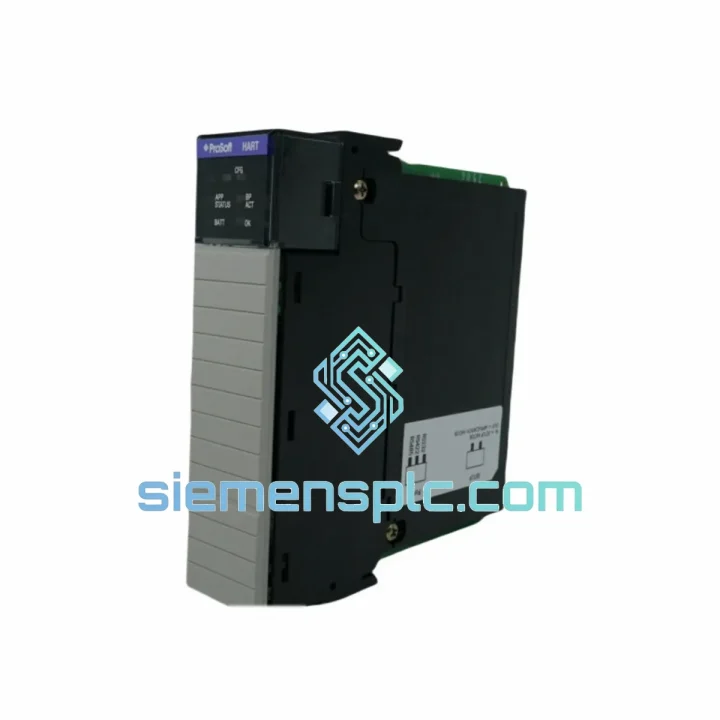

ProSoft MVI56-HART PLC Communication Module

MVI56-HART: Stop the Clock on Your Downtime — Ship Today from Xiamen

Your HART network just went silent. The ControlLogix backplane is throwing faults. Field instruments are blind. Every minute the line stays down, you’re bleeding money — and your maintenance window is already half gone. The ProSoft MVI56-HART is on the shelf right now. We don’t quote lead times in weeks. We quote dispatch in hours.

This is not a listing. This is a recovery plan.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field calls on HART modules teach you one thing: most failures are not the module. But when the module is the problem, you need to swap clean and fast. Here’s the sequence that works:

Step 1 — Confirm the fault is the module, not the loop. Before pulling the MVI56-HART, check the ControlLogix I/O tree. If the module shows a solid red status LED and the backplane fault code is 16#0107 (module not responding) or 16#0204 (connection timeout), the module itself is the suspect. If you’re seeing 16#0001 or 16#0002, check your HART loop wiring and loop resistance first — minimum 250 Ω is mandatory for HART signaling.

Step 2 — Export your PCB configuration before power-down. Open ProSoft Configuration Builder, connect to the module via the ControlLogix backplane, and export the .mvi56hart project file. This saves every channel configuration, polling list, and device address mapping. Do not skip this. A replacement module with a blank config will not poll a single device.

Step 3 — Note the slot number and chassis position. The MVI56-HART uses slot-based addressing in the ControlLogix I/O configuration. When you seat the replacement, it must go into the exact same slot. If you move it, you must update the I/O tree in Studio 5000 and re-download the program — a 20-minute job that becomes a 2-hour job if you forget.

Step 4 — Seat the replacement and restore config. Power down the chassis (or use hot-swap if your chassis supports it — verify with your 1756-A series chassis documentation). Seat the new MVI56-HART. Power up. Connect PCB, load your exported config, and download to the module. The module will begin polling within 30 seconds of a valid configuration download.

Step 5 — Verify HART device responses. In PCB’s diagnostic view, confirm each HART device is returning a valid response code (0x00 = no error). Common field issues post-swap: device address conflicts if a previous technician manually set HART addresses on field instruments, and loop current out of range if a transmitter was damaged during the fault event. Use a HART communicator on the loop to verify device addresses match your polling list.

Common Fault Codes Reference:

• 16#0107 — Module not responding on backplane. Replace module.
• 16#0204 — Connection request timeout. Check slot assignment and chassis power.
• HART Response 0x40 — Command not supported by field device. Verify HART revision compatibility.
• HART Response 0x20 — Device busy. Reduce polling rate in PCB configuration.
• No PV data in tags — Polling list empty or device address mismatch. Re-verify PCB config against physical device addresses.

Reliability in Harsh Conditions

Process plants don’t give modules a gentle life. The MVI56-HART is built for the environment you actually work in, not a climate-controlled lab.

Vibration is the silent killer of backplane modules. Compressor skids, pump stations, and milling operations generate continuous mechanical stress that loosens edge connectors and fractures solder joints over time. The MVI56-HART’s PCB design uses conformal coating and reinforced connector retention to maintain backplane contact integrity under sustained vibration loads consistent with IEC 60068-2-6 test profiles.

Thermal cycling is the second threat. A module that runs at 55°C ambient during peak summer production and drops to 5°C during a winter shutdown weekend is under constant mechanical stress from differential thermal expansion. The MVI56-HART’s 0°C to 60°C operating range and -40°C to 85°C storage range are not marketing numbers — they reflect the actual qualification testing envelope the hardware was designed to survive.

Humidity and condensation are the third factor, particularly in coastal plants, water treatment facilities, and any enclosure that breathes. The conformal coating on the MVI56-HART PCB provides a barrier against moisture ingress that bare boards cannot match. The 5–95% non-condensing humidity rating covers the majority of industrial enclosure environments when proper panel sealing is maintained.

Every unit we ship has been stored in controlled warehouse conditions in Xiamen. No field-pulled, no shelf-aged, no cosmetically cleaned refurbished stock. What you receive is what left the factory.

Global Express Logistics

Our warehouse is in Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This is not a drop-ship arrangement. Stock is physically on our shelves.

Standard dispatch timeline: Orders confirmed before 14:00 CST ship same business day. Orders confirmed after 14:00 CST ship next business day. No exceptions, no excuses.

DHL Express: Xiamen to most of Europe, Middle East, and Southeast Asia in 2–4 business days. Xiamen to North America in 3–5 business days. Real-time tracking from pickup to delivery.

FedEx International Priority: Available for destinations where FedEx has a service advantage. Typical transit 2–4 business days to major industrial hubs in the US, Germany, UAE, and Australia.

Export documentation: We prepare commercial invoice, packing list, and certificate of origin for every international shipment. HS Code 8537.10 applies to this module. For customers requiring formal import clearance support, we provide pre-shipment documentation packages on request.

Customs value declaration: Declared at actual transaction value. We do not under-declare. This protects you from customs holds that would defeat the entire purpose of express shipping.

If your plant is down and you need a tracking number before end of business today, contact us now. We have done this before. We know what urgent actually means.
