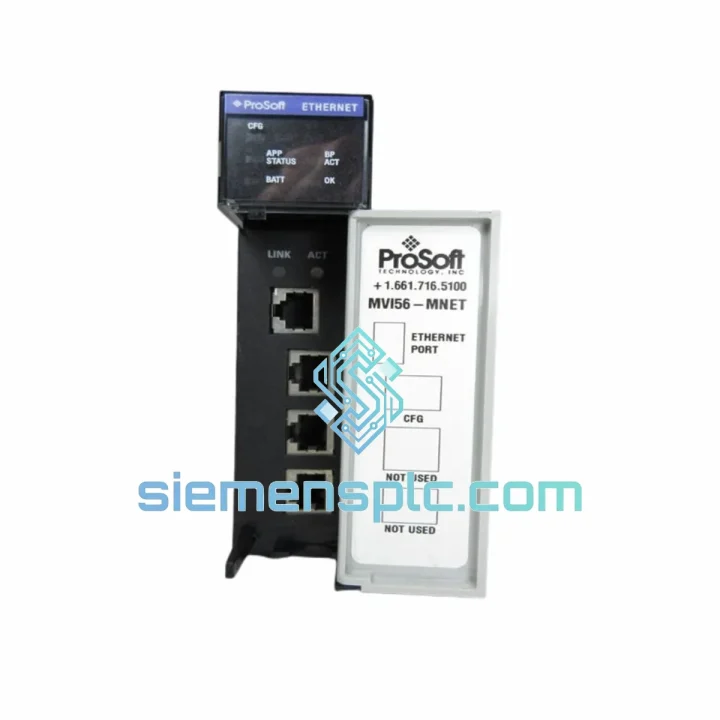

Prosoft MVI56-MNET — Modbus TCP/IP Dual-Role Interface for Allen-Bradley ControlLogix Backplane

The Prosoft MVI56-MNET is a single-slot ControlLogix backplane module that implements the Modbus TCP/IP application protocol over standard 10/100BASE-T Ethernet. Unlike gateway appliances mounted on a DIN rail, the MVI56-MNET occupies a 1756-series chassis slot and communicates with the ControlLogix CPU directly across the proprietary ControlBus backplane at the module’s rated backplane transfer rate — eliminating the latency and configuration overhead associated with external protocol converters. The module operates simultaneously as a Modbus TCP client (initiating read/write transactions to remote slave devices) and as a Modbus TCP server (responding to inbound requests from SCADA hosts, HMIs, or peer PLCs), a dual-role architecture that removes the need for two discrete communication modules in mixed-topology networks.

In process control loops where deterministic data refresh is mandatory — custody transfer metering, protection relay coordination, variable-frequency drive supervision — the MVI56-MNET’s onboard processor handles all Modbus TCP/IP framing, session management, and error recovery autonomously. The ControlLogix CPU is therefore free to execute application logic at its configured RPI without protocol-handling interrupts degrading scan-time consistency.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Data Exchange Architecture
The MVI56-MNET uses a shared-memory model across the ControlLogix backplane. The module maintains an internal 5,000-register database partitioned into client read data, client write data, and server data blocks. Data exchange with the ControlLogix CPU occurs via MSG instructions or the module’s automatic block-transfer mechanism, which moves data between the module’s internal database and the CPU’s tag database at a configurable update rate independent of the Ethernet polling cycle. This decoupling means that a slow or intermittently responding Modbus TCP slave does not stall the CPU’s I/O scan.

Dual-Stack Session Management
The module’s embedded TCP/IP stack manages up to 20 concurrent TCP sessions (10 client + 10 server) through a round-robin scheduler on its onboard processor. Each client session is independently configurable with its own target IP address, TCP port (default 502), polling interval, timeout threshold, and retry count. Session-level error counters are written back to the module’s status data block, making per-device fault isolation possible without external diagnostic tools.

EMC Design Considerations
The MVI56-MNET’s PCB layout follows Prosoft’s standard high-frequency isolation practice: the Ethernet PHY and transformer are physically separated from the backplane interface logic by a ground plane partition. The RJ-45 connector incorporates integrated magnetics with 1,500 V isolation between the Ethernet port and the module’s internal logic ground. This isolation barrier prevents common-mode noise from field-side Ethernet cabling from coupling into the ControlLogix backplane — a relevant concern in installations where Ethernet cables run parallel to motor power conductors in cable trays.

Watchdog and Fault Recovery
An independent hardware watchdog timer monitors the module’s onboard processor. If the processor fails to reset the watchdog within the configured interval, the module asserts a backplane fault bit and resets autonomously. The ControlLogix CPU detects the module fault through its standard I/O tree and can execute user-defined fault routines. Upon recovery, the module re-establishes all configured TCP sessions without requiring a chassis power cycle.

System Integration Benefits

• Eliminates External Protocol Converter Hardware: By residing on the ControlLogix backplane, the MVI56-MNET removes the need for a separate DIN-rail-mounted Modbus TCP gateway, reducing panel footprint, wiring complexity, and an additional failure point in the communication chain.
• Deterministic Scan-Time Isolation: Protocol processing executes on the module’s dedicated processor. The ControlLogix CPU’s task execution time is not affected by Ethernet retransmissions, TCP retries, or slave device response delays, preserving scan-time determinism for time-critical control loops.
• Granular Per-Device Diagnostics: Each of the 10 client sessions maintains independent error counters (timeout count, CRC error count, exception response count) accessible as standard ControlLogix tags. Engineers can identify which specific field device is generating communication faults without a network analyzer.
• Flexible Data Mapping: The 5,000-register internal database can be mapped to any ControlLogix tag structure using the PCB configuration tool. Integer, floating-point (32-bit IEEE 754 across two registers), and bit-level data types are all supported, accommodating the full range of Modbus register conventions used by different device manufacturers.
• Simultaneous Client and Server Operation: The module can poll downstream field devices as a client while simultaneously serving data to an upstream SCADA or historian as a server — within the same chassis slot and without additional licensing or hardware.
• Broad Third-Party Device Compatibility: Modbus TCP/IP is a published open standard. The MVI56-MNET has been validated against devices from Schneider Electric, ABB, Siemens, GE, and hundreds of meter and drive manufacturers, reducing integration risk in multi-vendor plant environments.
• Long-Term Platform Support: Prosoft maintains firmware and configuration software updates for the MVI56 series across successive ControlLogix firmware revisions. Compatibility has been validated through ControlLogix firmware v33, protecting the capital investment in existing chassis infrastructure.
• Simplified Commissioning via PCB: ProSoft Configuration Builder provides a structured configuration interface with built-in diagnostic port monitoring, live register data display, and communication statistics — reducing commissioning time compared to manual ladder-logic-based protocol implementations.
