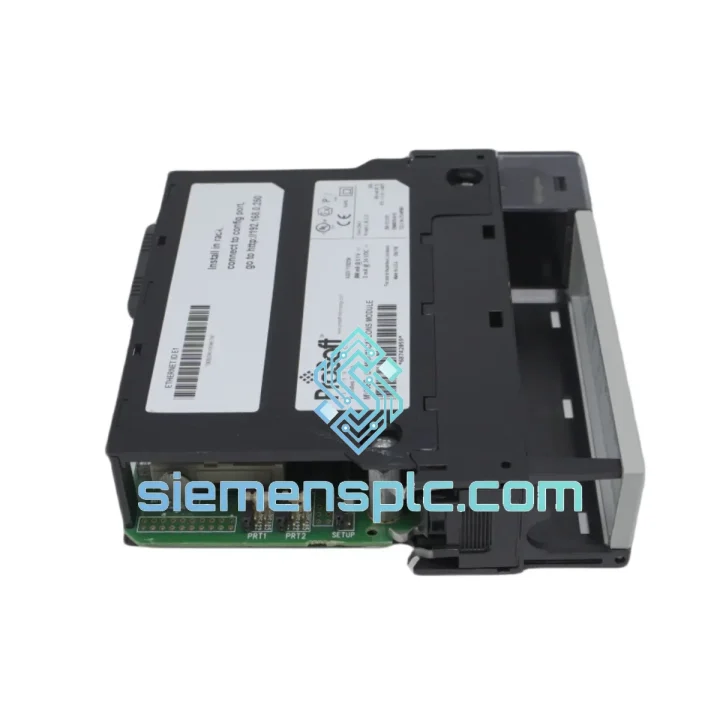

ProSoft MVI56E-MNETR Communication Module – MVI56E Series

ProSoft MVI56E-MNETR: Dual-Port Modbus TCP/IP Network Interface Module for Allen-Bradley ControlLogix Backplane

The MVI56E-MNETR occupies a single slot in any Allen-Bradley 1756 ControlLogix chassis and presents itself to the backplane as a standard I/O module, exchanging data through the ControlLogix Produced/Consumed tag mechanism at every RPI cycle. Its primary function is protocol translation: it bridges the deterministic ControlLogix backplane to one or more Modbus TCP/IP networks, operating simultaneously as a Modbus TCP/IP Master on one port and a Modbus TCP/IP Slave on the other — without requiring the CPU to manage socket-level communication. This architectural separation keeps ladder logic clean and isolates network fault conditions from the controller scan cycle.

The module’s internal processor runs a dedicated firmware stack that handles all TCP session management, Modbus framing, exception-code processing, and retry logic autonomously. Data is staged in a 5,000-register internal database (2,500 input words + 2,500 output words mapped to the ControlLogix tag space). The backplane interface operates at the full 1756 backplane bandwidth, ensuring that register updates are not the bottleneck in high-throughput SCADA architectures. Non-volatile flash memory retains the full configuration across power cycles, eliminating dependency on battery-backed RAM for parameter storage.

The Enhanced (E) designation over the legacy MVI56-MNETR introduces a second RJ45 Ethernet port, enabling physical network redundancy or simultaneous connection to two independent Modbus TCP/IP subnets. Each port supports up to 10 simultaneous TCP connections, giving the module a total capacity of 20 concurrent sessions — sufficient for mid-scale SCADA polling architectures where multiple HMI clients and data historians query the same field device data concurrently.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MVI56E-MNETR is built around a 32-bit embedded processor running a real-time operating system (RTOS) that schedules Modbus polling tasks with deterministic timing. The firmware separates the backplane I/O task from the Ethernet communication task at the OS scheduler level, meaning a TCP retransmission storm on the network side does not introduce jitter into the backplane data exchange cycle — a critical design requirement in process control environments where the ControlLogix CPU relies on consistent RPI timing for PID loop execution.

EMC Design: The module’s PCB layout employs ground-plane isolation between the backplane connector circuitry and the Ethernet PHY section. Transformer-coupled RJ45 magnetics provide 1,500 V isolation between the Ethernet cable and the module’s internal logic, attenuating common-mode noise injected from long cable runs in electrically noisy industrial environments. The chassis ground connection through the backplane further shunts high-frequency interference to the panel earth, keeping radiated emissions within EN 61000-6-4 Class A limits.

Dual-Port Redundancy Logic: The two Ethernet ports operate on independent MAC/PHY circuits. In a redundant topology, the firmware implements a primary/secondary port arbitration algorithm: the primary port carries active polling traffic, while the secondary port maintains a warm standby TCP session to each configured slave. On detection of a link-down event or TCP timeout on the primary port (configurable threshold: 1–65,535 ms), the firmware promotes the secondary port to active status within one polling cycle, with no CPU ladder logic intervention required. This failover mechanism is transparent to the ControlLogix tag data — the register values continue to update without a gap visible to the application program.

Modbus Master Polling Engine: The master polling engine supports up to 100 command blocks, each independently configurable for function code (FC01–FC06, FC15, FC16, FC23), slave address (1–255), register address, register count, and poll interval. Commands are executed in a round-robin sequence with per-command error counters accessible via the module’s status data block in the ControlLogix tag database. This granular error visibility allows maintenance engineers to isolate a failing field device without interrupting polling of healthy devices on the same network segment.

System Integration Benefits

• Zero-impact backplane integration: The module uses the standard ControlLogix Produced/Consumed tag mechanism, requiring no custom MSG instructions in the CPU program for routine data exchange — reducing ladder logic complexity and scan-time overhead.
• Simultaneous Master/Slave operation: A single module can poll downstream Modbus TCP/IP field devices while simultaneously serving register data to upstream SCADA or DCS systems, eliminating the need for a second communication module in mixed-topology architectures.
• Deterministic RPI-aligned data updates: The backplane data exchange is synchronized to the ControlLogix RPI, ensuring that the CPU always reads a coherent, atomically updated snapshot of the Modbus register table — preventing torn reads across multi-word process values.
• Granular per-command diagnostics: Each of the 100 configurable command blocks exposes individual error counters, last-error codes, and response-time statistics in the ControlLogix tag space, enabling condition-based maintenance triggers without external diagnostic hardware.
• Physical network redundancy without CPU logic: The dual-port failover is handled entirely in module firmware, keeping the ControlLogix CPU program free of network health management code and reducing the risk of application-layer bugs affecting communication resilience.
• Non-volatile configuration persistence: All polling parameters, IP addresses, and command tables are stored in on-board flash memory. A cold-start after a power outage restores full communication capability within the module’s boot time (~10 seconds), without requiring a download from the CPU or a connected PC.
• Backward compatibility with MVI56-MNETR: The MVI56E-MNETR is a drop-in hardware replacement for the legacy MVI56-MNETR. Existing PCB configuration files and ControlLogix AOP instances are forward-compatible, reducing migration engineering effort in retrofit projects.
• Hazardous-area suitability: Class I Division 2 / ATEX Zone 2 certification allows deployment in panels located in areas where flammable gases or vapors may be present under abnormal conditions — common in oil & gas upstream and midstream facilities.

Quality Assurance & Global Logistics

Every MVI56E-MNETR unit offered through siemensplc.com is sourced as genuine ProSoft Technology product. Units are inspected against ProSoft’s published hardware revision documentation prior to listing. Label integrity, firmware revision markings, and housing condition are verified against reference specifications. A 12-month warranty from the date of shipment covers manufacturing defects and functional failures under normal operating conditions.

Our warehouse and dispatch operations are based in Xiamen, China — a major export hub with direct access to international express freight networks. Standard in-stock orders are processed and handed to the carrier within 1–3 business days. Available shipping services include DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–7 business days to North America, Europe, and Southeast Asia. Full export documentation — commercial invoice, packing list, and certificate of origin — is provided with every shipment. For time-critical requirements, same-day dispatch is available on confirmed stock; contact us before placing the order to arrange priority handling.

Bulk and project-quantity inquiries are handled by our technical sales team, who can provide volume pricing, lead-time commitments, and consolidated shipping arrangements for multi-line BOM orders.
