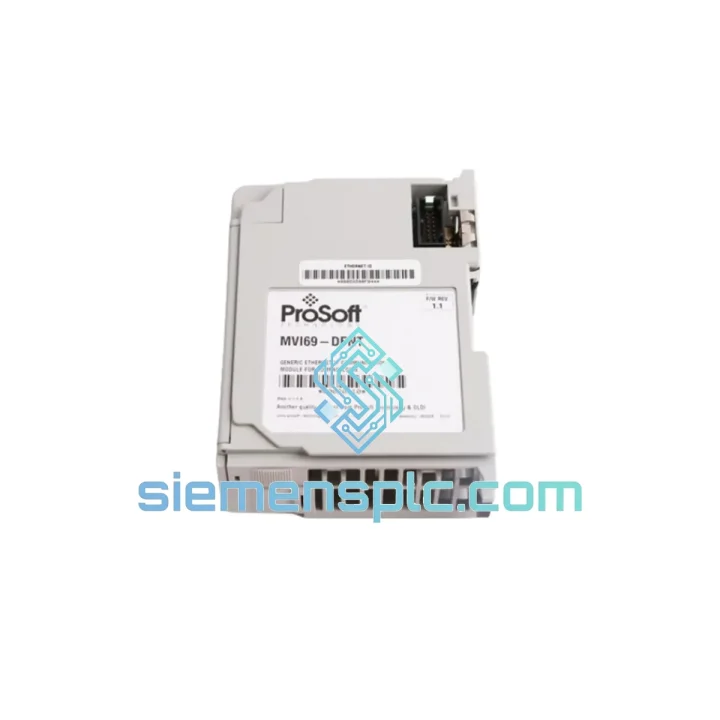

ProSoft MVI69-DFNT PLC Communication Module – MVI69 Series

ProSoft MVI69-DFNT: DeviceNet Master/Slave Gateway for CompactLogix 1769 Backplane

The MVI69-DFNT occupies a single slot in the CompactLogix 1769 local I/O rack and presents itself to the controller as a standard 1769 I/O module. Internally, it runs a dedicated DeviceNet protocol stack on an independent 32-bit processor, decoupled from the CompactLogix scan cycle. This architecture ensures that DeviceNet network polling — including explicit messaging handshakes and implicit I/O data transfers — proceeds at a fixed, configurable rate regardless of the PLC program execution time. The module maintains a dual-port shared memory region on the 1769 backplane bus, through which the CompactLogix controller reads and writes DeviceNet node data as contiguous input/output image blocks. This memory-mapped approach eliminates the latency variability inherent in message-based communication and delivers deterministic data availability to the ladder logic program.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MVI69-DFNT is built around a dual-processor architecture. The primary processor handles the DeviceNet CAN controller layer — managing MAC ID arbitration, bus-off recovery, and error-frame detection per the ODVA DeviceNet specification. A secondary processor manages the 1769 backplane interface logic, executing the local I/O bus protocol and maintaining the shared memory image. The two processors communicate via an internal high-speed parallel bus with hardware semaphore arbitration, preventing data corruption during simultaneous read/write cycles from both sides.

The DeviceNet physical layer driver incorporates a differential CAN transceiver with integrated bus-fault protection. The transceiver tolerates common-mode voltages from −7 V to +12 V on the CAN_H and CAN_L lines, providing inherent immunity to ground potential differences between nodes — a common source of communication errors in large industrial installations with distributed grounding. The module’s internal DC/DC converter isolates the 5 VDC backplane supply from the DeviceNet network power domain, achieving galvanic isolation of at least 500 V RMS between the PLC backplane and the field network. This isolation barrier prevents ground loops and protects the CompactLogix controller from transient overvoltages originating on the DeviceNet trunk cable.

EMC performance is addressed at the PCB layout level. The DeviceNet signal traces are routed as controlled-impedance differential pairs with matched lengths, minimizing common-mode emissions. Ferrite beads are placed at the DeviceNet connector entry point to suppress high-frequency conducted interference. The module’s metal housing provides a Faraday shield, and the backplane connector ground pins are bonded directly to the chassis ground plane, ensuring a low-impedance return path for any induced currents. The design meets EN 55011 Class A radiated emission limits and EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/Burst), and EN 61000-4-5 (Surge) immunity levels — the standard test suite for industrial control equipment operating in electrically noisy environments.

The module’s DeviceNet Master scanner maintains a configurable Expected Packet Rate (EPR) for each slave node. If a slave fails to respond within the EPR timeout window, the module sets a fault bit in the corresponding input data word and, depending on the configured fault action, either holds the last valid data or zeros the affected input block. This node-level fault isolation prevents a single failed device from corrupting the entire input image, allowing the PLC program to implement per-node fault handling logic without requiring a full network restart.

System Integration Benefits

• Zero External Hardware Overhead: The module draws all operating power from the 1769 backplane at 800 mA / 5 VDC. No external 24 VDC module supply, no DIN-rail gateway enclosure, and no additional wiring terminals are required beyond the DeviceNet trunk connection — directly reducing panel BOM cost and assembly time.
• Simultaneous Master and Slave Operation: A single MVI69-DFNT can poll up to 63 DeviceNet slave nodes while simultaneously responding as a slave to an upstream DeviceNet scanner. This eliminates the need for a second gateway module in hierarchical network topologies where the CompactLogix must participate in both a local device network and a supervisory network.
• Deterministic Backplane Data Refresh: The module’s independent DeviceNet processor updates the shared memory image at a user-configurable rate, decoupled from the PLC scan time. Engineers can set the DeviceNet poll rate to match the fastest device EPR on the network, ensuring the PLC always reads current data without being constrained by ladder logic execution time.
• Granular Node-Level Diagnostics: Each of the 63 possible node slots has a dedicated status word in the input data block. Bit-level flags indicate: node online/offline, communication timeout, explicit message error, and identity mismatch. This diagnostic transparency allows maintenance personnel to isolate a faulty field device from the HMI or SCADA system without requiring a laptop connected to the DeviceNet network.
• Studio 5000 AOI Integration: ProSoft supplies Add-On Instructions that map the module’s input/output data blocks to named tags within the Studio 5000 controller tag database. Engineers work with descriptive tag names (e.g., DN_Drive3_SpeedFeedback) rather than raw integer offsets, reducing programming errors and accelerating commissioning.
• Explicit Messaging for Device Configuration: Beyond cyclic I/O polling, the module supports DeviceNet explicit messaging, allowing the PLC program to read and write device attributes (e.g., VFD acceleration ramp, sensor sensitivity) at runtime without interrupting the implicit I/O data stream. This capability supports adaptive control strategies and remote device parameterization from the SCADA layer.
• Baud Rate Auto-Detection: The module can be configured to auto-detect the network baud rate at startup, eliminating a common commissioning error when replacing a module in an existing installation where the baud rate setting may not be documented.
• Wide Thermal Operating Range: Rated for 0 °C to +60 °C continuous operation, the module is suitable for installation in standard industrial control panels without forced-air cooling in most ambient conditions. The −40 °C storage rating ensures the module survives cold-chain shipping and warehouse storage in northern climates without risk of component damage.

Quality Assurance & Global Logistics

Every MVI69-DFNT unit supplied by siemensplc.com is sourced through verified industrial automation supply channels and carries original ProSoft Technology manufacturer labeling, holographic authenticity markings, and factory-sealed packaging. Upon receipt at our Xiamen, China facility, each unit undergoes a structured incoming inspection protocol: visual examination of the PCB and connector pins for mechanical damage, firmware version verification against the current ProSoft Technology release matrix, and a functional power-on test confirming backplane communication initialization and DeviceNet transceiver activity. Units that pass inspection are repackaged in anti-static bags with desiccant and humidity indicator cards before dispatch.

Shipments from Xiamen reach major industrial hubs on the following typical transit schedules: Hong Kong and Shenzhen same-day or next-day; Singapore, South Korea, and Japan 2–4 business days via air freight; Europe (Frankfurt, Amsterdam, Rotterdam) 5–7 business days; North America (Los Angeles, Chicago, Houston) 5–8 business days. All shipments include a commercial invoice with HS code 8537.10 pre-declared for customs clearance efficiency. Expedited DHL Express and FedEx International Priority options are available for urgent plant-down situations. A 12-month warranty covers manufacturing defects; DOA units are replaced or credited within 5 business days of confirmed fault diagnosis.
