ProSoft PLX31-MBTCP-MBS Protocol Gateway – PLX31 Series

PLX31-MBTCP-MBS: Deterministic Modbus TCP/IP ↔ Modbus RTU/ASCII Serial Bridge for Industrial Control Networks

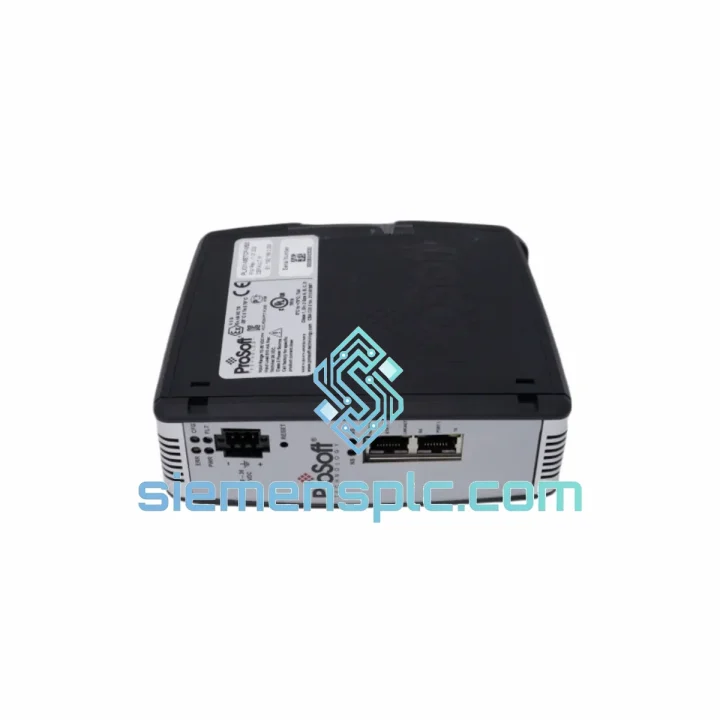

The ProSoft Technology PLX31-MBTCP-MBS is a standalone, DIN-rail-mounted protocol gateway engineered to provide transparent, bidirectional data exchange between Modbus TCP/IP Ethernet networks and Modbus RTU or ASCII serial field devices. In distributed control architectures where a SCADA host, DCS, or Ethernet-capable PLC must communicate with legacy serial instruments — flow meters, drives, protection relays, RTUs — the PLX31-MBTCP-MBS eliminates the need for custom protocol conversion code or intermediate middleware layers. The module handles all framing, timing, and address translation internally, presenting a clean register-mapped interface to both network domains simultaneously.

Unlike software-based OPC bridges or PC-hosted drivers, the PLX31-MBTCP-MBS operates as a dedicated embedded appliance. Its firmware executes a fixed-cycle scan loop with deterministic latency, making it suitable for applications where polling jitter or host OS scheduling delays are unacceptable. The module supports up to 10 concurrent Modbus TCP client connections on the Ethernet side while maintaining independent serial master or slave operation — both directions active at the same time, with no mode-switching or connection arbitration required from the user.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PLX31-MBTCP-MBS is built on a dedicated embedded processor running a real-time operating environment — not a general-purpose Linux or Windows CE stack. This architectural choice has direct consequences for determinism: the Modbus TCP listener, the serial port driver, and the internal register copy engine all execute within a fixed-priority task scheduler. TCP socket accept/close events do not interrupt the serial scan cycle, and serial framing errors do not stall the Ethernet receive buffer. The two protocol domains are decoupled at the firmware level, communicating only through the shared internal register database.

The serial port hardware supports RS-232, RS-485 (2-wire and 4-wire), and RS-422 on a single physical connector, with line termination and bias resistors configurable via the web interface. This eliminates the need for external line-matching components in most RS-485 multi-drop topologies. The RS-485 driver uses automatic transmit-enable switching with configurable turnaround delay (in microseconds), which is critical for half-duplex networks where slow slave devices require extended RTS hold times before the master releases the bus.

On the EMC side, the PLX31 platform uses isolated DC/DC power conversion between the input supply rail and the internal logic circuitry. The Ethernet magnetics provide 1500 V isolation between the RJ45 connector and the internal MAC layer. The serial port includes TVS diode protection on all signal lines, rated for ±15 kV ESD per IEC 61000-4-2 contact discharge. These measures allow the module to operate in panel environments with variable-frequency drives, contactors, and high-current switching loads on shared DIN rails — without requiring additional surge protection accessories in most installations.

The internal register database architecture uses a double-buffered copy scheme: the Modbus TCP server reads from one buffer while the serial master writes to the other, with atomic swap at the end of each serial scan cycle. This prevents torn reads — a condition where a TCP client reads a multi-register value (e.g., a 32-bit float spanning two Modbus registers) mid-update and receives a partially stale, partially new value. For process variables such as flow totals, pressure readings, or energy accumulators, this consistency guarantee is operationally significant.

System Integration Benefits

• Zero-software commissioning: The embedded web server is accessible immediately after IP assignment via DHCP or static configuration. No ProSoft software, no license keys, no PC-resident drivers — reducing commissioning time from hours to under 30 minutes for standard deployments.
• Simultaneous multi-role operation: The module operates as Modbus TCP Client and Server concurrently, and as Modbus RTU/ASCII Master and Slave concurrently. A single PLX31-MBTCP-MBS can therefore sit between a SCADA host (TCP Client polling the module as TCP Server) and a serial PLC (module as RTU Master polling field devices as RTU Slaves) — all four roles active in one unit.
• Deterministic serial scan cycle: The serial polling interval is user-configurable and executes independently of TCP connection state. Loss of Ethernet connectivity does not halt serial polling, preserving local data acquisition continuity during network outages.
• Flexible address mapping: Modbus register addresses on the TCP side can be mapped to different register addresses on the serial side. This allows integration of devices with non-standard or conflicting register maps without modifying the SCADA database or the field device firmware.
• Wide supply voltage tolerance: 10–30 VDC input accommodates both 12 VDC and 24 VDC panel power rails without a separate voltage regulator, simplifying BOM and reducing panel wiring complexity.
• Extended temperature rating: −40 °C to +70 °C operating range covers outdoor enclosures in temperate and subarctic climates, as well as high-ambient industrial environments such as foundries, cement plants, and compressor stations.
• Compact panel footprint: At 35 mm wide, the PLX31-MBTCP-MBS occupies the same DIN-rail width as a standard 2-pole circuit breaker. In high-density marshalling panels, this allows gateway functionality to be added without redesigning the panel layout.
• Diagnostic transparency: Four dedicated LED indicators provide real-time visual status for power, Ethernet link, serial activity, and module health. Combined with the web interface’s live register view, field technicians can verify data flow without a laptop or protocol analyzer.
• Brownfield compatibility: No changes to existing serial wiring or device firmware are required. The PLX31-MBTCP-MBS inserts into the serial segment as a new master or slave node, preserving the existing RS-485 multi-drop topology and all downstream device configurations.
• Scalable architecture: Multiple PLX31-MBTCP-MBS units can be deployed in parallel on the same Ethernet subnet, each handling a separate serial segment. This allows incremental migration of large serial networks to Ethernet without a single-point-of-failure gateway architecture.
