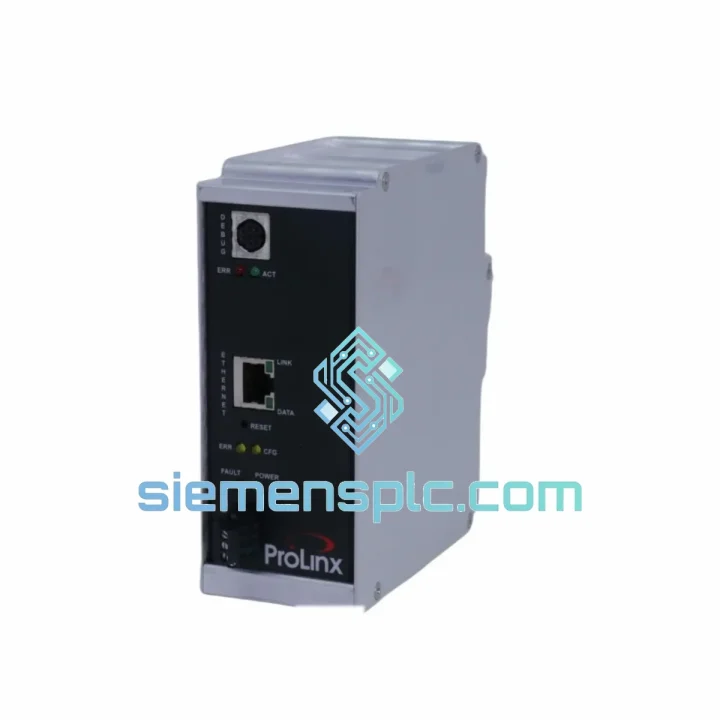

ProSoft Technology 5201-DFNT-EGD EtherNet/IP Gateway – MVI Series

ProSoft Technology 5201-DFNT-EGD: In-Chassis EtherNet/IP to GE Ethernet Global Data Gateway for Mixed-Protocol Industrial Networks

The 5201-DFNT-EGD occupies a single backplane slot within GE Series 90-30, 90-70, and RX3i chassis and performs deterministic, bidirectional protocol translation between EtherNet/IP (ODVA CIP-compliant) and GE Ethernet Global Data (EGD). Unlike external protocol converters that introduce an additional Ethernet hop and associated latency jitter, this module communicates with the host CPU directly over the GE backplane bus — a parallel, synchronous data path that operates independently of the plant Ethernet segment. The result is a protocol bridge with no external wiring, no additional power supply, and no intermediate device to maintain or troubleshoot.

In control architectures where a GE Series 90 or RX3i controller must exchange process data with an Allen-Bradley ControlLogix scanner, a Rockwell FactoryTalk SCADA server, or any EtherNet/IP Class 1 I/O adapter, the 5201-DFNT-EGD provides the translation layer without requiring a PLC replacement or a parallel communication processor. The module maps GE EGD exchange data — structured as producer/consumer UDP multicast frames — into EtherNet/IP implicit messaging (Class 1 cyclic) and explicit messaging (Class 3 UCMM), making GE controller data natively addressable from any EtherNet/IP originator on the network.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5201-DFNT-EGD is built around a dual-processor architecture. A dedicated communication processor handles all EtherNet/IP stack operations — CIP object library management, connection establishment, and cyclic data scheduling — while a second processor manages the GE backplane interface and EGD exchange timing. This separation ensures that network-side events (such as a dropped EtherNet/IP connection or a scanner timeout) do not propagate latency or interrupts into the GE CPU scan cycle. The backplane processor maintains its exchange schedule independently, preventing a network fault from destabilizing the PLC’s deterministic control loop.

The EGD protocol operates on UDP/IP with producer-consumer multicast semantics. Each EGD exchange is a fixed-length data block transmitted at a configurable period (typically 10 ms to 1000 ms). The 5201-DFNT-EGD’s backplane processor reads these exchange blocks from the GE CPU’s shared memory region at the configured exchange rate and presents them to the EtherNet/IP processor as a structured data table. On the EtherNet/IP side, this table is exposed as an assembly object (instance-level attributes), which EtherNet/IP scanners can poll via Class 1 implicit messaging at rates down to the network’s minimum RPI (Requested Packet Interval).

EMC design follows IEC 61000-4 series immunity requirements. The module’s PCB layout employs ground plane segmentation between the backplane interface circuitry and the Ethernet PHY section, reducing conducted emissions coupling between the two domains. Transient suppression diodes (TVS arrays) are placed at the RJ-45 port to clamp ESD events up to ±15 kV (air discharge, IEC 61000-4-2 Level 4). The backplane connector interface includes common-mode chokes to attenuate high-frequency noise injected from adjacent modules in the same chassis rack.

Diagnostic transparency is implemented through a dedicated internal event log accessible via the ProSoft Configuration Builder diagnostic port. The log records EGD exchange timeouts, EtherNet/IP connection drops, backplane communication errors, and module restart events with millisecond-resolution timestamps. This log is retrievable without interrupting live data exchange, enabling maintenance personnel to perform root-cause analysis on intermittent faults without taking the module offline.

System Integration Benefits

• Zero-hop backplane communication: Data moves from the GE CPU register table to the EtherNet/IP network without traversing an external Ethernet segment, eliminating the latency variability introduced by external converter devices.
• Preserved GE CPU scan determinism: The dual-processor design isolates network-side events from the backplane exchange cycle, so EtherNet/IP connection renegotiation or scanner polling jitter does not affect the GE CPU’s scan time.
• Bidirectional data flow with independent scheduling: Producer and consumer exchange periods are configured independently per exchange, allowing high-frequency process variables (e.g., 10 ms motor speed feedback) and low-frequency status data (e.g., 500 ms alarm registers) to coexist without bandwidth contention.
• Native EtherNet/IP Class 1 support: The module acts as both an EtherNet/IP adapter (for scanner-initiated connections) and an originator (for adapter-targeted connections), supporting complex multi-node topologies without additional hardware.
• Diagnostic log without service interruption: The internal event log is readable via PCB diagnostic interface while the module continues live data exchange, supporting condition-based maintenance without production downtime.
• Configurable data mapping: EGD exchange byte offsets map to EtherNet/IP assembly object attributes through a user-defined mapping table in PCB, allowing selective exposure of GE register data without transmitting the entire exchange block across the network.
• Fault state output control: EtherNet/IP connection loss triggers a configurable fault state on the GE CPU output registers — either hold-last-value or preset-to-zero — preventing undefined actuator states during network recovery.
• Firmware field-upgradeable: Module firmware is updatable via the Ethernet port using PCB, without physical removal from the chassis, reducing maintenance intervention time in installed systems.

Quality Assurance & Global Logistics

Every 5201-DFNT-EGD unit shipped from siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection protocol. Physical inspection covers connector pin integrity, PCB surface condition, label authenticity (holographic serial verification), and packaging seal integrity. Where test equipment is available, the Ethernet port is verified for link negotiation and the module is powered to confirm LED status indication prior to packaging.

Shipments originate from Xiamen, China — a major export hub with direct access to international freight carriers including DHL Express, FedEx International Priority, UPS Worldwide Expedited, and sea freight consolidators for bulk orders. Standard export documentation is prepared for every shipment: commercial invoice, packing list, certificate of origin, and — upon request — a certificate of conformance. For buyers requiring customs pre-clearance documentation or specific Incoterms (DDP, DAP, EXW, FOB), our logistics team coordinates directly with your freight forwarder or customs broker.

Transit times from Xiamen to major industrial hubs: Europe (3–5 business days, DHL/FedEx express); North America (4–6 business days); Southeast Asia (2–3 business days); Middle East (4–5 business days). Emergency same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments include tracking numbers issued within 24 hours of dispatch. A 12-month warranty against manufacturing defects applies to all units sold through siemensplc.com, with advance replacement available for qualified accounts.
