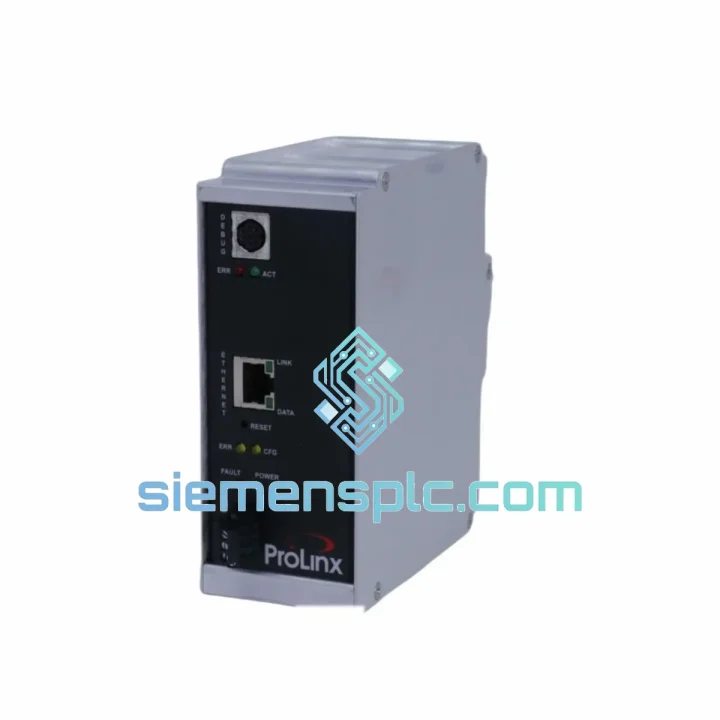

ProSoft Technology 5201-MNET-MCM Communication Gateway – MVI5000 Series

ProSoft Technology 5201-MNET-MCM: Deterministic Protocol Conversion Between Modbus TCP/IP and Serial Modbus Networks in CompactLogix Architectures

In process-critical environments where Ethernet-based supervisory systems must exchange data with serial-bus field devices, the protocol boundary between Modbus TCP/IP and Modbus RTU/ASCII represents a persistent engineering challenge. The ProSoft Technology 5201-MNET-MCM addresses this boundary at the hardware level — not through software emulation, but through a dedicated dual-port communication engine embedded directly in the CompactLogix backplane. This module occupies a single slot in the 1769 chassis and presents itself to the ControlLogix/CompactLogix processor as a standard I/O module, exchanging data via the backplane at the chassis scan rate rather than through an external Ethernet hop.

The MVI5000 platform was engineered specifically for the Allen-Bradley CompactLogix family. Unlike generic DIN-rail gateways that require external power, separate mounting, and additional wiring, the 5201-MNET-MCM draws power from the chassis backplane and communicates with the L-series processor through the 1769 local bus. This architecture eliminates one potential failure point — the external power supply — and reduces panel footprint by removing the need for a standalone gateway enclosure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 5201-MNET-MCM is built around a dual-processor architecture: one processor manages the 1769 backplane interface and data table synchronization with the CompactLogix L-series CPU, while a second co-processor handles all Ethernet and serial communication tasks independently. This separation ensures that a communication timeout or serial bus fault on the field side does not stall the backplane data exchange cycle — the processor continues to present the last-valid data table to the PLC while simultaneously logging the fault condition in a dedicated diagnostic register block.

Backplane Data Exchange Mechanism: The module maps its internal data table — up to 5,000 holding registers — into the CompactLogix I/O tree as a standard input/output assembly. The PLC ladder or structured text program reads and writes these registers using standard MSG or implicit I/O instructions. The backplane transfer rate is synchronized to the chassis RPI (Requested Packet Interval), which can be configured as low as 1 ms on CompactLogix platforms, providing near-deterministic data latency between the field device and the control program.

Serial Port Electrical Architecture: Each of the two serial ports supports RS-232, RS-422, and RS-485 physical layers, selectable via jumper or software configuration. In RS-485 half-duplex mode, the module implements automatic RTS/CTS turnaround timing, eliminating the need for external RS-485 repeaters in most multidrop topologies. The RS-485 driver circuitry includes fail-safe biasing resistors that hold the bus in a defined state when no driver is active, preventing spurious data reception during idle periods — a common source of CRC errors in unbiased RS-485 networks.

EMC Design: The module’s PCB layout isolates the serial port ground plane from the backplane ground plane through optocoupler barriers on each serial channel. This galvanic isolation (where implemented per port configuration) prevents ground loop currents — which can reach several amperes in large industrial panels — from coupling noise into the serial data lines. The Ethernet magnetics include common-mode chokes rated to suppress conducted interference per IEC 61000-4-6, consistent with the CE marking requirements for industrial environments.

Modbus TCP/IP Engine: The TCP/IP stack supports up to 10 simultaneous socket connections, allowing multiple SCADA clients to poll the module concurrently without connection queuing delays. The module can operate as a Modbus TCP/IP Client (initiating read/write requests to remote Modbus TCP/IP servers) and as a Modbus TCP/IP Server (responding to requests from SCADA or HMI systems) at the same time, using separate socket pools for each role. This dual-role capability is managed by the co-processor without CPU intervention, keeping the backplane data table consistent regardless of Ethernet traffic load.

System Integration Benefits

• Zero External Power Dependency: Backplane power eliminates the external 24 VDC supply and associated wiring, reducing BOM cost and one potential single point of failure in the panel.
• Deterministic Backplane Latency: Data exchange with the CompactLogix CPU occurs at the configured RPI — as low as 1 ms — providing a predictable, bounded latency that external Ethernet gateways cannot match.
• Simultaneous Multi-Role Operation: The module acts as Modbus TCP/IP Client, Modbus TCP/IP Server, Modbus RTU/ASCII Master, and Modbus RTU/ASCII Slave concurrently, supporting complex multi-tier network topologies from a single chassis slot.
• Transparent Diagnostic Data Blocks: Fault counters, connection status, CRC error counts, and timeout events are mapped into the PLC data table as standard tags, enabling ladder-based alarm logic without any external diagnostic tool.
• Independent Serial Port Configuration: Each serial port is independently configurable for protocol (RTU vs. ASCII), baud rate (300 to 115,200 bps), parity, stop bits, and physical layer (RS-232/422/485), allowing mixed-protocol field bus topologies from a single module.
• Scalable Data Table Architecture: The 5,000-register data table can be partitioned between read and write blocks in any ratio, accommodating both high-density analog I/O polling and sparse discrete status monitoring without wasting register space.
• Non-Intrusive Legacy Integration: Existing Modbus RTU field devices require no firmware changes or hardware modifications — the 5201-MNET-MCM presents itself as a standard Modbus Master or Slave to the serial bus, maintaining full backward compatibility with legacy device addressing.
• Reduced Panel Footprint: A single 1769 chassis slot replaces what would otherwise require a standalone gateway enclosure, DIN rail, terminal blocks, and external power supply — a measurable reduction in panel assembly time and material cost.
• Configuration Portability: ProSoft Configuration Builder project files are portable XML documents that can be version-controlled alongside PLC program files, supporting structured change management in ISO 9001-compliant facilities.
• Broad SCADA Compatibility: The Modbus TCP/IP Server interface is compatible with all major SCADA and HMI platforms — Wonderware InTouch, iFIX, Ignition, Citect, and WinCC — without requiring proprietary drivers or OPC server middleware.

Quality Assurance & Global Logistics

Every 5201-MNET-MCM unit supplied by siemensplc.com is sourced through verified supply channels and subjected to incoming inspection before dispatch. Physical inspection covers label authenticity, firmware version consistency, connector integrity, and packaging condition. Units are cross-referenced against ProSoft Technology’s published part number and revision documentation to confirm specification alignment.

All products carry a 12-month warranty from the date of shipment. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with full traceability documentation — lot number, inspection record, and shipping manifest — to support your incoming quality control and asset management processes.

Logistics operations are based in Xiamen, China, a major export hub with direct access to international freight carriers including DHL Express, FedEx International Priority, UPS Worldwide, and sea freight consolidators for bulk orders. Standard export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for every international shipment to facilitate customs clearance in the destination country. Expedited air freight options are available for critical shutdown and emergency replacement scenarios, with same-day dispatch for in-stock items confirmed before 14:00 CST.

For customers in North America, Europe, Southeast Asia, the Middle East, and Australia, we maintain experience with import compliance requirements and can advise on applicable HS codes, duty rates, and documentation formats for your jurisdiction.
