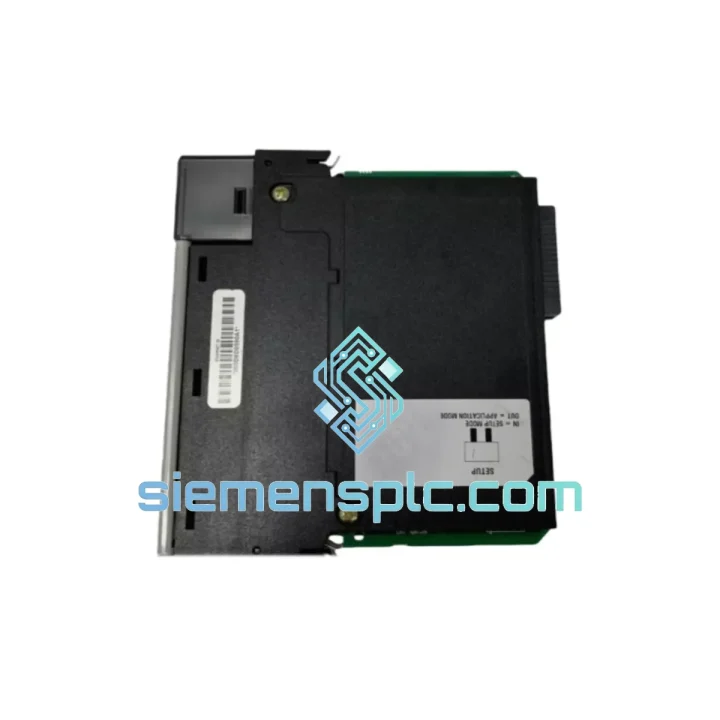

ProSoft Technology MVI56-101M Communication Module – MVI56 Series

ProSoft Technology MVI56-101M: Modbus Serial Gateway for Allen-Bradley ControlLogix Backplane

The MVI56-101M occupies a single slot in any 1756-series ControlLogix chassis and establishes a bidirectional Modbus serial bridge between the ControlLogix backplane and RS-232 or RS-485 field networks. Unlike software-only protocol converters, this module runs its own embedded processor, offloading all Modbus transaction management from the host CPU. The result is deterministic serial polling independent of the controller scan cycle — a critical requirement in process control loops where response latency directly affects PID stability.

In a typical deployment, the module operates as a Modbus master, issuing read/write commands to up to 247 slave addresses on a single RS-485 multi-drop segment. Simultaneously, it can respond as a Modbus slave to an upstream SCADA or DCS host, presenting a unified data image without requiring the ControlLogix CPU to arbitrate between both roles. This dual-mode architecture eliminates the need for an external protocol converter or a dedicated gateway PC in the control cabinet.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MVI56-101M is built around a dedicated embedded processor that runs the Modbus protocol stack independently of the ControlLogix L-series CPU. This separation of concerns is architecturally significant: the ControlLogix CPU is never burdened with serial timing management, character-level framing, or CRC computation. The embedded processor handles all inter-character gap detection (3.5 character times for RTU mode) and frame assembly in hardware-timed firmware loops, ensuring that baud-rate-sensitive Modbus RTU framing remains intact even when the ControlLogix CPU is under heavy ladder scan load.

The backplane data exchange mechanism uses a shared-memory model. The module maintains an internal data table — a contiguous block of 16-bit registers — that mirrors the Modbus register map. The ControlLogix CPU reads and writes this table via the 1756 backplane at each scan cycle using standard MSG instructions or the module’s Add-On Instruction (AOI). Because the backplane transfer and the serial polling cycle are asynchronous, the module implements a double-buffering scheme: one buffer is actively updated by the serial engine while the other is presented to the backplane, preventing torn reads of multi-register values such as 32-bit floating-point process variables.

From an EMC standpoint, the serial port driver circuitry incorporates transient voltage suppression (TVS) diodes on the RS-485 lines, providing protection against common-mode surges up to ±15 kV ESD (IEC 61000-4-2 contact discharge). The RS-485 line driver maintains a defined fail-safe bias when the bus is in an idle or open-circuit state, preventing false framing from noise-induced transitions — a frequent failure mode in long cable runs through electrically noisy industrial environments such as motor control centers or arc furnace facilities.

The module’s LED diagnostic array — PWR, APP, BP ACT, and SER — provides real-time visual feedback on backplane communication health, application firmware state, and serial port activity. These indicators allow field technicians to isolate faults to the backplane layer, the serial layer, or the application configuration layer without connecting a laptop, reducing mean time to repair (MTTR) in production environments.

System Integration Benefits

• CPU Scan Cycle Decoupling: Serial polling executes on the module’s own processor at a configurable poll rate, independent of the ControlLogix scan time. This prevents serial timeout errors from propagating as scan overruns in the host CPU.
• Deterministic Data Latency: With baud rates up to 115,200 bps and configurable inter-message delay, engineers can calculate worst-case data refresh latency for each slave device — a prerequisite for closed-loop control applications using Modbus field instruments.
• Simultaneous Master/Slave Operation: The module can poll field devices as a master while simultaneously responding to a SCADA host as a slave, eliminating the need for a separate protocol gateway and reducing panel footprint.
• Direct Tag Mapping via AOI: ProSoft’s published Add-On Instruction maps module data directly into ControlLogix controller tags, enabling structured data access in Studio 5000 without manual MSG instruction programming.
• RS-232 and RS-485 Flexibility: A single hardware port supports both RS-232 (point-to-point, up to 15 m) and RS-485 (multi-drop, up to 1,200 m) via software configuration, reducing spare-parts inventory requirements.
• Fault Isolation and Diagnostics: Per-slave error counters, timeout registers, and communication status bits are exposed in the module’s data table, allowing the ControlLogix program to implement automated fault logging and alarm annunciation without external diagnostic hardware.
• Broad Slave Address Range: Supports the full Modbus address space of 1–247 slave nodes on a single RS-485 segment, accommodating large field device networks without network segmentation.
• Configurable Retry and Timeout Logic: Per-command retry counts and response timeout values are independently configurable, allowing the application to balance network responsiveness against false-fault detection in high-noise environments.
• Long-Term Platform Stability: The MVI56 series has maintained backward compatibility across firmware revisions for over a decade, protecting the engineering investment in existing AOI libraries and PCB configuration files.
• Passive Backplane Power: Drawing only 800 mA at 5 VDC from the backplane, the module imposes a predictable, low power budget on the chassis power supply — relevant for fully populated 13-slot chassis where power budgeting is a design constraint.

Quality Assurance & Global Logistics

Every MVI56-101M unit supplied through siemensplc.com is sourced from verified industrial automation distribution channels. Each unit undergoes incoming inspection that includes label authentication against ProSoft Technology factory markings, firmware version verification, and serial number documentation. Units are packed in anti-static shielding bags with foam-lined cartons rated for international air freight handling.

Shipments originate from our warehouse in Xiamen, China. Xiamen’s port infrastructure supports DHL Express, FedEx International Priority, and UPS Worldwide Expedited services, with typical transit times of 3–7 business days to North America, Europe, Southeast Asia, and the Middle East. Full commercial invoice, packing list, and HS code documentation (HS 8537.10) are provided with every shipment to facilitate customs clearance. For project orders requiring consolidated freight or specific Incoterms (EXW, FOB, CIF), our logistics team can accommodate project-specific shipping arrangements.

A 12-month warranty covers manufacturing defects from the date of shipment. Warranty claims are processed with replacement unit dispatch upon receipt of the defective module. Certificate of conformance and inspection records are available on request for B2B procurement compliance and ISO 9001 audit documentation.
