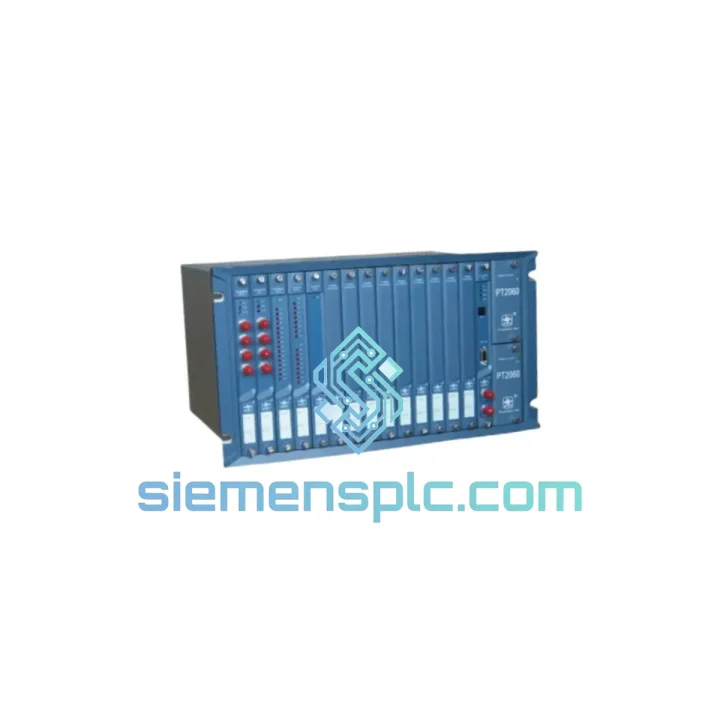

Provib Tech PT2060/43-A0 Proximity Module – PT2060 Series

PT2060/43-A0 Eddy-Current Proximity Signal Conditioning Module — Core Interface in Rotating Machinery Protection Loops

The Provib Tech PT2060/43-A0 is a dedicated signal conditioning module within the PT2060 series, purpose-built to interface eddy-current displacement probes with plant-level protection, control, and supervisory instrumentation systems. Its primary function is to receive the high-frequency oscillator output from a matched eddy-current probe driver, demodulate the carrier signal, and deliver a low-impedance DC voltage proportional to the air gap between the probe tip and the observed metallic target surface — typically a rotating shaft journal.

In a machinery protection architecture, this module occupies the critical signal path between the field-mounted probe assembly and the downstream monitor or DCS input card. Signal integrity at this stage directly determines the accuracy of radial vibration amplitude, shaft centerline position, and axial displacement measurements. The PT2060/43-A0 is engineered to maintain measurement linearity across the full operating gap range while rejecting common-mode electrical interference introduced by long cable runs in industrial environments.

Typical deployment scenarios include steam turbine shaft monitoring per API 670, centrifugal compressor rotor displacement measurement in petrochemical facilities, large motor bearing journal orbit analysis, and axial position protection on gas turbine thrust bearings. The module’s output is compatible with standard 4–20 mA transmitter loops and direct voltage inputs on vibration monitors, DCS analog input modules, and safety instrumented system (SIS) input cards.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Full electrical datasheets and calibration certificates available upon request. Contact [email protected].

Hardware Logical Analysis

The PT2060/43-A0 operates on the demodulation principle inherent to eddy-current measurement chains. The probe driver generates a stable high-frequency carrier — typically in the 1 MHz range — which is transmitted to the probe coil via a matched coaxial extension cable. As the conductive shaft surface approaches the probe tip, eddy currents are induced in the target material, loading the oscillator circuit and reducing the carrier amplitude in a predictable, near-linear relationship to gap distance.

The conditioning module’s internal demodulator extracts the amplitude envelope from this modulated carrier. A precision rectifier and low-pass filter stage converts the envelope to a smooth DC output, suppressing carrier-frequency ripple to levels below the noise floor of downstream analog input cards. The filter corner frequency is selected to pass the full vibration frequency spectrum of interest — typically DC to 10 kHz for shaft dynamic analysis — while attenuating high-frequency interference.

EMC Design: The module’s PCB layout employs ground-plane shielding between the high-frequency input stage and the DC output stage, preventing carrier-frequency radiation from coupling into the output wiring. The input connector is designed for direct termination of the shielded coaxial cable from the probe driver, maintaining shield continuity through the module chassis to the panel earth bus. This architecture achieves common-mode rejection ratios (CMRR) sufficient to operate in switchgear rooms and motor control centers where conducted and radiated interference levels are significant.

Thermal Stability: Precision resistor networks with low temperature coefficients (≤25 ppm/°C) are used in the gain-setting and offset-trim circuits, ensuring that the output scale factor — expressed in mV/mil or V/mm — remains stable across the full −20 °C to +70 °C operating range. This is critical in outdoor installations and turbine enclosures where ambient temperature swings of 50 °C or more are routine.

Output Drive Capability: The conditioned DC output is buffered by a low-output-impedance amplifier stage capable of driving standard 600 Ω monitor inputs and long cable runs to remote DCS marshalling cabinets without signal attenuation. The output is short-circuit protected, preventing module damage during commissioning wiring errors.

Backward Compatibility Logic: The PT2060/43-A0 maintains pin-for-pin and signal-level compatibility with earlier PT2060 series revisions, allowing direct substitution in existing panel layouts without modification to terminal wiring, probe chains, or monitor configuration parameters.

System Integration Benefits

• Direct API 670 Compliance Path: The module’s output characteristics align with the signal conditioning requirements defined in API 670 (5th Edition) for proximity probe systems, simplifying documentation for machinery protection system audits and insurance inspections.
• DCS and SIS Compatibility: The conditioned DC voltage output interfaces directly with standard ±10 V or 0–10 V analog input cards on major DCS platforms (Emerson DeltaV, Honeywell Experion, ABB 800xA, Siemens PCS 7) and SIS input modules without additional signal conversion hardware.
• Deterministic Response Latency: The analog signal path introduces no software-induced latency. The output tracks shaft displacement in real time, with group delay determined solely by the hardware filter — typically less than 1 ms at 1 kHz — ensuring that vibration monitor trip logic responds within the protection system’s required response time.
• Reduced Panel Footprint: The compact PT2060 form factor allows high-density installation in standard 19-inch rack enclosures or DIN rail panels, reducing cabinet space requirements compared to older discrete-component conditioning circuits.
• Simplified Spare Parts Management: A single module type covers both radial vibration and axial position measurement channels when configured appropriately, reducing the number of distinct spare part numbers that maintenance teams must stock.
• Diagnostic Transparency: The DC output voltage can be monitored continuously with a standard multimeter or DCS trend display, providing a direct, human-readable indication of shaft gap and vibration amplitude without specialized test equipment. This accelerates fault isolation during unplanned shutdowns.
• Long Cable Drive Capability: The buffered output supports cable runs exceeding 100 m to remote marshalling panels without signal degradation, enabling centralized monitoring architectures in large plant layouts.
• Hazardous Area Interface Readiness: When paired with appropriate certified Zener barriers or galvanic isolators, the PT2060/43-A0 can be integrated into intrinsically safe (Ex ia) measurement loops for Zone 1 / Zone 2 installations — verify applicable ATEX/IECEx certification documentation with the manufacturer prior to installation.

Quality Assurance & Global Logistics

Every PT2060/43-A0 unit dispatched from our Xiamen, China facility undergoes a structured incoming inspection protocol: part number and revision label verification, visual inspection for transit damage, and anti-static packaging integrity check. Units are stored in climate-controlled, ESD-protected warehousing to preserve electronic component integrity during storage periods.

Shipment documentation includes a commercial invoice, packing list, and certificate of origin. Test reports and certificates of conformance are available upon request for quality-critical procurement processes. Export classification and HS code documentation are prepared in accordance with Chinese customs regulations and destination country import requirements.

We ship globally via DHL Express, FedEx International Priority, and UPS Worldwide Expedited. Standard dispatch lead time for in-stock units is 1–3 business days from order confirmation. Tracking numbers are provided upon shipment. For time-critical plant shutdowns and emergency maintenance windows, expedited same-day dispatch can be arranged — contact us directly via WhatsApp for urgent requirements.

All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and premature component failure under normal operating conditions. Warranty claims are processed with replacement unit dispatch or full credit, subject to inspection of the returned module.
