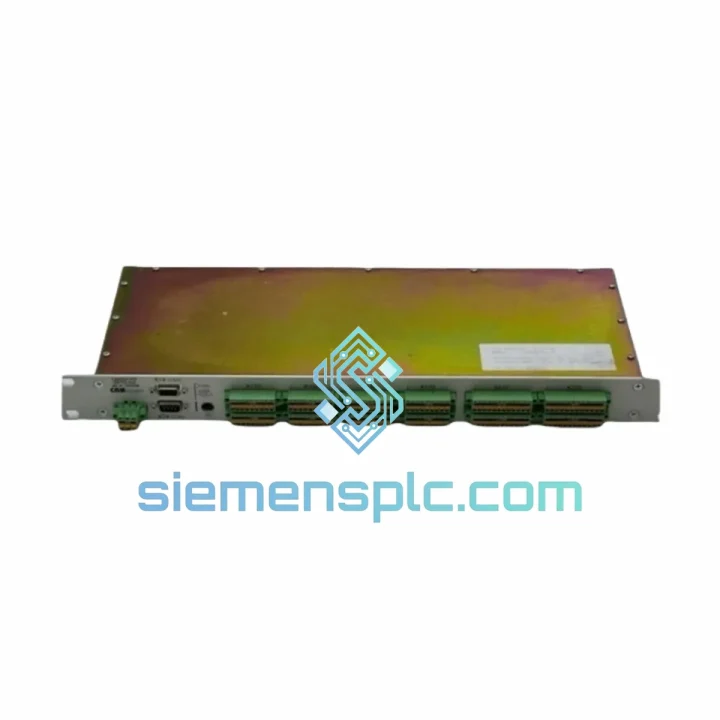

Rofin Sinar K.3784.06 Laser Control Unit

Rofin Sinar K.3784.06 DC-Series Laser Control Unit — Stop the Clock on Your Downtime

Every minute a laser cell sits dark, your production schedule bleeds money. A failed K.3784.06 control unit can ground an entire CNC laser cutting line or robotic welding cell in seconds. We stock this unit in Xiamen and ship same-day via DHL Express or FedEx International Priority — because waiting two weeks for an OEM order is not an option when your customer’s delivery window is tomorrow.

The Rofin Sinar K.3784.06 is the core control brain of the DC-Series CO₂ laser platform. It governs beam modulation, pulse timing, power ramping, and resonator interlock logic. When it fails, nothing downstream works — not the motion controller, not the nozzle, not the assist gas valve. Replacing it correctly the first time is the only acceptable outcome.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling K.3784.06 failures across automotive stamping plants, sheet-metal job shops, and aerospace sub-contractors, these are the fault patterns that point directly at this unit — and the steps that get the machine back online without a second trip.

Common Fault Signatures Indicating K.3784.06 Failure:

• Error 51 / Error 52 (Laser Ready Timeout) — The resonator powers up but the control unit never asserts the LASER READY signal. The CNC waits, times out, and faults. Nine times out of ten this is a dead output driver on the K.3784.06, not a resonator problem.
• Intermittent Power Drop During Cutting — Beam cuts out mid-path, leaving a dross-heavy kerf. The CNC log shows no axis fault. The culprit is usually a failing analog output stage on the control board causing erratic power commands to the RF exciter.
• No Beam on Pulse Command — Gate signal present at the CNC output, confirmed with a scope, but no beam fires. The K.3784.06 is not translating the gate command into an RF trigger. Replace the unit before chasing the resonator.
• Overcurrent Alarm with No Load Change — The resonator current feedback loop is misread by a degraded ADC on the control board, triggering false overcurrent trips. Cleaning the board or reseating connectors provides temporary relief; replacement is the permanent fix.

Step-by-Step Replacement Procedure:

1. Isolate and lock out — De-energize the laser cabinet. Engage the main isolator and apply a lockout tag. Discharge the HV capacitor bank per the Rofin Sinar service manual (minimum 5-minute bleed time after power-off).
2. Document connector positions — Photograph all harness connectors on the K.3784.06 before removal. The DC-Series uses keyed connectors, but orientation errors on the 24 VDC and signal headers will damage the replacement unit.
3. Check PCB revision label — The K.3784.06 has been produced in at least three PCB revisions (Rev. A, Rev. C, Rev. E). Confirm the replacement unit matches your installed revision, or verify cross-compatibility with Rofin Sinar service bulletin SB-DC-CTL-003 before fitting.
4. No DIP switch changes required — Unlike some Siemens or Beckhoff I/O modules, the K.3784.06 does not use DIP switches for address assignment. The unit auto-configures on the DC-Series bus at power-up. Do not attempt to set addresses manually.
5. Firmware matching — If your machine runs Rofin Sinar software version 4.x or later, confirm the replacement unit ships with firmware ≥ 4.02. Earlier firmware revisions are incompatible with the 4.x CNC interface and will cause a persistent COMM FAULT alarm. Contact us and we will verify firmware version before dispatch.
6. Power-up sequence — Restore 24 VDC control power first. Wait for the control unit status LED to cycle through its self-test (green blink sequence, approximately 8 seconds). Only then restore HV to the resonator. Skipping this sequence can latch a fault that requires a full cold restart to clear.
7. Beam alignment check — After replacement, run a low-power beam-on test (≤10% power) and verify beam position at the nozzle with burn paper before resuming production cuts. A failed control unit can sometimes shift the power calibration offset; recalibrate if cut quality deviates from baseline.
