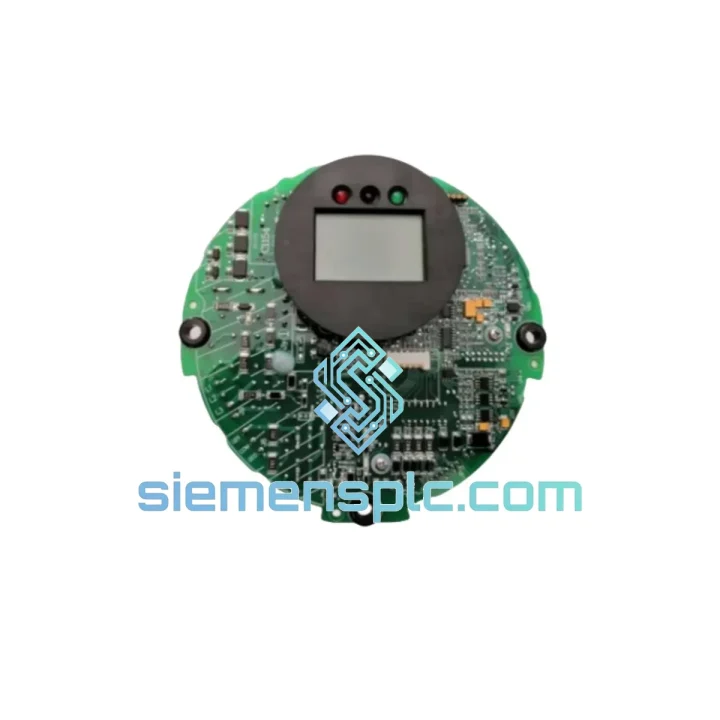

Rotork MOD-6G Actuator Control Module – IQ/IQT Series

Rotork MOD-6G Main PCB: Central Control Architecture for IQ/IQT Series Electric Actuators

The Rotork MOD-6G is the primary printed circuit board assembly that governs all closed-loop control, position feedback processing, torque monitoring, and field-bus communication functions within the Rotork IQ and IQT series of electric actuators. Unlike peripheral interface cards, the MOD-6G occupies the functional core of the actuator’s electronic enclosure, acting as the arbitration layer between the motor drive stage, the absolute encoder subsystem, and the external control network. Its removal or failure renders the actuator inoperable; its correct specification and sourcing are therefore non-negotiable in any maintenance or retrofit scenario.

In a typical IQ-series actuator, the control loop executes at a fixed scan rate, continuously comparing the demanded position signal — received via hardwired 4–20 mA, HART, Modbus RTU, or Profibus DP depending on the fitted communication card — against the absolute position value derived from the multi-turn encoder. The MOD-6G hosts the microcontroller that runs this comparison, generates the motor direction and speed commands, and simultaneously monitors phase current to enforce the torque limit set by the mechanical torque switch or the electronic torque trip threshold stored in non-volatile memory. This dual-path torque protection (mechanical + electronic) is a deliberate redundancy architecture that prevents valve seat damage under stall conditions.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The MOD-6G’s PCB layout reflects a deliberate separation between the high-current motor interface zone and the low-level signal processing zone, with a ground-plane split that minimizes conducted noise coupling from the motor drive stage into the microcontroller’s ADC reference rail. This layout discipline is critical in actuator environments where the motor can draw 10–30 A during torque-limited stall events, generating significant di/dt transients on the shared power bus.

EMC Design: The board incorporates common-mode chokes on all external signal lines entering the PCB, suppressing differential and common-mode interference in the 150 kHz–30 MHz range consistent with EN 61000-4-6 conducted immunity requirements. Transient voltage suppressors (TVS diodes) rated at ±1.5 kV are placed at the boundary of every I/O connector, providing a first line of defense against IEC 61000-4-5 surge events — a realistic threat in outdoor pipeline installations where lightning-induced surges propagate along cable shields.

Absolute Encoder Interface: The MOD-6G interfaces with Rotork’s proprietary multi-turn absolute encoder via a synchronous serial interface. Because the encoder retains position data through power cycles without battery backup (using a mechanical gear train and capacitive energy storage), the MOD-6G can read a valid position value within 50 ms of power-on, eliminating the homing cycle that would otherwise be required with incremental encoders. This is operationally significant in emergency shutdown (ESD) scenarios where the actuator must respond immediately upon power restoration.

Torque Monitoring Architecture: Phase current is sampled at a rate sufficient to detect stall conditions within one motor electrical cycle. The MOD-6G compares the measured torque against two independently configurable thresholds: an open-direction limit and a close-direction limit, each stored in EEPROM. If either threshold is exceeded for a configurable dwell time (typically 0.5–2 s), the board de-energizes the motor contactor and logs a torque trip event with a timestamp to the internal event log. This event log, accessible via the Rotork IQ-Insight configuration tool, provides a forensic record of up to 1,000 events — invaluable for root-cause analysis of valve seat damage or mechanical binding incidents.

Redundancy Arbitration: In dual-redundant actuator configurations, the MOD-6G participates in a heartbeat arbitration scheme over the internal backplane bus. If the primary control board fails to assert its heartbeat within the watchdog timeout window, the standby board assumes control without interrupting the position loop. The switchover time is deterministic and bounded, ensuring that the actuator remains responsive during board-level faults.

System Integration Benefits

• Deterministic Position Loop Execution: The MOD-6G runs its position control algorithm at a fixed, hardware-timed interrupt rate, ensuring that loop execution is not subject to operating system scheduling jitter. This determinism is essential in modulating control applications where valve position must track a continuously varying setpoint.
• Power-Loss Position Retention: Absolute encoder architecture means the board reads a valid position immediately on power restoration, with no homing sequence required. This eliminates a common failure mode in incremental-encoder-based actuators where power interruptions cause position loss and require manual re-commissioning.
• Granular Torque Diagnostics: Independent open and close torque thresholds, each configurable to 1% resolution, allow maintenance engineers to detect early-stage mechanical degradation (increasing breakaway torque) before it escalates to a trip event or valve damage.
• 1,000-Event Forensic Log: Timestamped event logging with power-loss-safe EEPROM storage provides a complete operational history accessible without removing the actuator from service, reducing diagnostic time from hours to minutes.
• Multi-Protocol Communication Readiness: The daughter-card slot architecture means the MOD-6G supports field-bus migration (e.g., from Modbus RTU to Profibus DP or HART) by swapping the communication card only, without replacing the main control board. This protects the capital investment in the MOD-6G across control system upgrades.
• Dual-Path Torque Protection: The combination of electronic torque monitoring on the MOD-6G and the mechanical torque switch provides two independent protection layers, satisfying SIL-rated safety function requirements in process safety applications.
• IP68 Environmental Compatibility: The board is designed to operate within Rotork’s IP68-rated enclosures, making it suitable for subsea, buried, and wash-down environments without additional protective measures.
• Plug-and-Play Configuration Transfer: When replacing a MOD-6G, the actuator’s configuration (position limits, torque limits, control mode, tag name) can be transferred from the old board to the new board using the Rotork IQ-Insight tool via the infrared interface, eliminating manual re-entry of parameters and reducing commissioning time to under 15 minutes in most cases.
• Watchdog-Protected Firmware Execution: An independent hardware watchdog timer resets the microcontroller if firmware execution stalls, preventing the actuator from remaining in an indeterminate state during a software fault — a critical safety behavior in unmanned remote installations.
• Backward Compatibility: The MOD-6G is designed to be backward-compatible with earlier IQ-series actuator mechanical frames, allowing it to be used as a direct replacement in legacy installations without mechanical modification.

Quality Assurance & Global Logistics

Every MOD-6G unit supplied through siemensplc.com is sourced from verified Rotork distribution channels and undergoes a structured pre-shipment inspection protocol. Visual inspection confirms PCB component integrity, connector condition, and label authenticity against Rotork’s published part marking standards. Electrical continuity verification is performed on all connector pins prior to packaging. Each unit is shipped in anti-static packaging with a tamper-evident seal, accompanied by a packing list and, upon request, a certificate of conformance and supplier traceability record.

Logistics operations are managed from Xiamen, China, a major export hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and consolidated sea freight services. In-stock units are typically dispatched within 1–3 business days of order confirmation. Full export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every international shipment to facilitate customs clearance in the destination country. For procurement teams operating under regulated purchasing procedures, additional documentation (material safety data sheets, RoHS declarations, ATEX certificates where applicable) is available upon request.

Volume orders and blanket purchase agreements are accommodated with dedicated account management and priority allocation from available stock. Lead times for non-stock quantities are communicated within 24 hours of inquiry.
