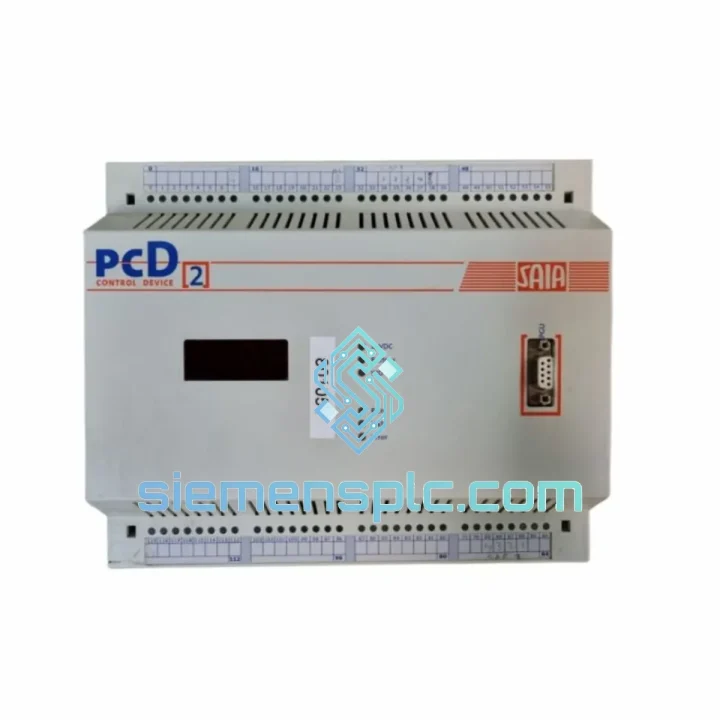

SAIA PCD2.M120 Programmable Logic Controller – PCD2 Series

SAIA PCD2.M120 – Modular PLC Base Unit for Deterministic Industrial Process Control

The SAIA PCD2.M120 is a mid-range programmable logic controller base unit within the PCD2 platform, engineered by SAIA-Burgess Controls for continuous-duty industrial automation. Its architecture is built around a 16-bit RISC-class CPU core executing the proprietary SAIA instruction set at a cycle time that sustains deterministic scan performance across mixed I/O configurations. The backplane bus operates as a synchronous parallel interface, transferring data between the CPU and plug-in I/O modules at fixed arbitration intervals — a design that eliminates the variable latency inherent in serial fieldbus-coupled expansion architectures. This makes the PCD2.M120 particularly suited to time-critical control loops where jitter in the I/O update cycle directly affects process stability.

Within the PCD2 family, the M120 occupies the entry-to-mid segment, offering a balanced ratio of onboard resources to expansion capacity. The base unit provides a defined number of flag registers, data blocks, and timer/counter objects addressable directly in the IEC 61131-3 programming environment via SAIA PG5. The memory architecture separates program code from data RAM, with battery-backed retention for retentive variables — a requirement in applications such as batch process controllers and energy management systems where state persistence across power cycles is mandatory.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PCD2.M120 backplane implements a synchronous arbitration scheme between the CPU module and installed plug-in cards. Unlike distributed I/O architectures that rely on fieldbus polling cycles with variable response windows, the PCD2 backplane grants each slot a fixed time slice within the CPU scan cycle. This means that regardless of the number of populated expansion slots, the I/O update latency remains bounded — a property that directly supports closed-loop control applications where the controller must respond to sensor state changes within a defined window.

The CPU’s memory map partitions program code, data RAM, and I/O image registers into separate address spaces. The I/O image table is refreshed at the start of each scan cycle in a single atomic operation, ensuring that all input values read during program execution reflect a consistent snapshot of the physical process state at the same point in time. This eliminates the class of race conditions that can occur in controllers that read I/O on-demand during program execution.

EMC immunity in the PCD2.M120 is addressed at the hardware level through optocoupler isolation on digital input channels, which provides galvanic separation between field wiring and the controller’s internal logic bus. This isolation barrier attenuates common-mode noise and transient voltages induced by inductive loads — motor contactors, solenoid valves, relay coils — that are characteristic of industrial panel environments. The power supply section incorporates filtering stages designed to suppress conducted emissions in accordance with EN 61000-4 series test levels, allowing the unit to operate in environments with significant electromagnetic interference without requiring additional external filtering.

The watchdog timer circuit operates independently of the main CPU clock domain. If the application program fails to service the watchdog within the configured timeout interval — due to an infinite loop, stack overflow, or hardware fault — the watchdog asserts a hardware reset, driving all outputs to their defined safe states. This fail-safe behavior is a fundamental requirement in safety-relevant applications and is implemented in hardware rather than software to ensure it cannot be defeated by a software fault condition.

System Integration Benefits

• Deterministic Scan Cycle: Fixed-interval backplane arbitration ensures bounded I/O update latency, supporting closed-loop control applications with defined response time requirements.
• Consistent I/O Image Snapshot: Atomic I/O table refresh at scan start eliminates race conditions between input reads and program execution, improving control logic reliability.
• Galvanic Isolation on Digital Inputs: Optocoupler barriers on field-side inputs protect the CPU logic bus from transient voltages and common-mode noise generated by inductive industrial loads.
• Hardware Watchdog Independence: Watchdog circuit operates outside the CPU clock domain, guaranteeing safe-state output assertion on any software or hardware fault condition.
• Multi-Protocol Communication: Native S-Bus with optional Profibus DP and Ethernet modules enables integration into multi-vendor SCADA, DCS, and BMS environments without gateway hardware.
• IEC 61131-3 Compliance: Full support for LD, FBD, ST, IL, and SFC programming languages via SAIA PG5 reduces engineering time and enables structured code reuse across projects.
• Battery-Backed Retentive Memory: Retentive flags, timers, and data blocks survive power interruptions, preserving process state in batch control and energy management applications.
• Modular Expansion Architecture: Plug-in I/O and communication modules allow the base unit to scale from simple discrete control to complex analog and fieldbus-integrated applications without replacing the CPU.
• Long Product Lifecycle: The PCD2 platform has maintained backward compatibility across hardware generations, protecting capital investment in existing panel designs and application software.
• Diagnostic Transparency: Onboard status LEDs and PG5 online diagnostic tools provide real-time visibility into CPU state, communication status, and I/O channel health, reducing mean time to repair in field installations.

Quality Assurance & Global Logistics

Every SAIA PCD2.M120 unit supplied by siemensplc.com is sourced through verified supply channels and subjected to a structured pre-shipment inspection process. Physical inspection covers housing integrity, connector pin condition, label authenticity, and serial number traceability against manufacturer records. Units are stored in climate-controlled conditions and packed in anti-static (ESD) protective bags with cushioned outer packaging to prevent mechanical and electrostatic damage during international transit.

Shipments originate from our warehouse in Xiamen, China, with dispatch via DHL Express, FedEx International Priority, or UPS Worldwide Express — all services providing door-to-door tracking and typically achieving delivery within 3 to 7 business days to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East. Export documentation, including commercial invoices, packing lists, and certificates of origin, is prepared in compliance with destination country customs requirements. For orders requiring specific import declarations or HS code documentation, our logistics team coordinates directly with the freight carrier to minimize customs clearance delays.

All units are covered by a 12-month warranty from the date of shipment. Warranty claims are processed through direct communication with our technical team, who assess the reported fault and coordinate replacement or repair as appropriate. We do not route warranty cases through third-party intermediaries — the merchant communicates directly with our engineering-qualified staff throughout the resolution process.
