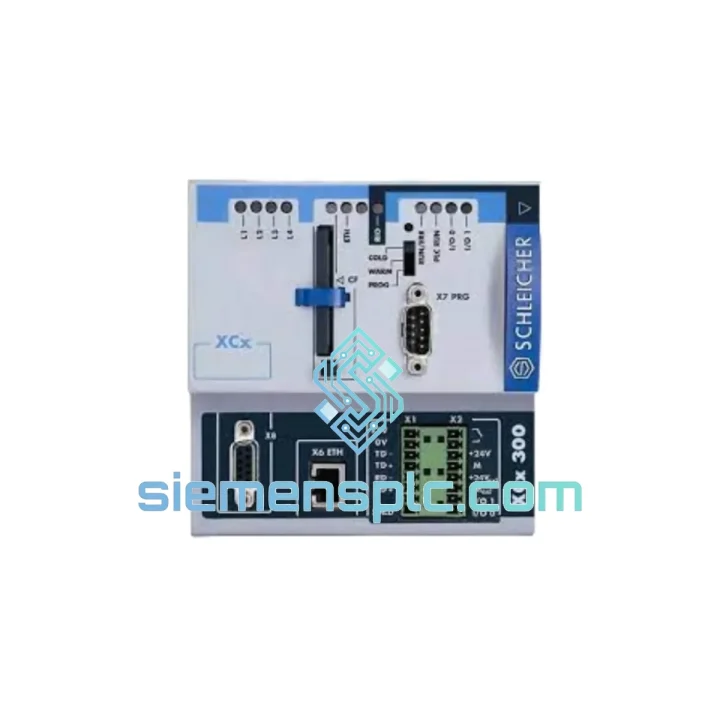

SCHLEICHER XCX300 XCN300E PLC CPU Module – XCx300 Series

SCHLEICHER XCX300 XCN300E: Central Processing Unit for XCx300 Modular PLC Architecture

The SCHLEICHER XCX300 XCN300E is the program execution core of the XCx300 modular PLC platform — a rack-based control architecture developed by SCHLEICHER Electronic GmbH (Germany) for deterministic, multi-loop industrial automation. In a distributed control topology, the XCN300E occupies the CPU slot of the XCx300 backplane and assumes sole authority over scan-cycle scheduling, I/O arbitration, fieldbus master coordination, and application program execution. Its role is not peripheral: every control decision in the rack passes through this module’s processing pipeline.

Unlike single-board controllers that consolidate I/O and logic on one substrate, the XCx300 architecture separates the CPU from I/O expansion modules via a high-speed proprietary backplane bus. This physical separation allows the XCN300E to maintain a fixed, configurable scan cycle independent of I/O expansion depth — a critical property for motion-synchronized and process-critical applications where jitter in the control loop directly translates to product quality deviation or equipment fault.

The XCN300E integrates dedicated communication processors for PROFIBUS-DP and CANopen fieldbus protocols. These processors operate asynchronously from the main application CPU, handling protocol framing, token management, and slave polling without consuming application scan-cycle budget. The result is a deterministic I/O response time that does not degrade as fieldbus node count increases — a measurable advantage over architectures that handle fieldbus communication within the main CPU interrupt context.

For system integrators managing retrofit projects or multi-generation XCx300 installations, the XCN300E maintains backward compatibility with the XCx300 backplane mechanical and electrical interface. Firmware version alignment with existing I/O modules should be confirmed prior to deployment in mixed-generation racks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Backplane Bus Architecture and Cycle-Time Determinism

The XCx300 backplane operates as a synchronous, slot-addressed parallel bus. The XCN300E acts as the bus master, issuing timed read/write transactions to each I/O module slot in a fixed sequence per scan cycle. Because the bus arbitration logic is implemented in dedicated hardware rather than software polling, slot-access latency is bounded and repeatable — typically sub-millisecond per slot. This architecture eliminates the non-deterministic latency introduced by software-driven I/O polling loops common in lower-cost PLC designs.

Dual-Processor Communication Offload

PROFIBUS-DP and CANopen protocol stacks execute on independent communication co-processors within the XCN300E. The main application CPU issues fieldbus data exchange commands via an internal shared-memory interface; the co-processors handle all protocol-layer timing, CRC generation, and error recovery autonomously. This architecture ensures that a PROFIBUS network event — such as a slave timeout or token loss — does not introduce jitter into the application scan cycle. The main CPU reads fieldbus data from the shared-memory image at the start of each scan, maintaining a consistent process image regardless of fieldbus transaction timing.

EMC Design and Signal Integrity

The XCN300E PCB layout follows IEC 61000-4 series EMC design practices. Power supply decoupling is implemented at the module level with multi-stage LC filtering on the 24 V DC input rail. High-frequency digital signals on the backplane interface are routed with controlled impedance and guarded by ground planes on adjacent PCB layers, reducing radiated emissions and susceptibility to conducted interference from adjacent power electronics in the control cabinet. The module housing provides additional shielding continuity through the rack frame ground connection.

Non-Volatile Program and Data Retention

Application programs and retain-marked data variables are stored in non-volatile memory (Flash/EEPROM, model-dependent). Power loss during program execution does not corrupt the stored application; on power restoration, the CPU performs a self-test sequence, validates the stored program checksum, and resumes execution from the configured startup mode (warm restart or cold restart) without operator intervention.

System Integration Benefits

• Deterministic Scan-Cycle Execution: Hardware-arbitrated backplane bus delivers bounded I/O access latency, enabling reliable control of time-critical processes such as multi-axis motion synchronization and high-speed packaging lines.
• Fieldbus Master Without External Gateway: Native PROFIBUS-DP and CANopen master capability eliminates the cost, wiring complexity, and additional failure point of external fieldbus gateway modules.
• Scalable I/O Architecture: The XCx300 backplane supports expansion with digital, analog, and specialty I/O modules without modifying the CPU configuration or application program structure.
• IEC 61131-3 Five-Language Support: Full compliance with Ladder Diagram, Function Block Diagram, Structured Text, Instruction List, and Sequential Function Chart enables code reuse and migration from other IEC-compliant platforms.
• Diagnostic Transparency: The XCN300E exposes module-level diagnostic data — including I/O module fault codes, fieldbus slave status, and CPU load metrics — via the programming interface and, where applicable, over Ethernet to SCADA systems.
• Backward Compatibility: Mechanical and electrical compatibility with the XCx300 backplane supports direct replacement in existing installations, reducing retrofit engineering time and risk.
• Remote Programming and Monitoring: Ethernet-equipped variants support online program modification, variable monitoring, and firmware updates without physical access to the control cabinet, reducing maintenance downtime.
• Long-Term Parts Availability: siemensplc.com maintains verified OEM stock of XCx300-series modules, supporting both new installations and ongoing MRO requirements for production lines with extended service life expectations.

Quality Assurance & Global Logistics

Every SCHLEICHER XCX300 XCN300E unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full part-number and batch traceability. Pre-shipment inspection includes power-on functional verification, firmware version confirmation, and physical condition audit. Original OEM packaging is preserved where available; all units are shipped in anti-static ESD bags with foam cushioning regardless of outer packaging condition.

Shipments originate from our warehouse in Xiamen, China. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international orders. DHL Express and FedEx International Priority are the primary carriers for time-sensitive orders, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. Sea freight consolidation is available for bulk orders where lead time permits. All shipments are fully insured and tracked from dispatch to delivery confirmation.

A 12-month warranty applies from the date of shipment. Warranty coverage includes functional failure under normal operating conditions. Units exhibiting defects are subject to replacement or credit at our discretion following technical evaluation. Batch documentation and inspection records are available upon request for regulated-industry procurement processes.
