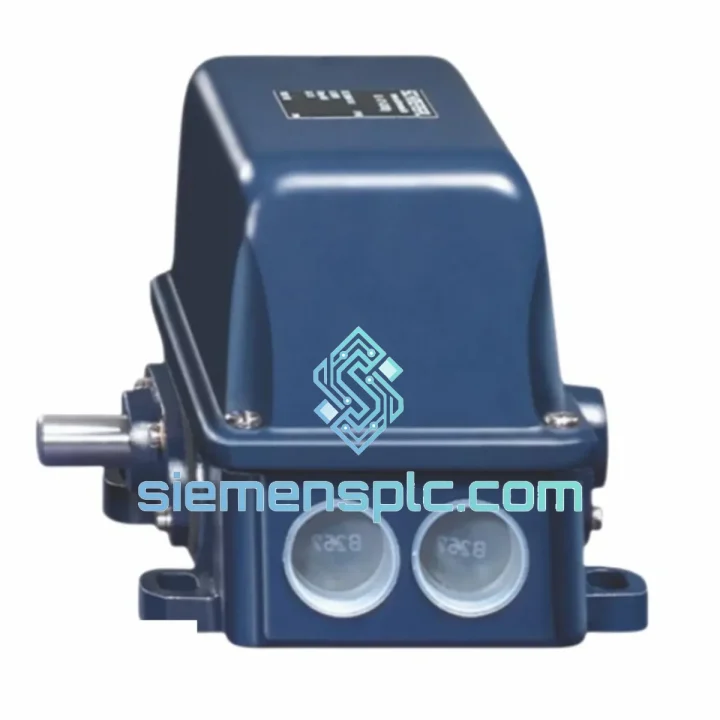

SCHMERSAL TA471-02/02Y-H-840 Position Switch – TA400 Series

SCHMERSAL TA471-02/02Y-H-840: Dual-Circuit Heavy-Duty Position Switch for Safety-Critical Control Loops

In machine safety architecture, the position switch occupies the first layer of the physical interlock chain. Its contact state is the raw binary signal that safety relays, F-PLCs, and safety-rated I/O modules consume to determine whether a guard door, access panel, or mechanical stop is in a defined safe position. A failure at this layer — whether from contact welding, mechanical wear, or ingress contamination — propagates directly into the safety function and can invalidate the entire risk-reduction measure. The SCHMERSAL TA471-02/02Y-H-840 is a heavy-duty electromechanical position switch from the TA400 series, designed to operate as a reliable, long-service-life sensor node in exactly these conditions.

The TA471-02/02Y-H-840 carries a dual-circuit contact arrangement: two normally-closed (NC) contacts and two normally-open (NO) contacts, encoded in the part number as 02/02Y. The H suffix designates a heavy-duty roller lever actuator, and the 840 suffix specifies the cable entry and conduit interface configuration. This combination makes the device directly applicable to guard door interlocking on robotic cells, end-of-travel detection on hydraulic and pneumatic actuators, and position feedback on conveyor diverters and automated gates — all environments where the switch must survive repeated mechanical actuation cycles, exposure to coolant mist, metal swarf, and cleaning agents, while maintaining contact integrity across the full service interval.

The TA400 series is manufactured to IEC/EN 60947-5-1, the governing standard for low-voltage control circuit devices and switching elements. The positive-opening contact mechanism — defined in Annex K of that standard — is a mandatory design feature for switches used in safety functions at Category 1 and above per ISO 13849-1. Positive opening means that contact separation is achieved by direct mechanical force from the actuator, not by spring return alone. If a contact welds closed under fault conditions, the actuator mechanism physically breaks the weld on the next actuation cycle, preventing a latent failure from going undetected.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The TA471-02/02Y-H-840 is built around a cam-driven contact bridge mechanism housed within a die-cast zinc enclosure. Understanding the internal logic of this design is essential for engineers specifying it in safety-rated control loops.

Positive-Opening Contact Mechanism: The NC contacts in the TA471 are not spring-return devices. The actuator cam directly drives the contact bridge into the open position through a rigid mechanical linkage. This eliminates the failure mode where a fatigued return spring fails to open a welded contact. Under IEC 60947-5-1 Annex K, this mechanism qualifies the NC contacts as positive-opening, a prerequisite for use in safety circuits at Category 1, 2, 3, and 4 per ISO 13849-1, depending on the overall system architecture and achieved PL/SIL.

Dual-Circuit Architecture (2NC + 2NO): The 02/02Y contact designation provides two independent NC circuits and two independent NO circuits within a single housing. In a dual-channel safety relay input configuration, both NC contacts are wired to separate input channels. The safety relay monitors cross-channel discrepancy: if one channel opens and the other does not within a defined time window, the relay detects a fault and locks out. This architecture supports Category 3 and Category 4 safety functions without requiring two separate switch housings, reducing panel wiring complexity and mounting footprint.

EMC and Electrical Noise Immunity: The die-cast zinc housing provides inherent shielding against radiated electromagnetic interference. In environments with variable-frequency drives, servo amplifiers, and high-current bus bars — all common in the machine types where the TA471 is deployed — the metallic enclosure attenuates field coupling into the switch wiring. The rated impulse withstand voltage of 6 kV (Uimp) ensures the switch survives transient overvoltages from inductive load switching on the same control circuit, without contact breakdown or insulation failure.

IP67 Sealing Architecture: The enclosure achieves IP67 through a combination of a precision-machined housing mating surface, a continuous elastomeric gasket, and sealed cable entry points. The actuator shaft penetration is sealed with a dynamic lip seal rated for the full operating temperature range. This sealing system maintains integrity under repeated thermal cycling, which is critical in applications where the switch is exposed to hot washdown water followed by cold ambient conditions — a common cycle in food processing and pharmaceutical manufacturing.

Actuator Geometry (H — Heavy Roller Lever): The H-type actuator is a reinforced roller lever with a larger roller diameter and a heavier-gauge lever arm compared to standard variants. This geometry increases the operating force tolerance and reduces the sensitivity to actuator misalignment. In applications where the actuating cam or dog is mounted on a moving guard door or carriage, minor positional variation due to wear or thermal expansion does not cause missed actuation events. The roller bearing reduces friction and wear at the contact point, extending mechanical service life in high-cycle applications.

System Integration Benefits

The TA471-02/02Y-H-840 delivers measurable advantages across the control system stack when integrated into a machine safety architecture:

• Direct dual-channel safety relay compatibility: The 2NC contact pair maps directly to the dual-channel input terminals of SCHMERSAL SRB series, Pilz PNOZ X/XV, Sick UE series, and Omron G9SA safety relays without additional signal conditioning or interface modules.
• F-PLC digital safety input compatibility: The NC contacts can be wired to Siemens ET 200SP F-DI modules, Allen-Bradley 1734-IB8S Point Guard I/O, and Beckhoff EL1904 TwinSAFE input terminals. The switch’s electrical characteristics (Ui 500 V, Ithe 10 A) are within the input voltage and current ratings of all standard 24 V DC safety I/O modules.
• Deterministic switching response: Electromechanical contact switching eliminates the propagation delay variability associated with solid-state proximity sensors. Contact state change is immediate upon actuator displacement past the operating point, providing a deterministic input signal to the safety PLC scan cycle.
• Diagnostic transparency via cross-channel monitoring: The dual NC circuit enables the safety relay or F-PLC to perform continuous cross-channel plausibility checks. Any single-point failure — contact weld, open circuit, or short to supply — is detected within one machine cycle, supporting the diagnostic coverage requirements for Category 3 and Category 4 architectures.
• No sensor power supply required: Unlike inductive proximity sensors or RFID safety switches, the TA471 is a passive electromechanical device. It requires no 24 V DC sensor supply, eliminating a potential power supply fault from the safety circuit and simplifying the energy isolation analysis during LOTO procedures.
• Reduced wiring complexity in multi-switch series circuits: The NO contacts can be used simultaneously for machine status indication or PLC standard I/O feedback, allowing a single switch to serve both the safety function (NC to safety relay) and the operational function (NO to standard PLC input) without additional hardware.
• Mechanical pre-travel and over-travel tolerance: The TA400 series actuator mechanism accommodates defined pre-travel and over-travel ranges, allowing the switch to be mounted with standard mechanical tolerances without requiring precision shimming. This reduces installation time and simplifies maintenance replacement in the field.
• Long service life reduces unplanned downtime: With a rated mechanical durability of ≥ 10 × 10⁶ cycles and electrical durability of ≥ 1 × 10⁶ cycles at AC-15 rating, the TA471 is designed for high-cycle applications. In a machine running two shifts per day with 10 guard door operations per hour, the mechanical service life exceeds 13 years before the rated cycle count is reached, minimizing planned maintenance intervals and unplanned replacement events.

Quality Assurance & Global Logistics

Every SCHMERSAL TA471-02/02Y-H-840 unit supplied by siemensplc.com is sourced through verified, traceable supply channels. SCHMERSAL manufactures the TA400 series in Germany under ISO 9001-certified production processes, with 100% functional testing of contact continuity, insulation resistance, and actuator mechanism operation prior to shipment from the factory. Each unit carries the CE marking and is accompanied by the manufacturer’s declaration of conformity to IEC/EN 60947-5-1.

At siemensplc.com, incoming stock is subject to a secondary inspection protocol: part number label verification against the purchase order, visual inspection of housing and actuator integrity, and cross-reference of the manufacturer’s batch code against known authentic production runs. This process eliminates counterfeit and grey-market units before they enter our inventory.

Our logistics operation is based in Xiamen, China — a major international trade hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and TNT Economy Express services. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for every shipment. For customers in the EU, we provide the CE declaration of conformity and SCHMERSAL datasheet to support your machinery directive compliance documentation. For customers in North America, we provide HS code classification documentation to facilitate customs clearance. Air freight to major hubs in Europe, North America, Southeast Asia, and the Middle East typically achieves transit times of 3–7 business days from Xiamen. Sea freight consolidation is available for large-volume orders where lead time permits.

All orders are covered by a 12-month warranty from the date of shipment. Warranty claims are handled directly by our technical team, with replacement units dispatched upon confirmation of the defect. We maintain buffer stock of high-velocity SCHMERSAL TA400 series parts to support warranty replacements and emergency MRO orders without extended lead times.
