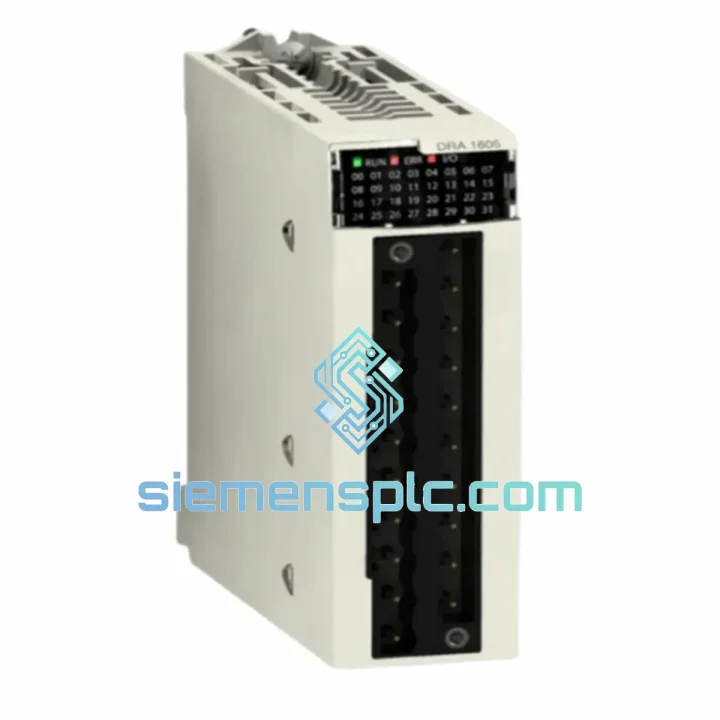

Schneider BMXDRA1605 Relay Output Module

BMXDRA1605 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your M340 rack just threw a relay output fault. The line is stopped. Maintenance is on the phone. You need a Schneider Electric BMXDRA1605 — not in three weeks, not “subject to availability” — now. We stock it in Xiamen, it clears customs fast, and DHL has it at your door before your next shift change. That’s the only pitch you need.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a BMXDRA1605 in a live M340 system is straightforward if you follow the sequence. Skip a step and you’ll spend an extra hour chasing a ghost fault.

Common fault indicators before replacement:

• ERR LED solid red on module — internal relay driver failure or blown fuse on the field side. Check the 24 V supply to the terminal block first before condemning the module.
• I/O LED flashing but output not switching — relay coil energized but contact welded open. Measure continuity across the NO contact with a multimeter while forcing the output in Unity Pro / Control Expert.
• Sporadic channel dropouts under load — contact bounce or coil degradation from inductive load switching without snubber circuits. Check for arc damage on the terminal block pins.
• Module not recognized after rack power-up — X-Bus connector contamination or bent backplane pins. Reseat the module; if fault persists, the module is the culprit.

Step-by-step hot-swap replacement procedure:

1. In Control Expert, navigate to PLC → Configuration → I/O Map and note the slot address of the BMXDRA1605 (e.g., Rack 0, Slot 4).
2. Set all 16 output channels to forced-OFF state via the animation table before touching the module — never yank a relay module with live inductive loads.
3. Disconnect the BMXFTB2800 terminal block by pressing the orange latch and pulling straight out. Label the wiring if it isn’t already labeled — you’ll thank yourself later.
4. Press the module ejector lever downward and slide the BMXDRA1605 out of the rack slot.
5. Inspect the X-Bus gold fingers on the replacement module. Clean with IPA if there’s any oxidation.
6. Slide the new module in until the ejector clicks. Reconnect the terminal block.
7. No DIP switches, no address configuration required — the BMXDRA1605 is auto-addressed by the M340 CPU via the X-Bus. The CPU reads the module’s electronic ID on the next rack scan.
8. In Control Expert, go online and run a Rebuild All if the module type changed. If it’s a like-for-like swap, the configuration is retained in the CPU — no download needed.
9. Release the forced outputs and verify each channel switches correctly using the animation table. Check the ERR LED — it should be off within two scan cycles.
10. Document the replacement: date, slot, serial number of the failed unit, and root cause if identified.

Firmware note: The BMXDRA1605 carries no user-upgradeable firmware. The module’s internal logic is fixed at manufacture. Ensure your CPU firmware (BMX P34 series) is at a revision compatible with your Unity Pro / Control Expert project version — mismatched CPU firmware can cause I/O configuration errors unrelated to the output module itself.

Reliability in Harsh Conditions

Industrial relay output modules fail for predictable reasons: heat cycling, vibration fatigue, and moisture ingress. The BMXDRA1605 is engineered to resist all three — but knowing the limits keeps your replacement intervals realistic.

Thermal performance: The module is rated 0 °C to +60 °C continuous operation. In practice, relay coil self-heating adds 5–10 °C above ambient inside a sealed enclosure. If your panel runs hot, derate the per-channel current below the 2 A maximum and ensure the rack has adequate forced-air ventilation. Schneider’s derating curves in the M340 hardware guide are worth printing and taping inside the panel door.

Vibration and shock: The M340 platform meets IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-27 (shock) test standards. The BMXDRA1605’s relay contacts are the most mechanically sensitive component — sustained vibration above 2 g at resonant frequencies can cause intermittent contact chatter. In high-vibration environments (compressor rooms, mobile equipment), inspect relay contact resistance annually and consider solid-state output alternatives for critical channels.

Humidity and condensation: IP20 protection means the module is not sealed against moisture. In humid coastal or offshore environments, ensure the enclosure maintains positive pressure with filtered, dried air. Condensation on the PCB is the leading cause of premature relay driver IC failure — a failure mode that looks identical to a blown output channel but is actually a corroded trace.

Inductive load management: Every relay contact driving a solenoid, contactor coil, or motor starter should have a snubber (RC network for AC loads) or freewheeling diode (DC loads) fitted at the load terminals. Without suppression, each switching event generates a voltage spike that degrades the relay contact surface over thousands of cycles. This is the single most common cause of BMXDRA1605 premature failure in the field — and it’s entirely preventable.

Global Express Logistics

We operate from a bonded export warehouse in Xiamen, Fujian, China — one of the most efficient export hubs on the mainland, with direct DHL and FedEx gateway access and a streamlined customs clearance process for industrial electronics.

Standard dispatch timeline:

• Order confirmed before 14:00 CST → same-day dispatch, DHL/FedEx pickup that evening.
• Order confirmed after 14:00 CST → next business day dispatch.
• Transit times: Southeast Asia 1–3 days | Middle East 3–5 days | Europe 3–5 days | Americas 4–6 days | Africa 5–8 days.

Shipping options:

• DHL Express Worldwide — preferred for urgent single-unit replacements. Full tracking, door-to-door, customs brokerage included.
• FedEx International Priority — strong coverage in the Americas and Europe, competitive on multi-unit shipments.
• UPS Worldwide Express — available on request for specific destination preferences.
• Sea freight / air freight consolidation — for bulk orders of 10+ units where lead time allows.

Export documentation provided with every shipment: commercial invoice, packing list, certificate of origin (Form E for ASEAN preferential tariff where applicable), and HS code declaration (8537.10). For projects requiring an end-user certificate or import license support, contact us before ordering.

We have shipped BMXDRA1605 units to petrochemical plants in Saudi Arabia, automotive assembly lines in Mexico, water treatment facilities in Southeast Asia, and food processing plants across Europe. The logistics process is the same every time: fast, documented, and traceable.
